• Not for lifting

General: For use to connect or lengthen grade 2 chain.


WARNING!Not for lifting.

  • Finish: Galvanized.

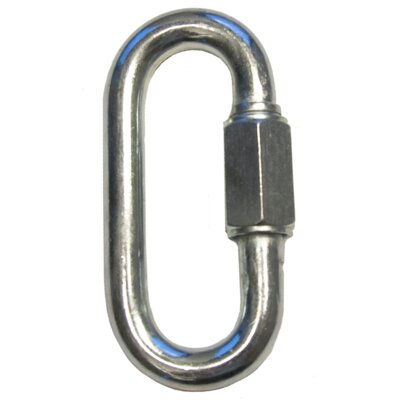

    Galvanized and Stainless steel Quick link
    Quick link stainless and galvanized measurements
    Select a row from the table below, then click the add to cart button
    Part Code Code Diameter
    mm
    A
    mm
    C
    mm
    L
    mm
    D
    mm
    Weight
    kg/100pc
    11.56QL035 RZ-3,5 3,5 10 5 29 3,5 1,2
    11.56QL040 RZ-4 4 11 5 31 4 2,1
    11.56QL050 RZ-5 5 13 6 38 5 2,2
    11.56QL060 RZ-6 6 14 7 45 6 3,6
    11.56QL080 RZ-8 8 18 10 60 8 7,8
    11.56QL090 RZ-9 9 19 11 64 9 10
    11.56QL100 RZ-10 10 20 12 69 10 14
    11.56QL120 RZ-12 12 25 15 83 12 20
