Hampidjan

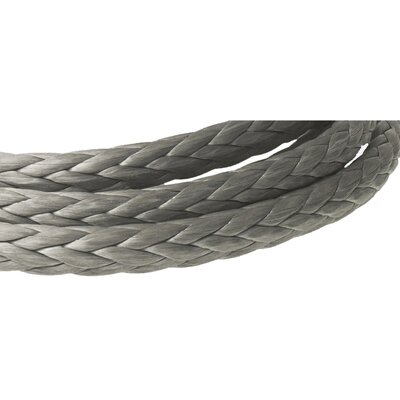

DYNICE 78 ropes are made from DSM's Dyneema® SK78 fibres. They are impregnated with Duracoat to improve resistance and endurance. High performance ropes for various applications with high strength and durability.
The main focus is on 12-strand braided ropes which have proven very popular for their roundness and smooth surface. These ropes combine good strength retention with good flexibility and dynamic properties. Termination is easy through splicing where up to 90% of linear strength is retained.

Three basic types are being offered:

  • DYNICE 78 12-strand braided rope
  • DYNICE 78 with braided cover
  • DYNICE 78 Cable rope

Design:
The 12-strand braided rope from Dyneema SK78 fibres, impregnated with Duracoat for improved abrasion resistance, has proven its reliability. Very popular for their roundness and smooth surface. The ropes are soft and flexible and easy to splice.

Properties:
Density: 0,97 g/m3
Tenacity: 3,5 N/tex.
Modulus: 120 N/tex.
Elongation: 3,7%
Melting point: 144-152ºC.
Resistance to chemicals: Excellent.
UV resistance: Good.
Flexibility: Good.

  • Material: Dyneema®
    Select a row from the table below, then click the add to cart button
    Part Code Diameter
    mm
    MBL
    ton
    MBL unspliced
    ton
    Weight in sea
    kg
    Weight
    kg/100m
    12.122911035 6 3,8 4,2 −0,18 2,3
    12.122911040 8 6 6,7 −0,3 3,8
    12.122911050 10 9,6 10,7 −0,49 6,1
    12.122911061 12 14,8 16,4 −0,75 9,3
    12.122911070 14 19,6 21,8 −1 12,5
    12.122911080 16 24,7 27,4 −1,28 16
    12.122911090 18 31,5 35 −1,66 20,7
    12.122911100 20 37,7 41,9 −2,02 25,2
    12.122911110 22 45 50 −2,45 30,5
    12.122911120 24 52 57,8 −2,86 35,6
    12.122911130 26 59,1 65,7 −3,29 41
    12.122911270 54 186,2 206,9 11,45 142,7

    MBL ton is for spliced rope
