• Not for lifting

Chain for different applications.

Standard: Dimension acc. to DIN 766.

  • Material: AISI 316.
  • Warning: Not for lifting.
  • Grade: 2
Non-certified short link chain grade 3

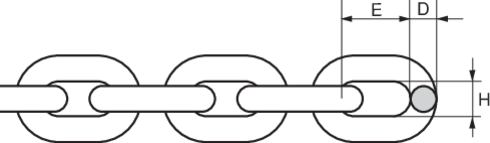

Short link chain measurements
Select a row from the table, then click the add to cart button
Part Code Chain diameter
mm
Length
m
D
mm
E
mm
H
mm
Weight
kg/m
11.60766030SR50N 3 50 3 15 5 0,3
11.60766040SR50N 4 50 4 16 6 0,32
11.60766050SR30N 5 30 5 18,5 7 0,5
11.60766060SR30N 6 30 6 18,5 8 0,75
11.60766080SR15N 8 15 8 24 10 1,4

*Please note that this product is sold only in rolls.
