General: Chain for different applications.

Standard: Dimesion acc. to DIN 763.

  • Warning: Not for lifting.
  • Grade: 2

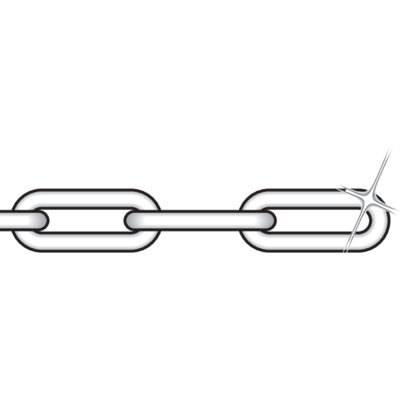

Long link stainless steel AISI 316 chain
Long link chain measurements HLM_e_225mm
Select a row from the table, then click the add to cart button
Part Code Chain diameter
mm
Length D
mm
E
mm
H
mm
Weight
kg/m
11.60763030SR50N 3 50 3 26 8 0,15
11.60763040SR50N 4 50 4 32 8 0,27
11.60763050SR30N 5 30 5 35 10 0,43
11.60763060SR30N 6 30 6 42 12 0,63
11.60763080SR15N 8 15 8 54 16 1,1
*Please note that this product is sold only in rolls.
