Thern

907 kg capacity portable Davit Crane

  • Load ratings up to 907 kg portable, heaviest part component 34,0 kg
  • Rugged and affordable

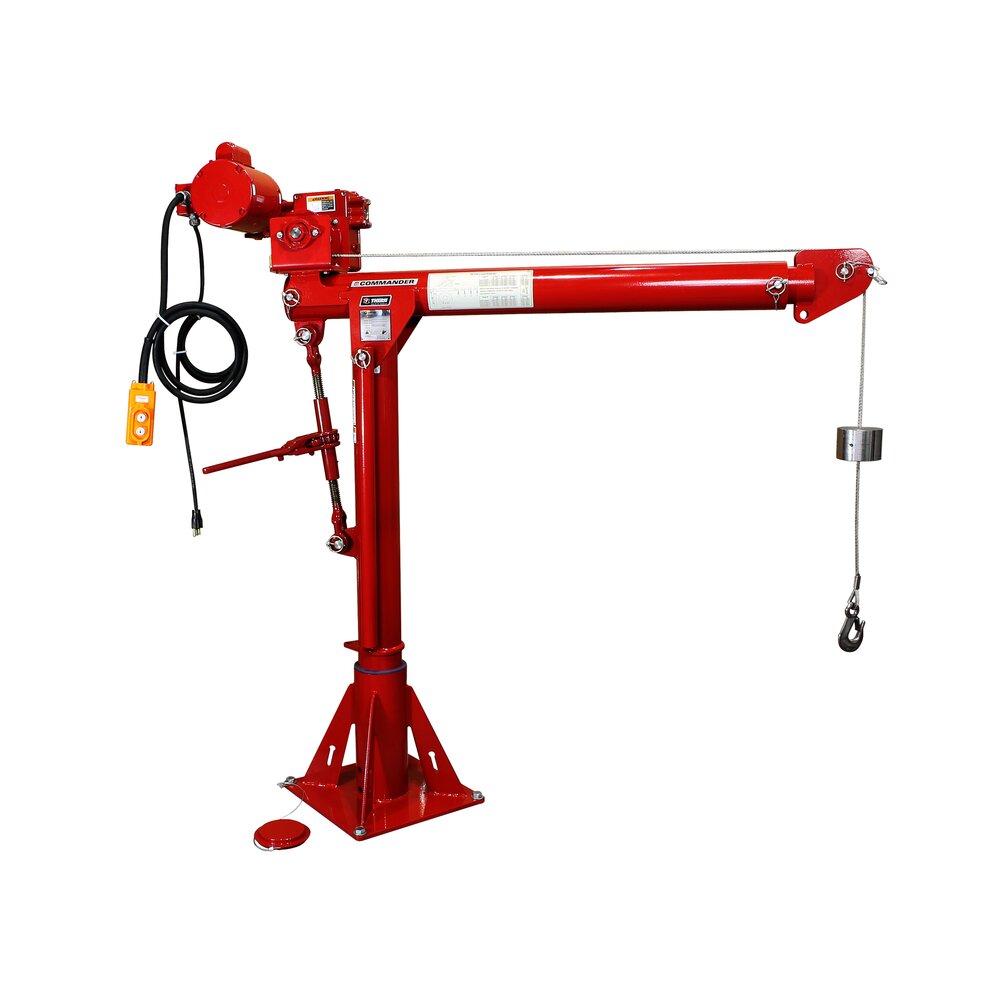

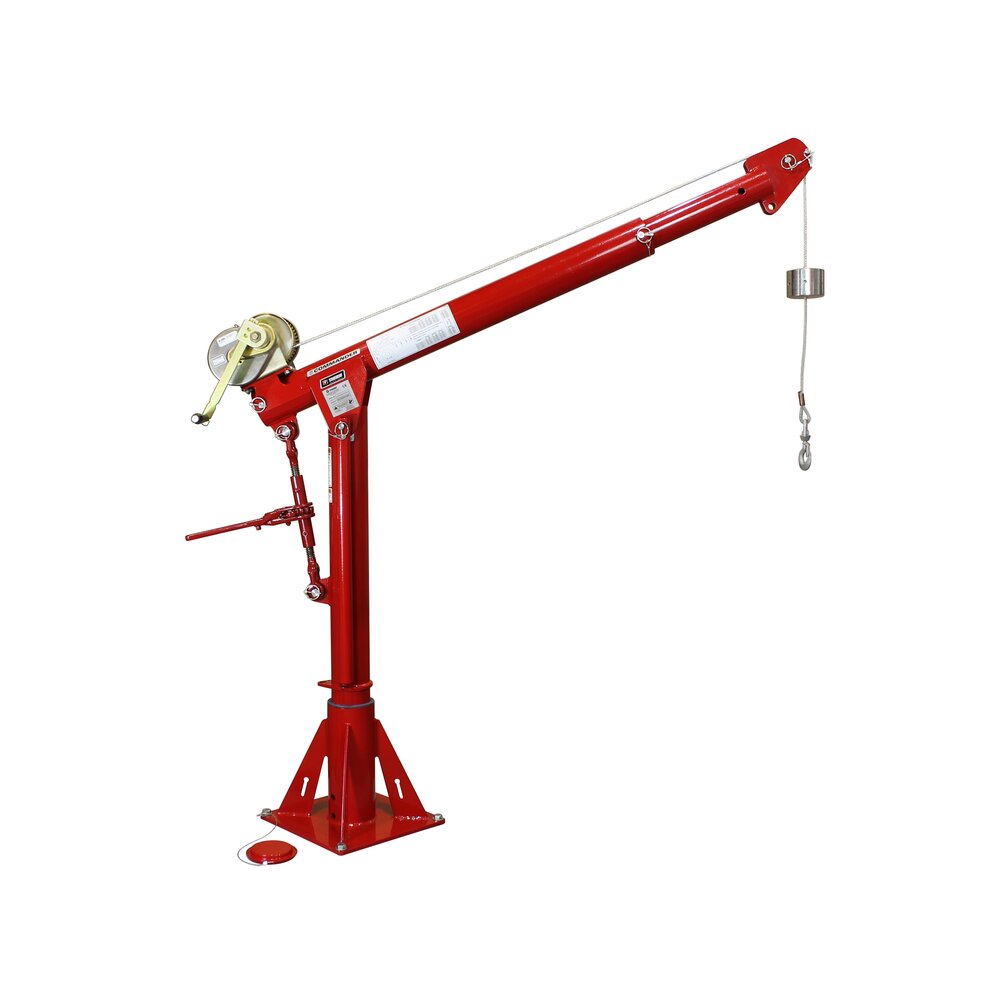

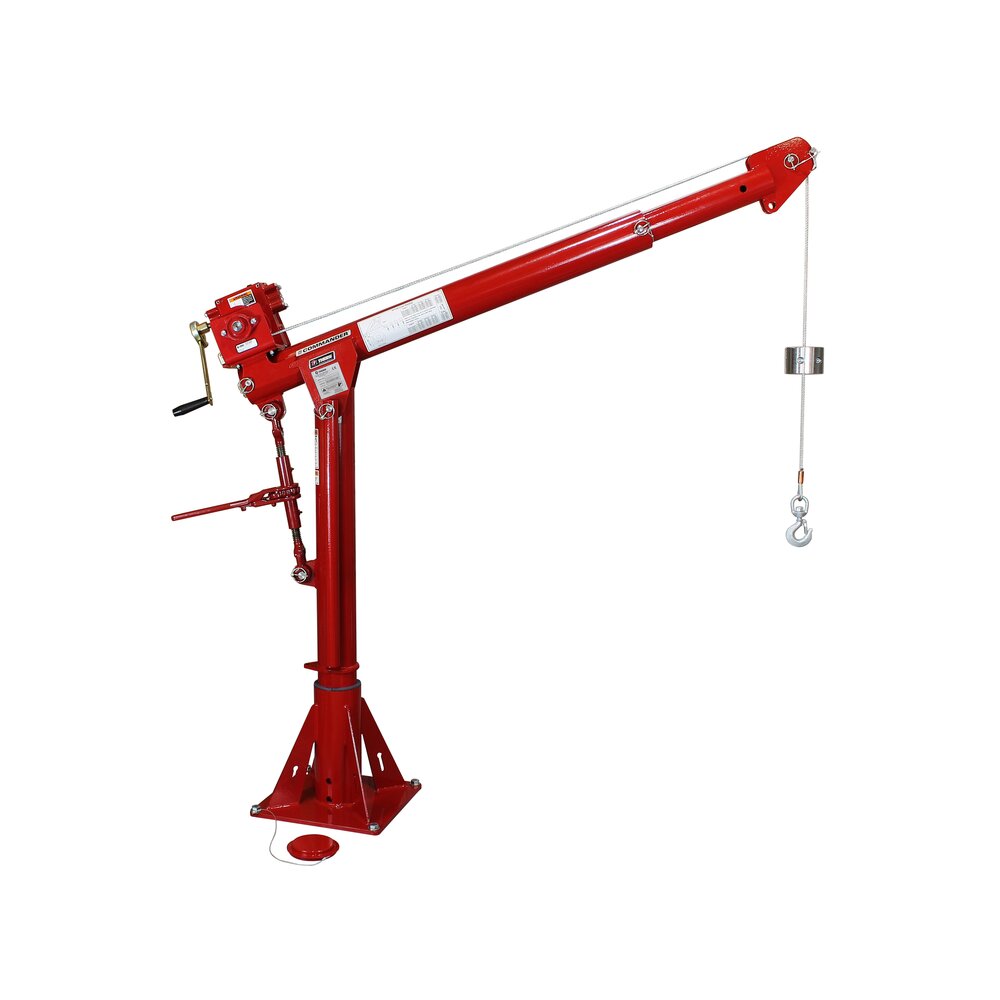

  • Manual or power winch operation
  • 360° rotation
  • Boom adjustable to meet wide range of height and reach combinations
  • Easy, No-Tools Assembly/Disassembly (all individual components less than 34,0 kg)
  • Variety of bases
  • 2-Year warranty
  • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coat

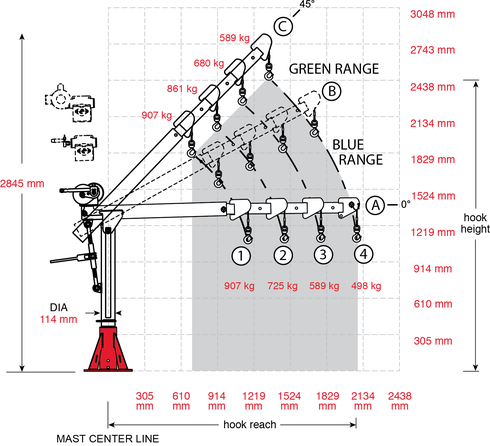

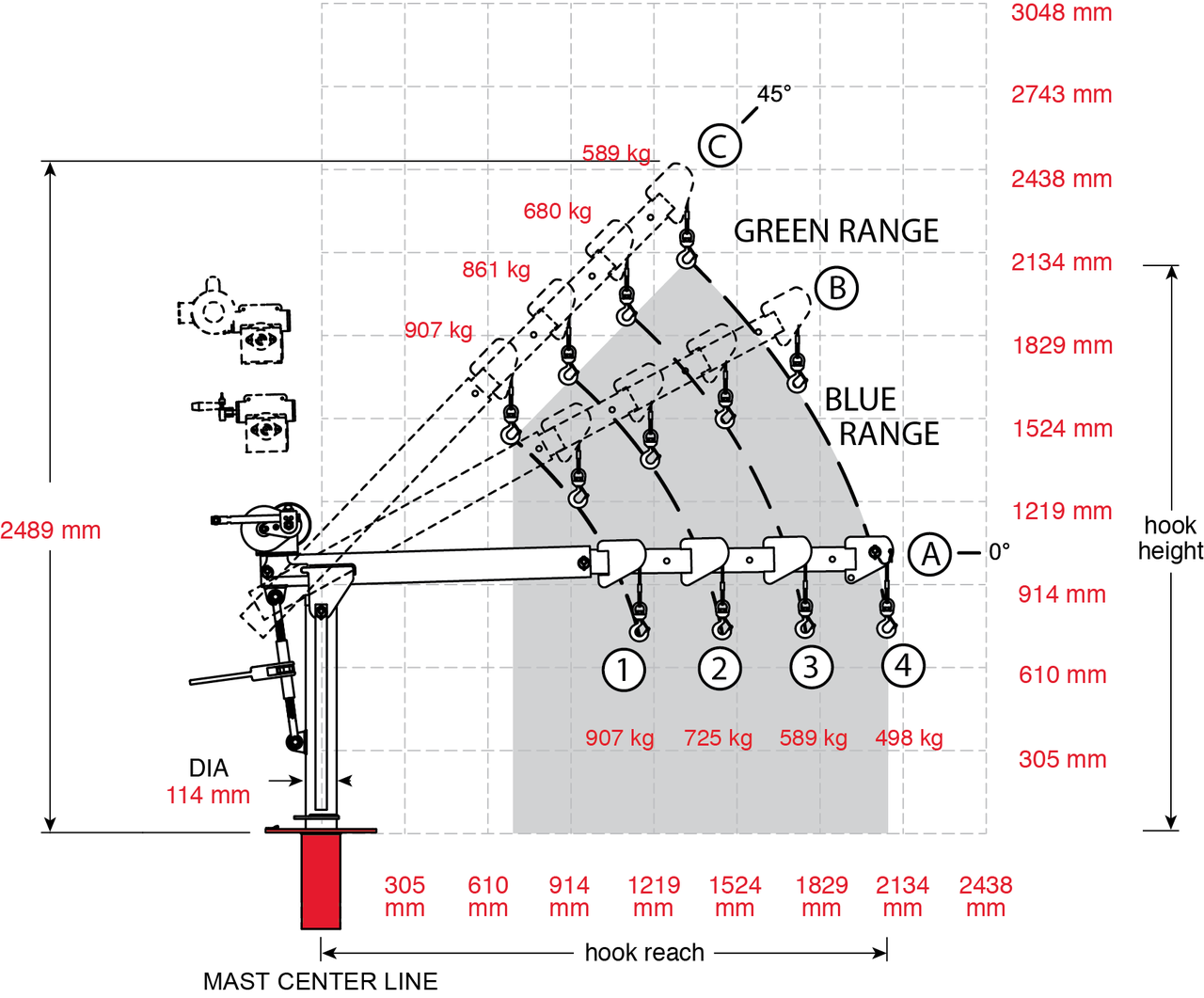

Pedestal Sweep Flush Sweep
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton
Weight
kg
CAD
13.155PT20A1 5PT20 0.91 97

Finish: galvanized, stainless 304 & 316 and three part epoxy can be ordered up on request

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

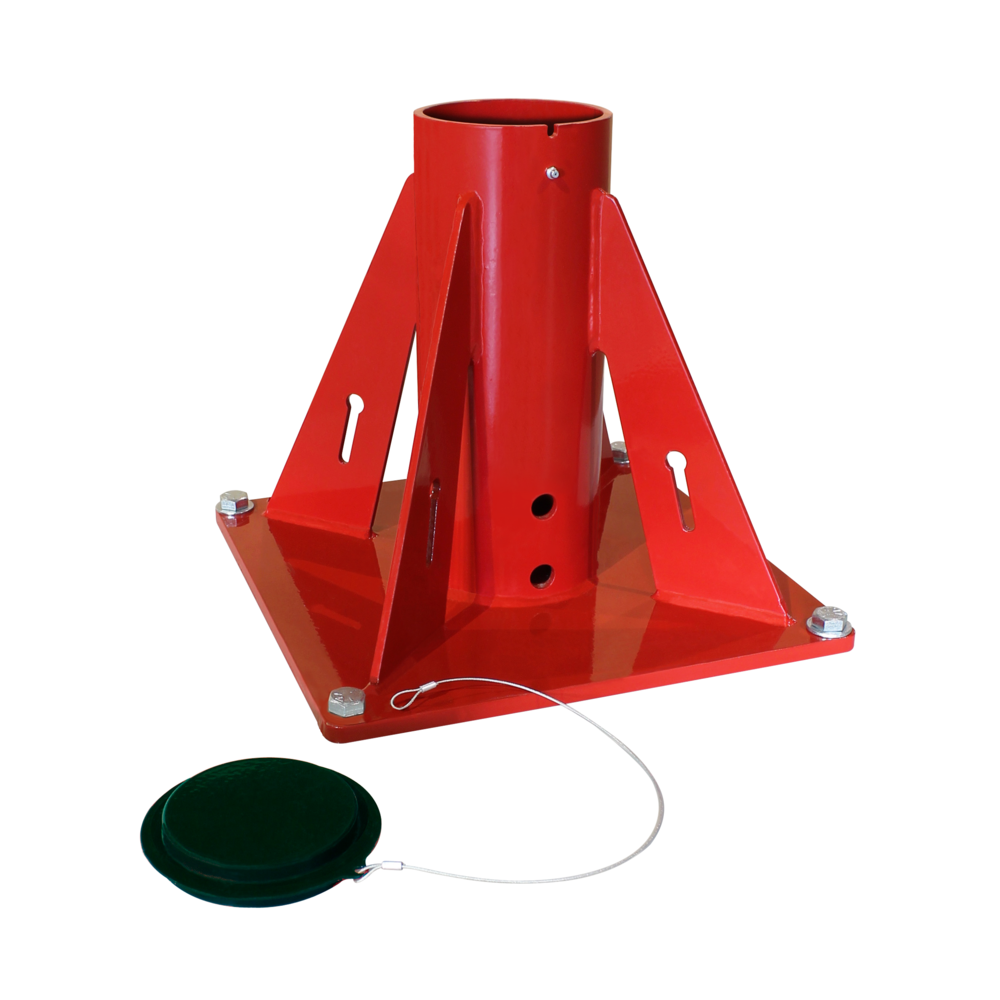

Commander 2000, 5PT20 with Pedestal Base

Boom Position A/B Range WLL (KG) Hook Reach (mm) Hook height (mm)* Lift below floor level** min-max in meters
1st Layer Mid Drum Full Drum
A1 907 680 544 1168 1092 0.0-19.2
A2 725 680 544 1473 1092 0.0-19.2
A3 589 589 544 1778 1092 0.0-19.2
A4 498 498 498 2082 1092 0.0-19.2
B1 907 680 544 711 1803 0.0-19.2
B2 861 680 544 914 2032 0.0-19.2
B3 680 680 544 1143 2235 0.0-19.2
B4 589 589 544 1346 2463 0.0-19.2

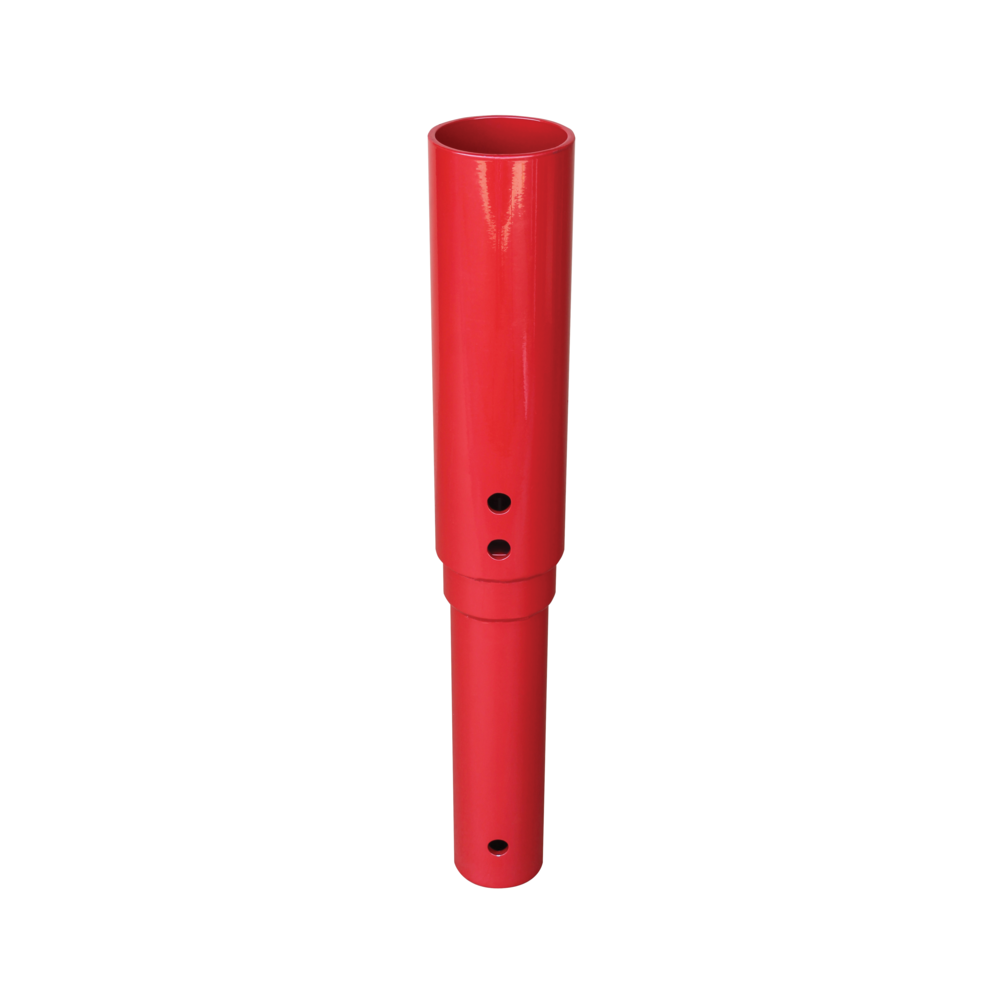

* Optional Base extension can provide 380mm more hook height

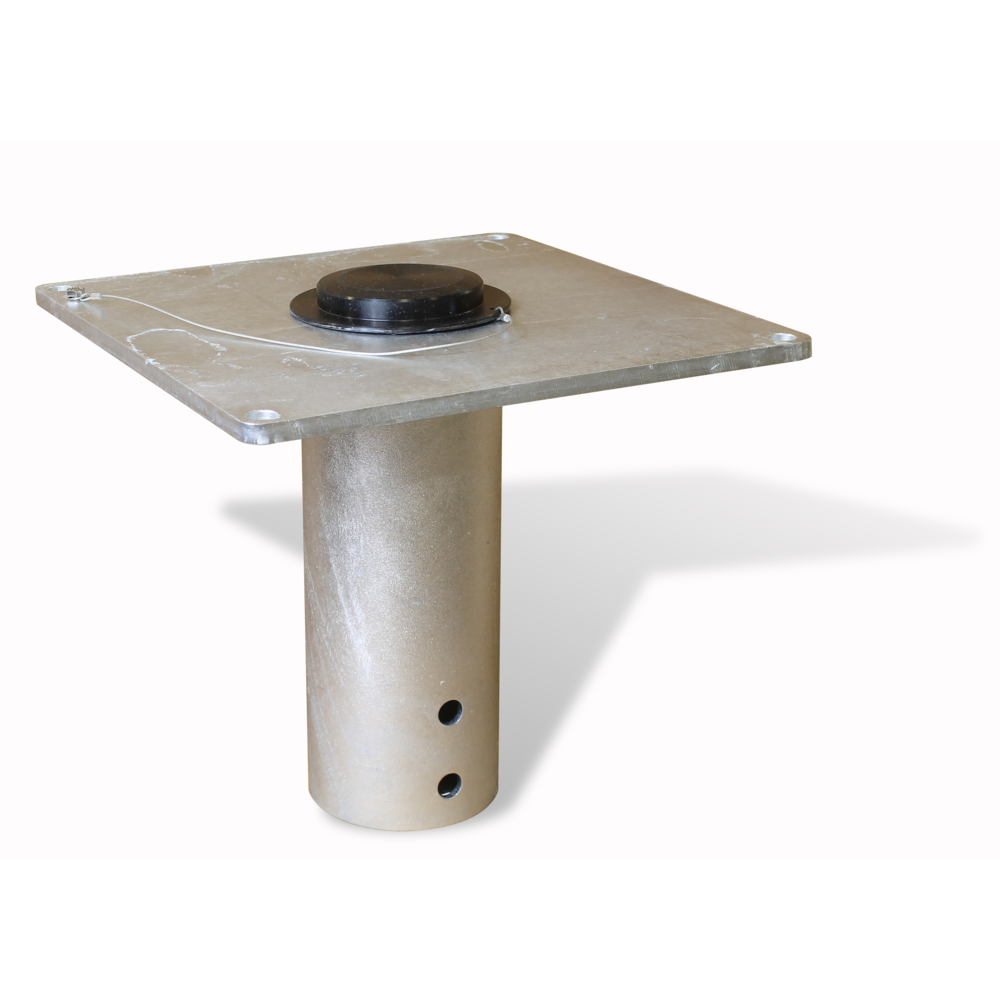

Commander 2000, 5PT20 with Flush or Wall base

Boom Position A/B Range WLL (KG) Hook Reach (mm) Hook height (mm)* Lift below floor level** min-max in meters
1st Layer Mid Drum Full Drum
A1 907 680 544 1168 736 0.0-19.2
A2 725 680 544 1473 736 0.0-19.2
A3 589 589 544 1778 736 0.0-19.2
A4 498 498 498 2082 736 0.0-19.2
B1 907 680 544 711 1447 0.0-19.2
B2 861 680 544 914 1676 0.0-19.2
B3 680 680 544 1143 1879 0.0-19.2
B4 589 589 544 1346 2108 0.0-19.2


* Optional Base extension can provide 380mm more hook height
