Thern

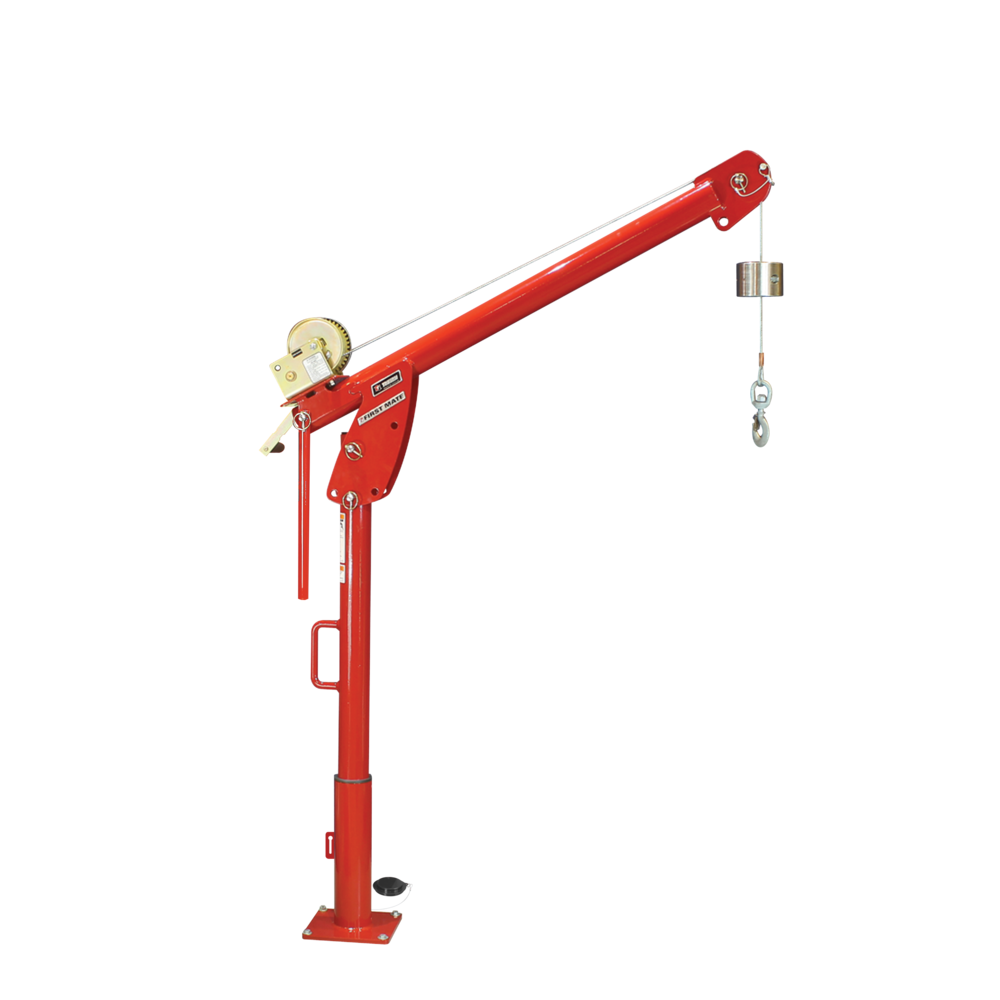

225 kg capacity portable Davit Crane
 • Load ratings up to 225 kg
 • Portable, heaviest part 13,2 kg
 • Rugged and affordable
 • Manual or power winch operation
 • 360° rotation
 • Boom adjustable in three positions
 • Easy, No-Tools Assembly/Disassembly (all individual components less than 13,5 kg)
 • Variety of bases
 • 2-Year warranty
 • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coat

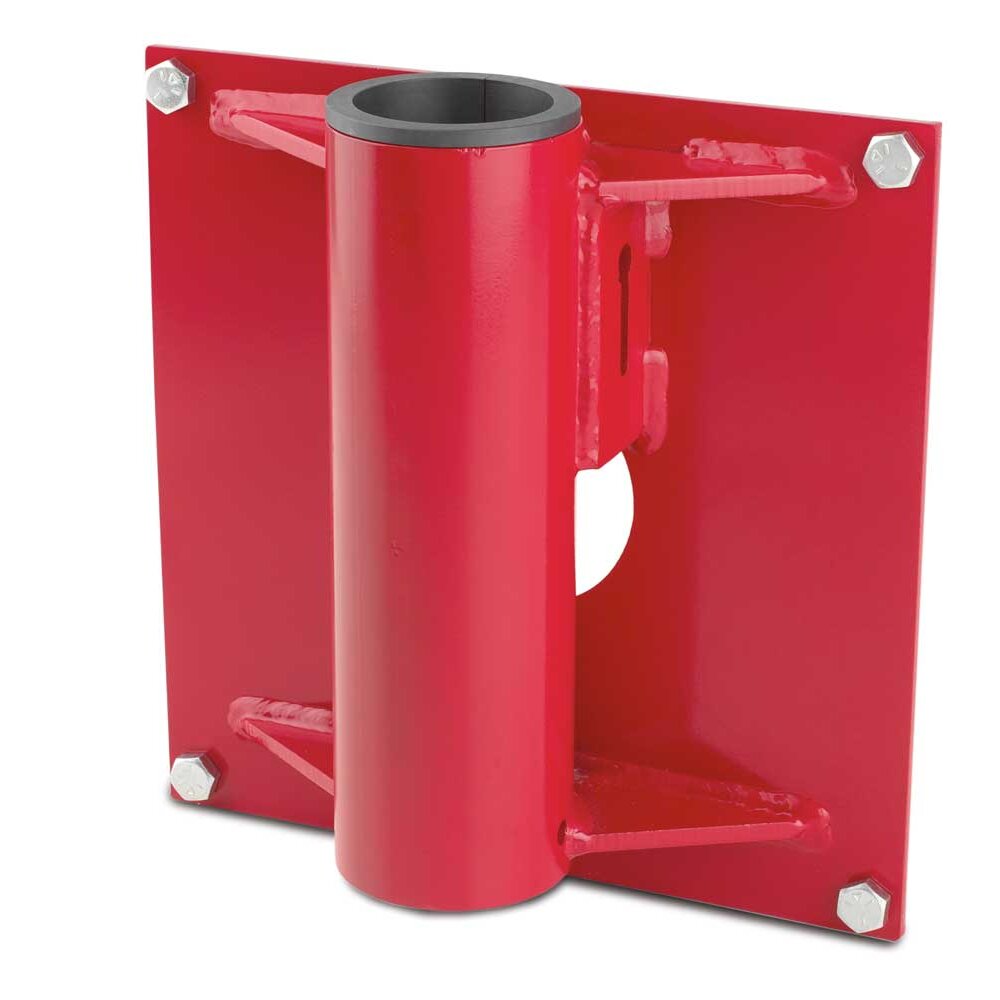

Wall Flush
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton
Weight
kg
CAD
13.155PF5 5PF5 0.23 2.5

Finish: galvanized, stainless 304 & 316 and three part epoxy can be ordered up on request

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

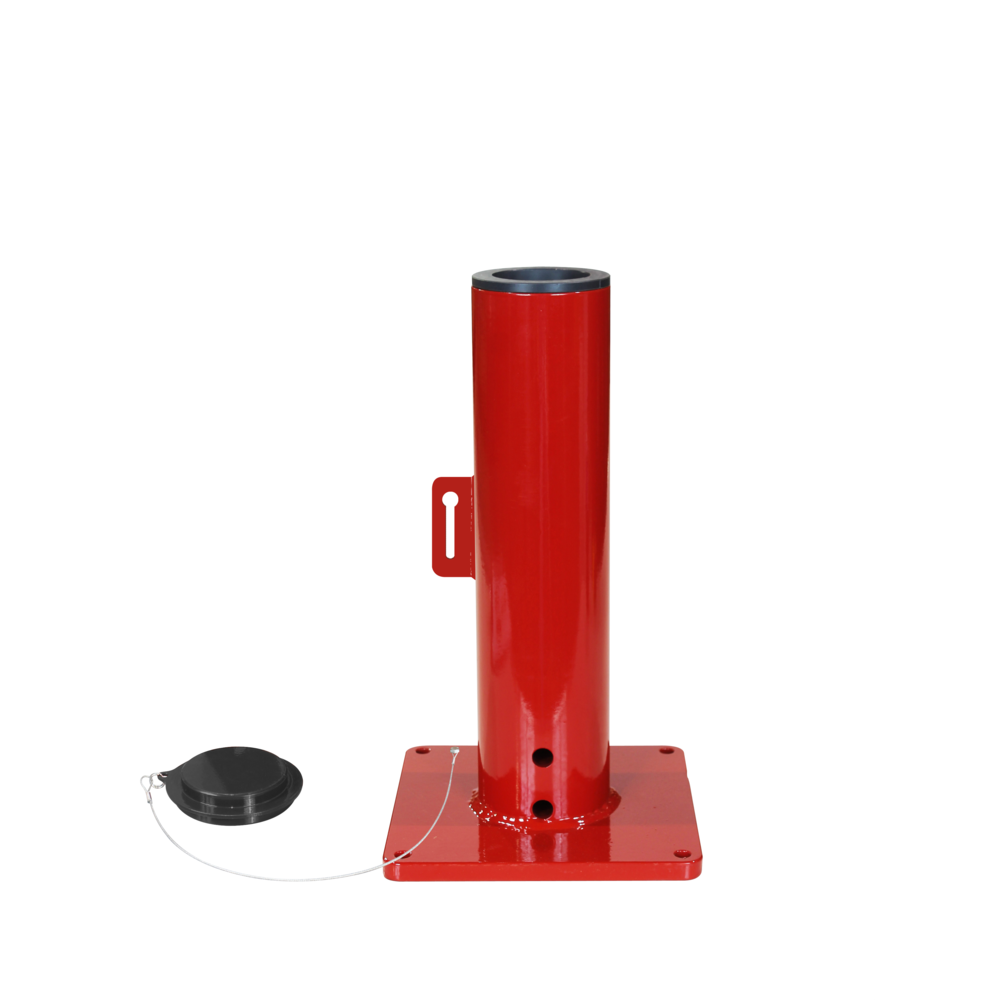

First Mate, 5PF5, with Pedestal Base

Boom Position Load Rating (KG) Hook Reach (mm) Hook height (mm)*
A 225 1066 1016
B 225 889 1524
C 225 609 1778

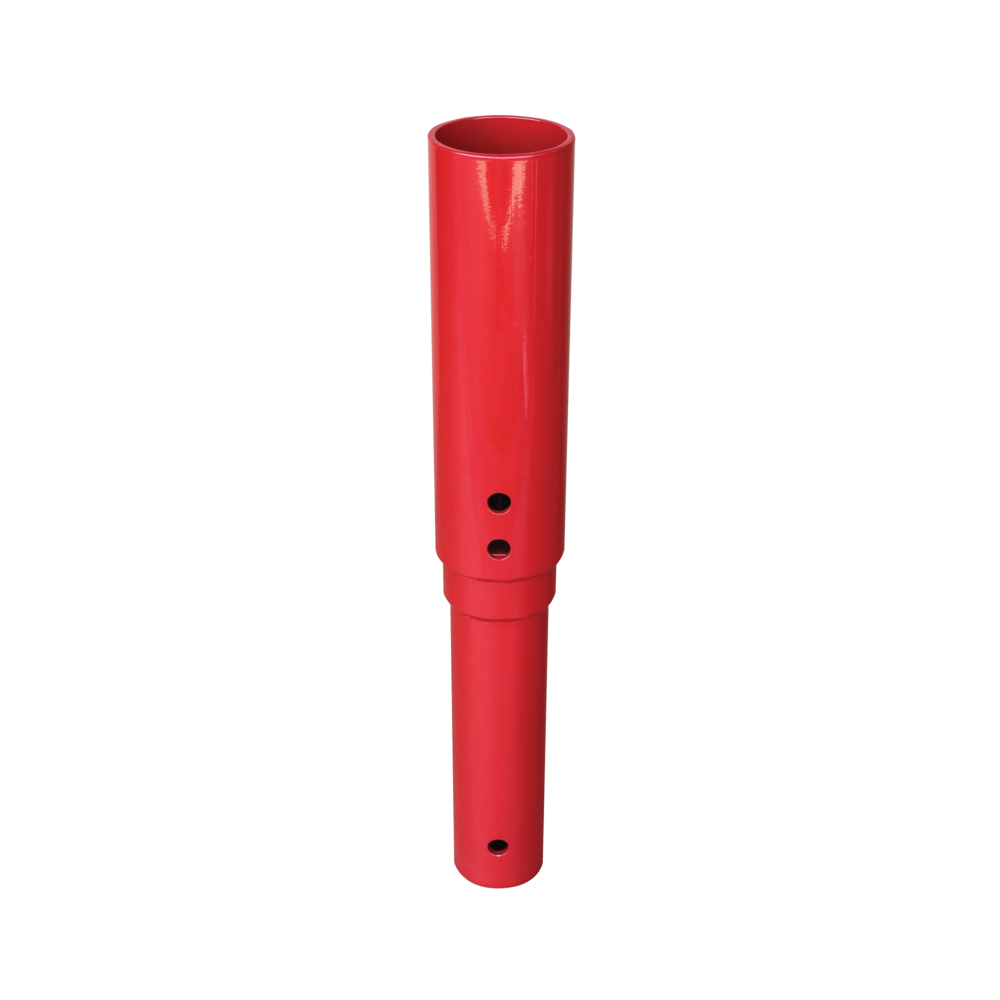

* Optional Base extension can provide 380mm more hook height



First Mate, 5PF5 with Flush or Wall base

Boom Position Load Rating (KG) Hook Reach (mm) Hook height (mm)*
A 225 1066 660
B 225 889 1168
C 225 609 1422

* Optional Base extension can provide 380mm more hook height
