Terrier

For horizontal lifting and transporting of steel plates and other non-deflecting materials. FHX/FHSX lifting clamps only to be used and sold in pairs (or multiple pairs).
Model FHX: Standard clamp
Model FHSX: Clamp with enlarged jaw opening.

Cechy i właściwości::

  • Compact design and high lifting capacity
  • Lightweight design for easy handling
  • Tough quality heavy duty welded body
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C up to +100°C.
  • Standard: EN 13155
  • Note: Must always be used in pairs (or multiple pairs)
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)

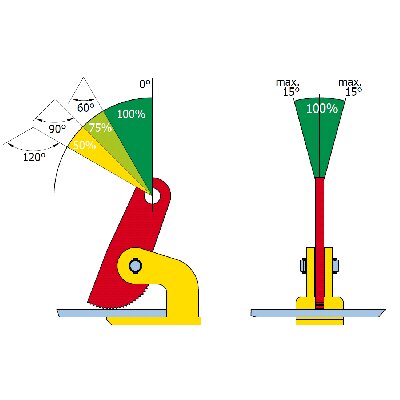

    Lifting Clamp FHX/FHSX angles at suspension

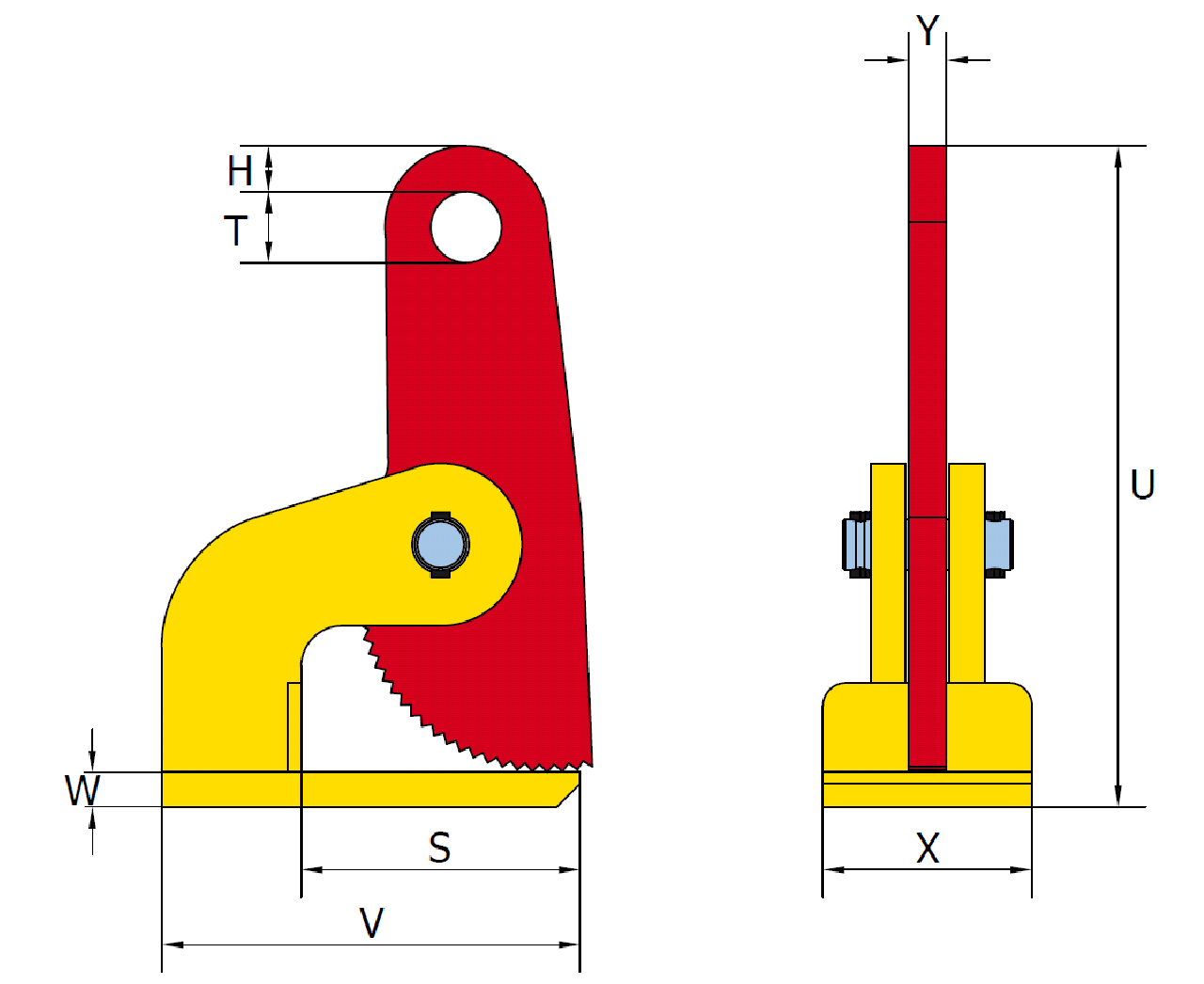

    Horizontal Lifting Clamp FHX-V drawing
    Select a row from the table, then click the add to cart button
    Part Code Code WLL
    ton
    Jaw width
    mm
    V
    mm
    S
    mm
    W
    mm
    T
    mm
    H
    mm
    X
    mm
    U
    mm
    Y
    mm
    Weight
    kg
    16.01953100 1 FHX 1 0-35 140 99 10 25 11,5 65 188 15 2,6
    16.01953200 2 FHX 2 0-60 180 118 15 30,5 19,5 90 287 16 7
    16.01953300 3 FHX 3 0-60 180 118 20 30,5 19,5 90 291 16 8
    16.01953400 4 FHX 4 0-60 220 145 25 30,5 19,5 105 304 20 13
    16.01953600 6 FHX 6 0-60 220 145 25 30,5 19,5 110 307 20 14
    16.01953800 8 FHX 8 0-60 225 135 35 30,5 19,5 120 336 30 19
    16.01953010 10 FHX 10 0-60 225 135 35 30,5 19,5 120 336 30 19
    16.01953012 12 FHX 12 0-60 225 135 35 30,5 19,5 120 336 30 19
    16.01953015 15 FHX 15 0-60 262 147 35 43 21,5 160 344 35 30
