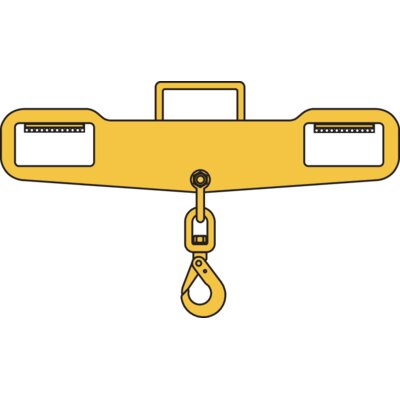

During forklift work, there is often a need to lift at one point, using both forks and the full capacity of the fork lift. Our fork lift beam provides a simple solution as it can quickly be attached to the forks without the need for any mechanical locking. A stand to facilitate collection and return of the beam (storage) can be made to order.
Design: Cut plate with welded support plates. Friction rubber underneath the plates prevents sliding during loading. Model 6702 incorporates large openings for trucks with stabilizer legs. The beam comes complete with shackle and swivel safety hook.
Proof: Batch proof 2 x WLL

  • Material: High-strength structural steel.
  • Marking: According to standard, CE-marked, Maximum load
  • Finish: Yellow painted.
  • Standard: EN 13155
  • Safety factor: 4:1
For Lift Beam 6702

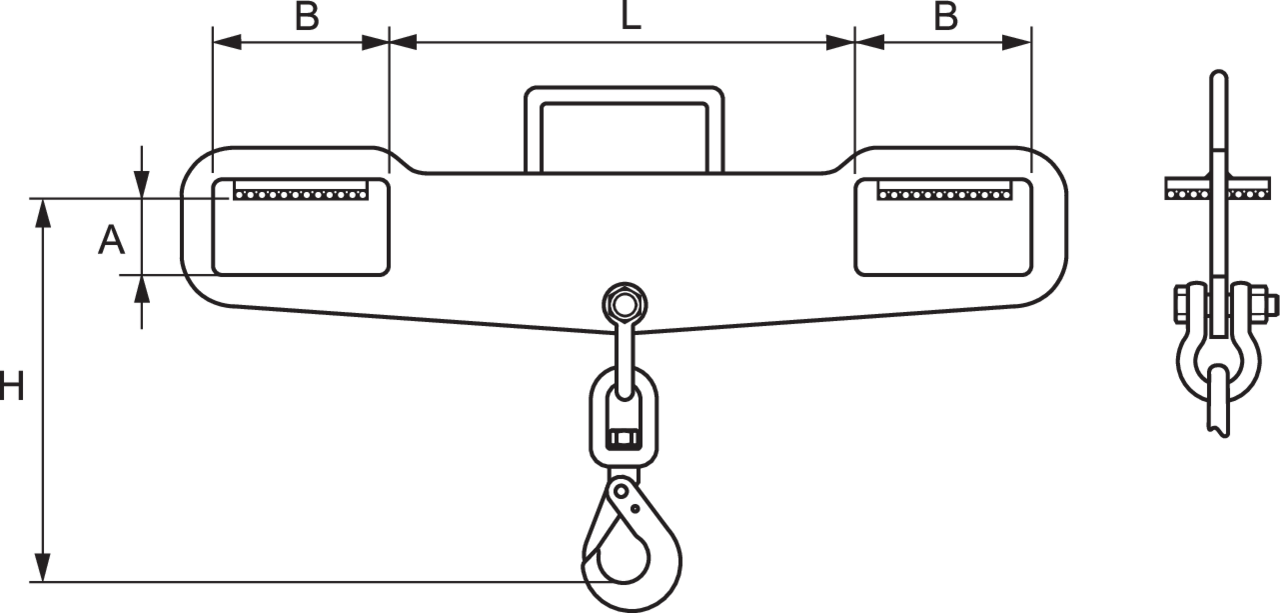

Fork Lift Beam measurements
Select a row from the table, then click the add to cart button
Part Code Code WLL
ton
A
mm
B
mm
G
mm
H
mm
L
mm
Weight
kg
13.356702 6702 2 92 220 50 340 180 7
13.356703 6703 3 72 165 100 385 450 12
13.356705 6705 5 72 165 100 425 450 16
13.356708 6708 8 92 200 120 535 550 60

Other dimensions and designs are made on request.
(*) or equivalent
