Terrier

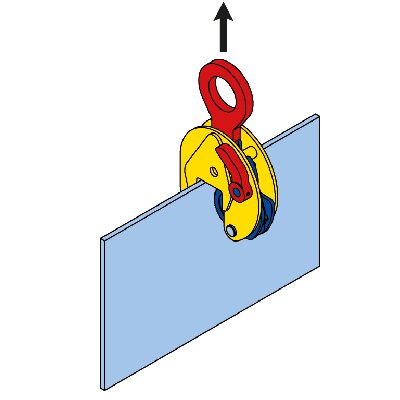

For vertical lifting and transporting of steel plates. The TS lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position. The STS is similar but offers a larger jaw opening.

Features:

  • Lightweight design for easy handling.
  • Tough quality heavy duty welded shell body.
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
  • Clamp is locked in closed as well as open position.
  • Maintenance-friendly, easy to exchange parts which are available upon request .
  • Signal colouring on lifting eye and locking lever for extra safety.
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C up to +100°C.
  • Standard: EN 13155
  • Note: Hardness level of the material surface may not exceed 37 HRC (345 HB, 1166 N/mm2).
  • Warning: Min. load is 10% of max. WLL.
    Vertical Lifting Clamp TS/TSE/STS

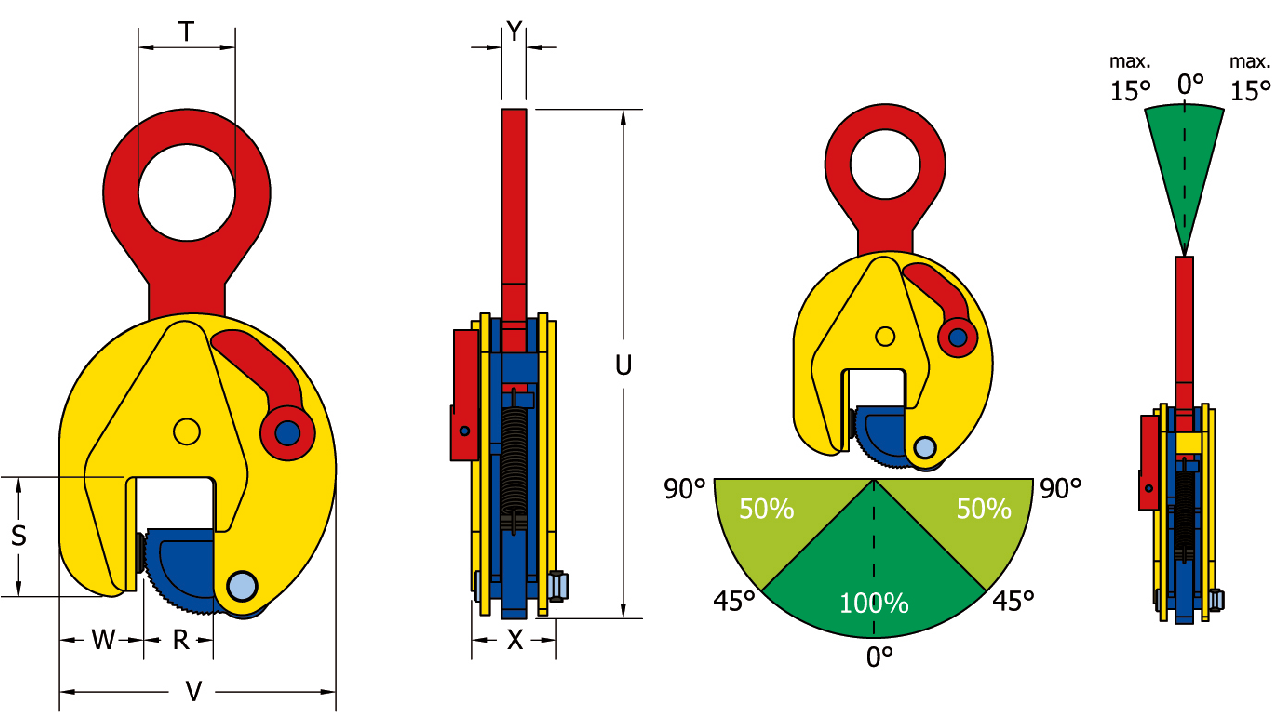

    Lifting Clamp TS/TSE/STS drawing and angles at suspension Lifting Clamp TS/TSE/STS drawing and angles at suspension
    Select a row from the table, then click the add to cart button
    Part Code Code WLL
    ton
    Jaw width
    mm
    S
    mm
    T
    mm
    U
    mm
    V
    mm
    W
    mm
    X
    mm
    Y
    mm
    Weight
    kg
    16.01850000 0.75 TS 0,75 0-13 47 30 202 100 37 37 10 1,7
    16.01850880 1 TSE 1 0-25 56 45 263 141 37 47 15 3,5
    16.01850901 2 TSE* 2 0-35 78 64 336 183 56 56 16 7
    16.01850331 3 TSE* 3 0-35 78 64 336 183 56 56 16 7
    16.01850441 4.5 TS 4,5 0-25 85 70 423 203 60 77 20 15
    16.01850301 6 TS 6 0-32 114 75 490 225 78 78 20 19
    16.01850401 7.5 TS 7,5 0-40 111 75 530 246 76 82 20 24
    16.01851551 9 TS 9 0-55 111 75 522 267 70 86 20 27
    16.01850501 12 TS 12 0-52 148 85 617 295 100 94 44 37
    16.01915000 15 TS 15 0-76 209 86 810 373 136 106 49 70
    16.01917000 17 TS 17 0-76 209 86 810 373 136 106 49 71
    16.01850700 20 TS 20 0-80 250 100 933 563 153 140 66 149
    * Available with a remote control
