Red Rooster

Air chain hoist for loads from 250 up to 2000 kg.
These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use. Robust cast steel body. Valve block is the same for all models meaning: less spare parts required.

Standard features:

  • Precise variable speed control (cord- and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact design.
  • Endstop system.
  • Load limiter built-in without loss of headroom.
  • Cord control or pendant control.
  • Low noise level.
  • Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar).

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit.
(Sold separately.)

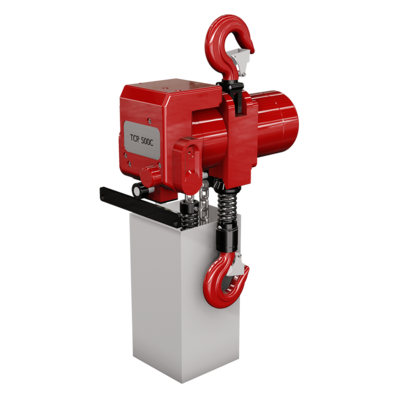

      Product Image 1

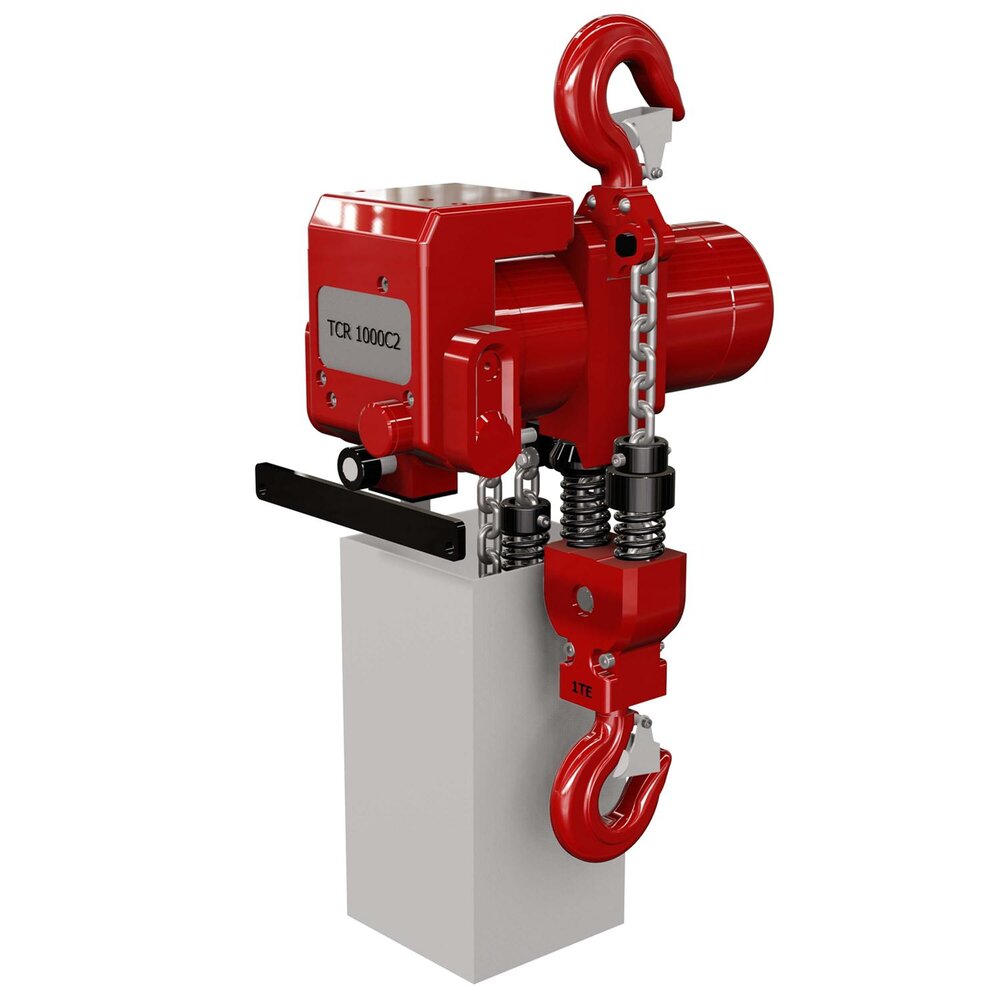

      Product Image 2
      Select a row from the table, then click the add to cart button
      Part Code Code WLL Load chain Ø
      mm
      Air consumption lifting (l/sec) Air consumption lowering (I/sec) Lifting speed with max.load
      m/min
      Lowering speed with max.load
      m/min
      Air connection Workingpressure
      bar
      Lifting speed without load
      m/min

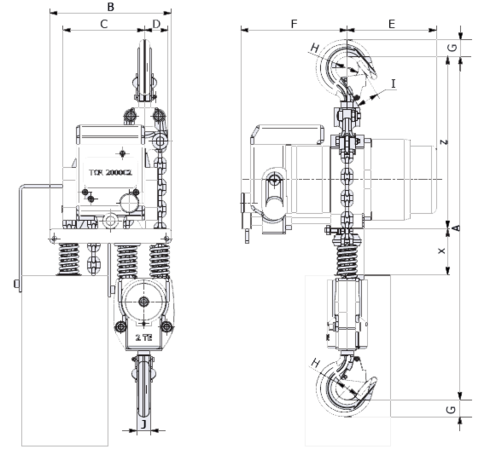

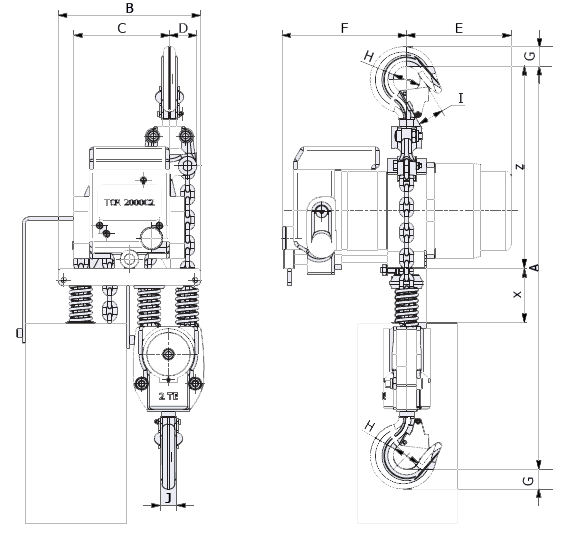

      Min hosediam. Number of falls Lifting cycle/hour A
      mm
      B
      mm
      C
      mm
      D
      mm
      E
      mm
      F
      mm
      G
      mm
      I
      mm
      J
      mm
      X
      mm
      Z
      mm
      Weight
      kg
      16.30TCR-600250C TCR-600250C 0,25 6.3x19.1mm 25 27 10,5 17,9 1/2" BSPT 6 20,5 1/2" 1 4 460 212 115 51 156 186 29 40 29 29 100 250 31,1
      16.30TCR-600250PE TCR-600250DPE 0,25 6.3x19.1mm 25 27 10,5 17,9 1/2" BSPT 6 20,5 1/2" 1 460 212 115 51 156 186 29 40 29 29 100 250 31,1
      16.30TCR-500C TCR-500C 0,5 6.3x19.1mm 25 27 10,5 17,9 1/2" BSPT 6 20,5 1/2" 1 460 212 115 51 156 186 29 40 29 25 100 250 31,1
      16.30TCR-500PE TCR-500PE 0,5 6.3x19.1mm 25 27 10,5 17,9 1/2" BSPT 6 20,5 1/2" 1 460 212 115 51 156 186 29 40 29 25 100 250 31,1
      16.30TCR-1000C TCR-1000C 1 7.1x21mm 25 28 6 10,3 1/2" BSPT 6 11,3 1/2" 1 485 212 116 40 156 186 29 40 29 25 100 250 34
      16.30TCR-1000PE TCR-1000PE 1 7.1x21mm 25 28 6 10,3 1/2" BSPT 6 11,3 1/2" 1 485 212 116 40 156 186 29 40 29 25 100 250 34
      16.30TCR-1000C2 TCR-1000C2 1 6.3x19.1mm 25 27 5,3 9 1/2" BSPT 6 9,5 1/2" 2 519 212 139 27 156 186 29 40 29 25 100 250 35,2
      16.30TCR1000P2E TCR-1000P2E 1 6.3x19.1mm 25 27 5,3 9 1/2" BSPT 6 9,5 1/2" 2 519 212 139 27 156 186 29 40 29 25 100 250 35,2
      16.30TCR-2000C2 TCR-2000C2 2 7.1x21mm 25 30 3 5,2 1/2" BSPT 6 5,7 1/2" 2 580 212 143 50 156 186 37 45 29 30 100 280 39,7
      16.30TCR-2000P2E TCR-2000P2E 2 7.1x21mm 25 30 3 5,2 1/2" BSPT 6 5,7 1/2" 2 580 212 143 50 156 186 37 45 29 30 100 280 39,7
