Auto crane hook, allows you to remotely attach and release loads with no handling. It catches the masterlink with a magnet, a sensor indicates when the ring is in the right position, and a reinforced safety latch keeps the load safely attached during lifting.
Body: WELDOX® high strength steel body.

  • Temperature range: -20°C up to +85°C.
    Elebia evo10
    RFID_logo_20131113

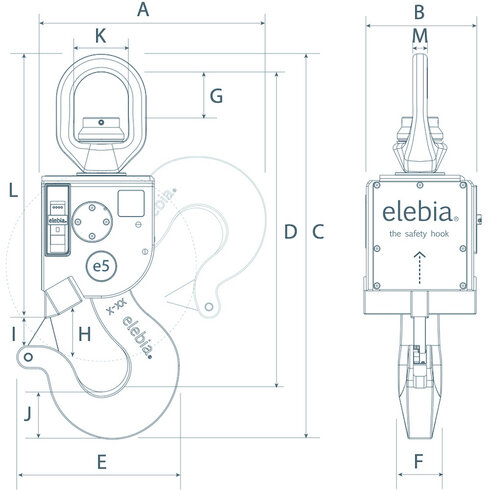

    Elebia dwg
    Select a row from the table, then click the add to cart button
    WLL
    ton
    Model Max. releasable weight
    kg
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    J
    mm
    K
    mm
    L
    mm
    Weight
    kg
    5 e5 20 276 172,5 469 409 194 43 48,5 57,6 25,7 41,4 58 349 24
    10 e10 20 342 182,5 584 485 246 66 67,8 84 42,6 72 82 400 35
    20 e20 20 342 182,5 663 553 246 66 105 84 42,6 72 115 479 40
