• The product is equipped with RFID chip
  • Rotates through 360° and pivot 90°
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Quick and simple assembly, just a tapped hole is required.
  • Features: Built-in RFID/NFC chip
  • Material: Alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10

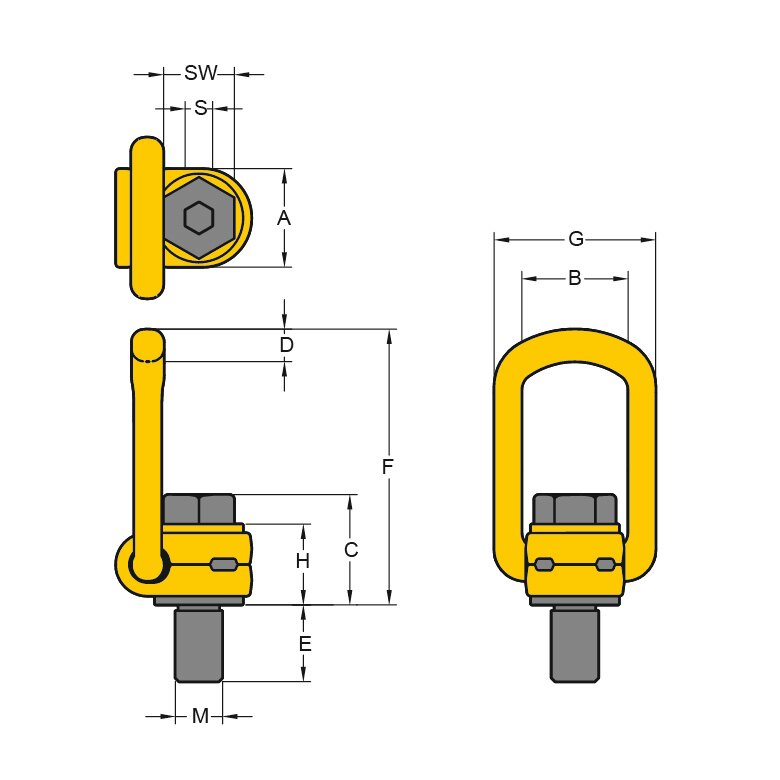

Lifting Point 8-211 Long bolt measurement
Select a row from the table, then click the add to cart button
Part Code WLL
ton
Torque
Nm
Thread
M
mm
Thread length (E)
mm
Pitch DIN13 A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
S
mm
SW
mm
Weight
kg
CAD
11.428-211-003-105L 0,3 30 M 8 76 1,25 30 35 35 10 85 55 29 6 13 0,3 -
11.428-211-006-125L 0,63 60 M 10 96 1,5 30 35 36 10 85 55 29 6 17 0,4 -
11.428-211-010-150L 1 100 M 12 114 1,75 33 37 44 14 98 57 36 8 19 0,6 -
11.428-211-015-185L 1,5 150 M 16 149 2 33 37 46 14 98 57 36 10 24 0,7 -
11.428-211-025-230L 2,5 250 M 20 186 2,5 50 54 57 17 140 82 44 12 30 1,7 -
11.428-211-040-265L 4 400 M 24 221 3 50 54 59 17 140 82 44 14 36 2,1 -
11.428-211-050-340L 5 500 M 30 278 3,5 60 65 81 23 170 99 62 17 46 4,3 -
11.428-211-100-350L 10 1 000 M 42 272 4,5 77 85 104 27 225 124 78 24 65 8,7 -
