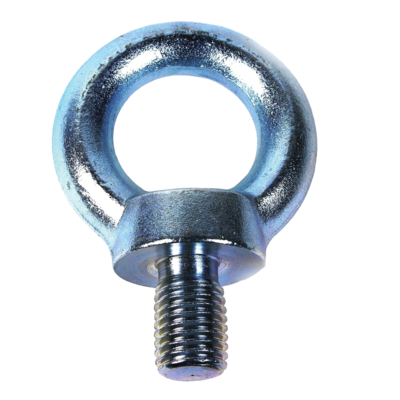

Lifting Eye Bolt DIN 580

Lifting Eye Bolt DIN 580

Eyebolts/eyenuts to this standard are intended as permanent attachments on equipment such as motors, control cabinets, gear boxes, etc.

The values given for eyebolts/eyenuts used with double-strand slings (cf. table line 2) apply only if the angle between each sling branch and the vertical does not exceed 45°. Larger angles and any lateral loading of eyebolts/eyenuts should be avoided.


  • Material: Steel C15E.
  • Marking: According to standard, WLL, manufacturer C15, thread, CE
  • Finish: Electro galvanized.
  • Standard: DIN 580
  • Note: The lifting eyes shall be screwed tight against the surface. When two lifting eyes are used their mutual position shall result in the two eyes at the same level. Larger angle between the slings than 90° are not tolerated. Lifting eyes can not be assembled against a surface that differs essentially from a surface perpendicular to the direction of the lift.
  • Safety factor: 6:1

After click on the “Show table” button, you will see the table with all technical details about the product.

Filters & subcategories

Show results
Filters

Show more filters

Select the variant of your choice. Add it in the cart for purchase or request quotation.
Other dimensions, and type of thread on request.
