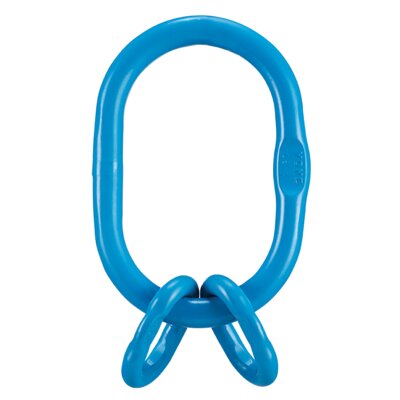

Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional Grade 8 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
- Material: Quenched and Tempered Alloy Steel
- Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
- Temperature range: -40° up to +200°C (without reduction in WLL).
- Finish: Blue painted.
- Standard: EN 1677-4
- Safety factor: 4:1
- Grade: 10
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
