Casar Starlift
Product information
Applications:
A very flexible rope with a core in a special design avoiding crossovers between the strands of core and preventing internal rope destruction. Hoist rope for mobile cranes, electrical hoists and other applications, where rotation resistant ropes are required.

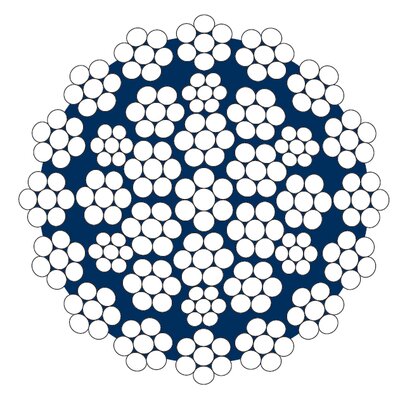

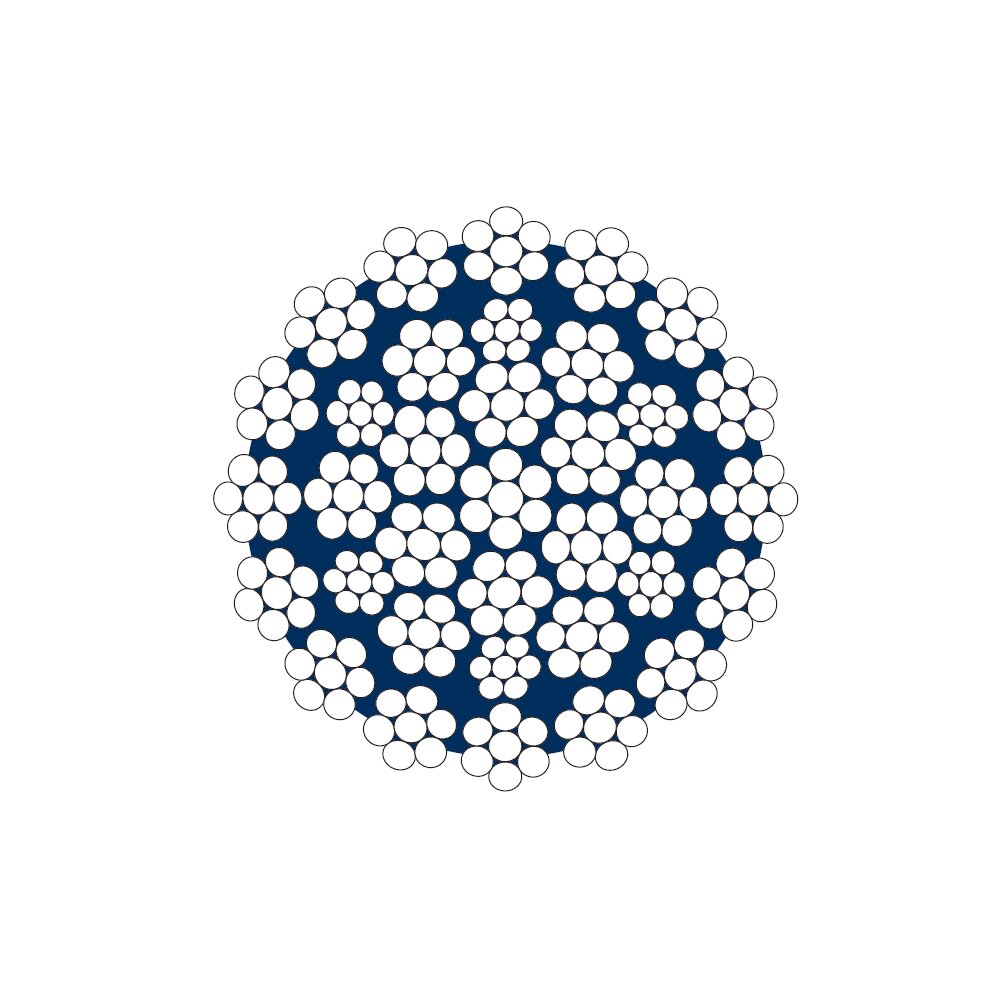

Construction:
Rotation resistent, made out of conventional strands.
Properties:
- Rotation resistant wire rope with high breaking force
- Very flexible with good fatigue properties
ISO 4309 Rope Category No: 7-72mm RCN.23-2
- Marking: According to standard
- Standard: EN 12385-4
- Fill factor: 0.65
- RCN: 23-2
- Tolerance Ø: +2% to +4%
-
Tower crane
-
Mobile crane
-
Crawler crane
-
Mobile port crane
-
Overhead cranes
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Bright, Galvanized and is manufactured with a tensile strength of 1960 N/mm².A bright (uncoated) finish has no corrosion protection and is therefore primarily used in dry, indoor, or controlled environments. Bright wire ropes are generally selected for cost reasons. The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
Does this steel wire rope have any special design or performance features?
This steel wire rope is designed to be rotation resistant, minimizing torque and rotation under load. It is particularly suitable for lifting applications involving single-line operation or long lifting heights.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with Multistrand strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general It is manufactured with an ordinary left-hand lay (zS), offering similar performance characteristics to right-hand ordinary lay but designed for specific directional or equipment requirement It is manufactured with a right-hand lang lay (zZ), offering increased abrasion resistance and extended service life in applications where surface wear is a critical factor. It is manufactured with a left-hand lang lay (sS), providing enhanced wear resistance and longer service life where high surface durability is required.
