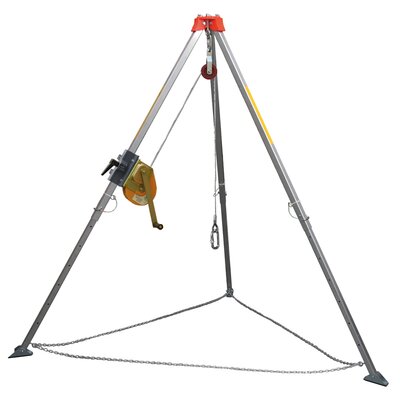

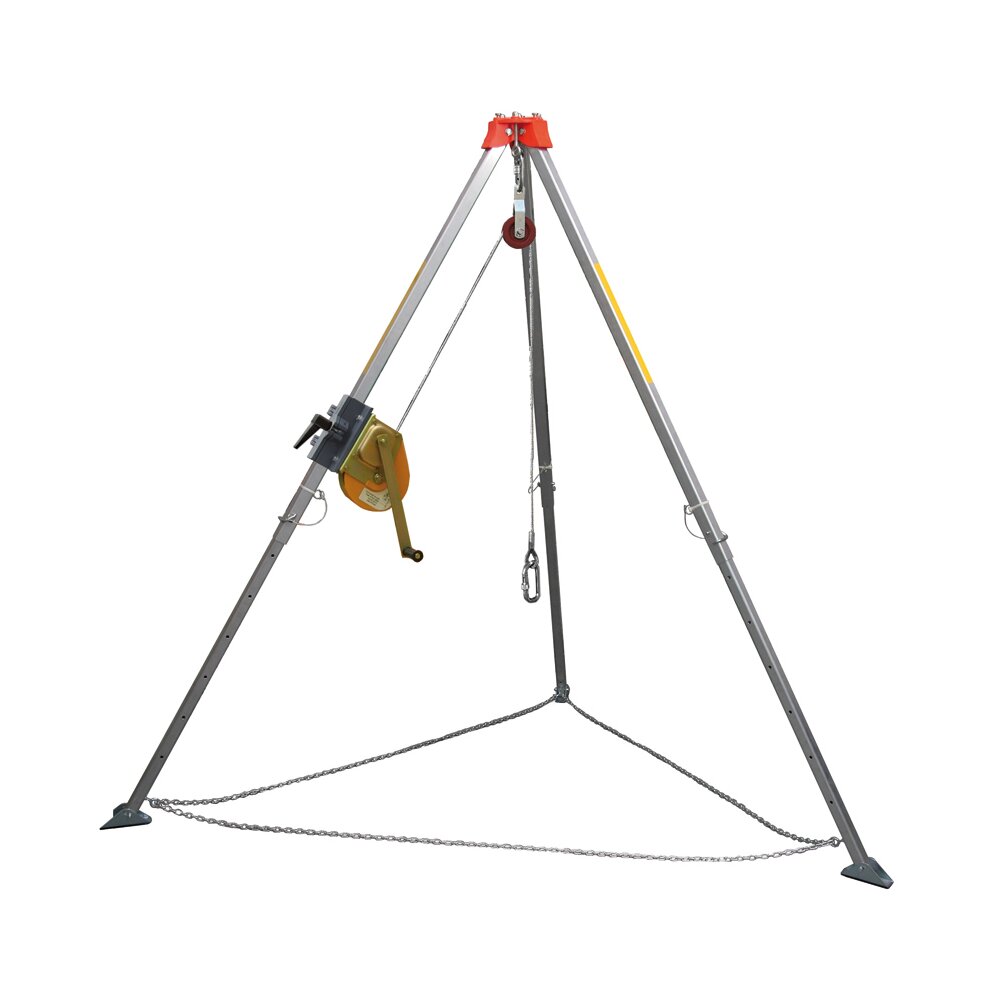

Safety tripod TM 9 is a portable anchoring device intended for single person use only.
- The head is made of powder coated galvanized steel.1 central anchor point eye bolt and 3 additional side anchor points.
- Aluminium legs with 7-step adjustment, locked with cotters.
- Steel feet have rubber pads for flat surfaces and spiked edges for slippery surfaces.
- Tripod legs can be secured with textile webbing or steel chain.
- Marking: According to standard, CE-marked
- Standard: EN 795, EN 1496-B
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
