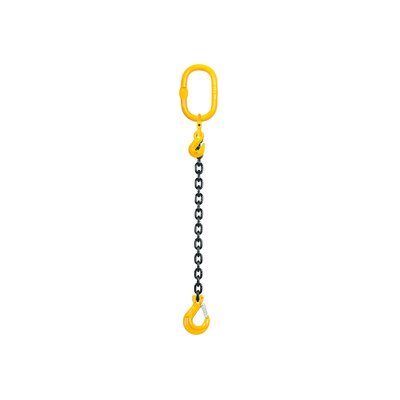

Assembled 1-Leg chain sling with latch hook and grab hook. Slings are equipped with a load plate.

Sling length measured from the top of the master link to the bottom of the hook.

  • Material: Alloy Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to +200°C / 400°C = WLL 75%
  • Finish: Painted, black / yellow
  • Standard: EN 818-4
  • Note: The last three digits of the product code refer to the length: 010 = 1,0 m.
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to cart button
Part Code WLL
ton
11.90CS17506XXX 1,12
11.90CS17508XXX 2
11.90CS17510XXX 3,15
11.90CS17513XXX 5,3
11.90CS17516XXX 8
11.90CS17520XXX 12,5

β - angle of any leg to the vertical

Other dimensions, WLL and special lengths on request.
