MINIFOR™ hoists are used with a Maxiflex wire rope. They can be used to lift or pull objects over great distances depending on the wire rope length. They are suitable for use in numerous configurations. They are operated through a pushbutton control. Optionally, the MINIFOR™ hoist can be equipped with a wire rope reeling device or a wireless remote control.

TR110 is fitted with an overload protection system

  • Capacity 100 kg, 300 kg or 500 kg
  • Quick installation
  • Easy to use, light-weight, robust, powerful
  • Available as single phase and three phase model
  • Excellent capacity / weight ratio
  • Unlimited wire rope travel
  • Pendant control (up/down/emergency stop) 2,5 m
  • Aluminium alloy design
  • Swivelling suspension hook
  • Protection: IP55 (Control: IP65)
  • Upper and lower limit switches

Options:

  • Special sleave block kits are available for all models (max. 980 kg). They enable doubling the capacity half the working speed
  • Extension power supply and control cabel per m.
  • Radio remote control
  • Wire rope 10-100 m in 10 m. length interval. Other lengths on request
  • Do only use original Minifor steel wire rope
  • Metal storage box

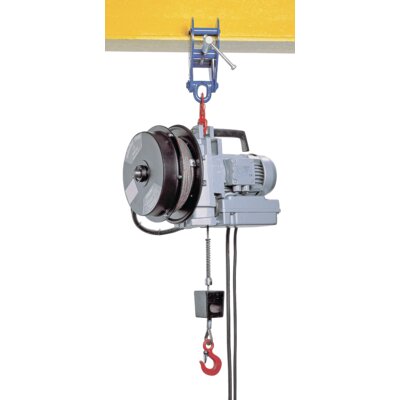

  • Wire rope reeler
  • Alternatively with cable reeling device (max. 40 m), wireless remote control, set of sheave blocks
  • Marking: CE-marked, Load capacity, serial number.
  • Note: Excl. wire (to be ordered separately).

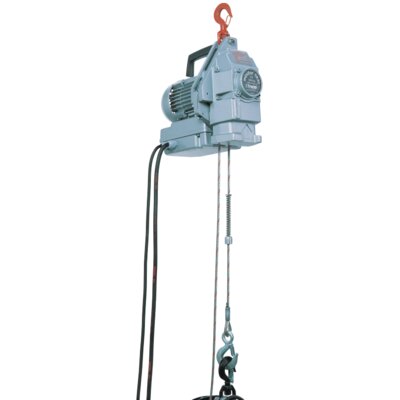

    Minifor TR10

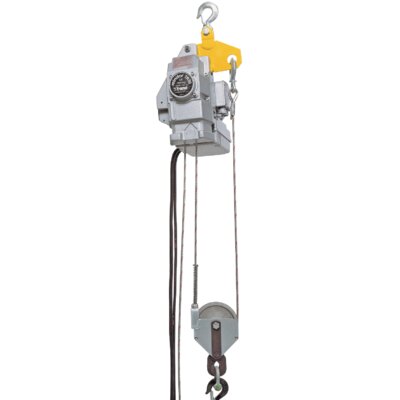

    TR30 with blockkit

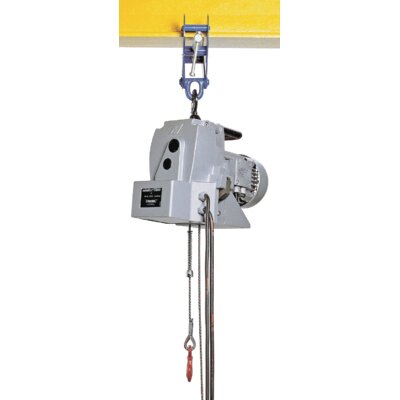

    Minifor TR50
    TR10 TR30_dwg TR10 TR30_dwg TR10/TR30 TR30S-TR50_dwg TR30S-TR50_dwg TR30S/TR50
    Select a row from the table, then click the add to cart button
    Part Code WLL
    ton
    Type WLL sheaved
    ton
    Speed direct
    m/min
    Speed sheaved
    m/min
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    J
    mm
    K
    mm
    L
    mm
    M
    mm
    Weight
    kg
    16.28042789 0,1 TR10 0,2 15 7,5 427 20 140 631 209 112 20 20 324 356 114 15 - 20
    16.28042889 0,3 TR30 0,6 5 2,5 427 20 140 631 209 112 20 20 324 356 114 15 - 20
    16.28042989 0,3 TR30S 0,6 13 6,5 430 20 212 642 365 224 194 90 20 20 347 492 302 33
    16.28044849 0,5 TR50 0,95 7 3,5 430 20 212 642 365 224 194 90 20 20 347 492 302 33
    Wire rope ø 6,5 mm
    Type Dimensions Power supply* Wire rope reeler Radio
      LxWxD mm Single phase Single phase 3 phase 20 m 27 m 40 m control
    115 Volt 230 Volt 400 Volt

    TR10 355x420x180

    TR30 355x420x180

    TR30S 495x425x225

    TR50 495x425x225

    TR55

    TR110

    * Power supply 50 and 60Hz
