• Not for lifting
General: Stainless Duplex Clip double type with 2 screws.


  • Material: ¬†Stainless acidproof steel AISI 316.
  • Finish: Polished.
2301_new
NIRO-DUPLEX-KLEMME
Select a row from the table below, then click the add to quote button

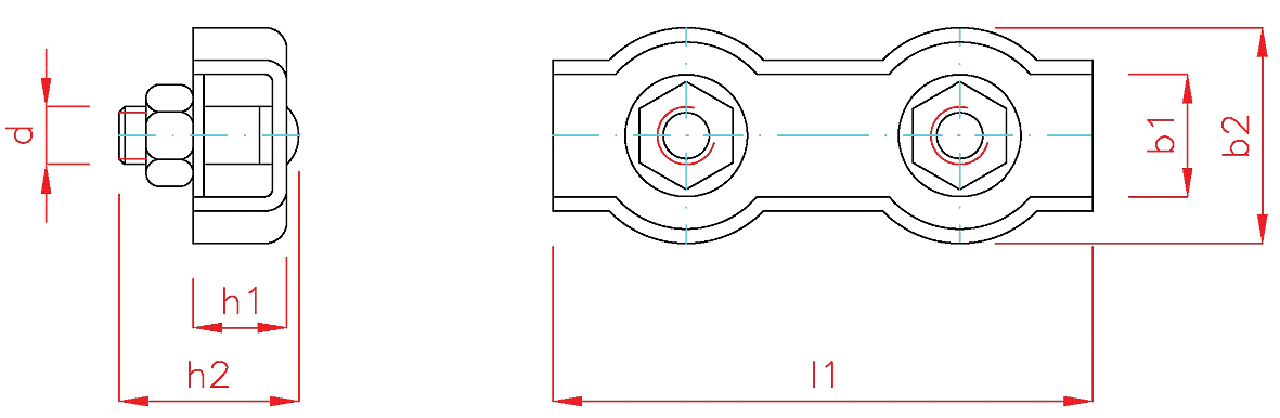

Part Code Diameter
mm
B1
mm
B2
mm
D
mm
h1
mm
h2 (mm) L1
mm
CAD
10.16MS030503 3 6 14 M 4 7 14 35
10.16MS030505 5 10 20 M 5 8 18 50
10.16MS030506 6 12 24 M 6 9 23 60
