General: The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not used.





  • Material: Eye of alloy steel grade 8.
  • Marking: WLL.
  • Finish: Painted.
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1.
APG_new_225mm
Apg-2m_lom_225mm
TAPG_dwr
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

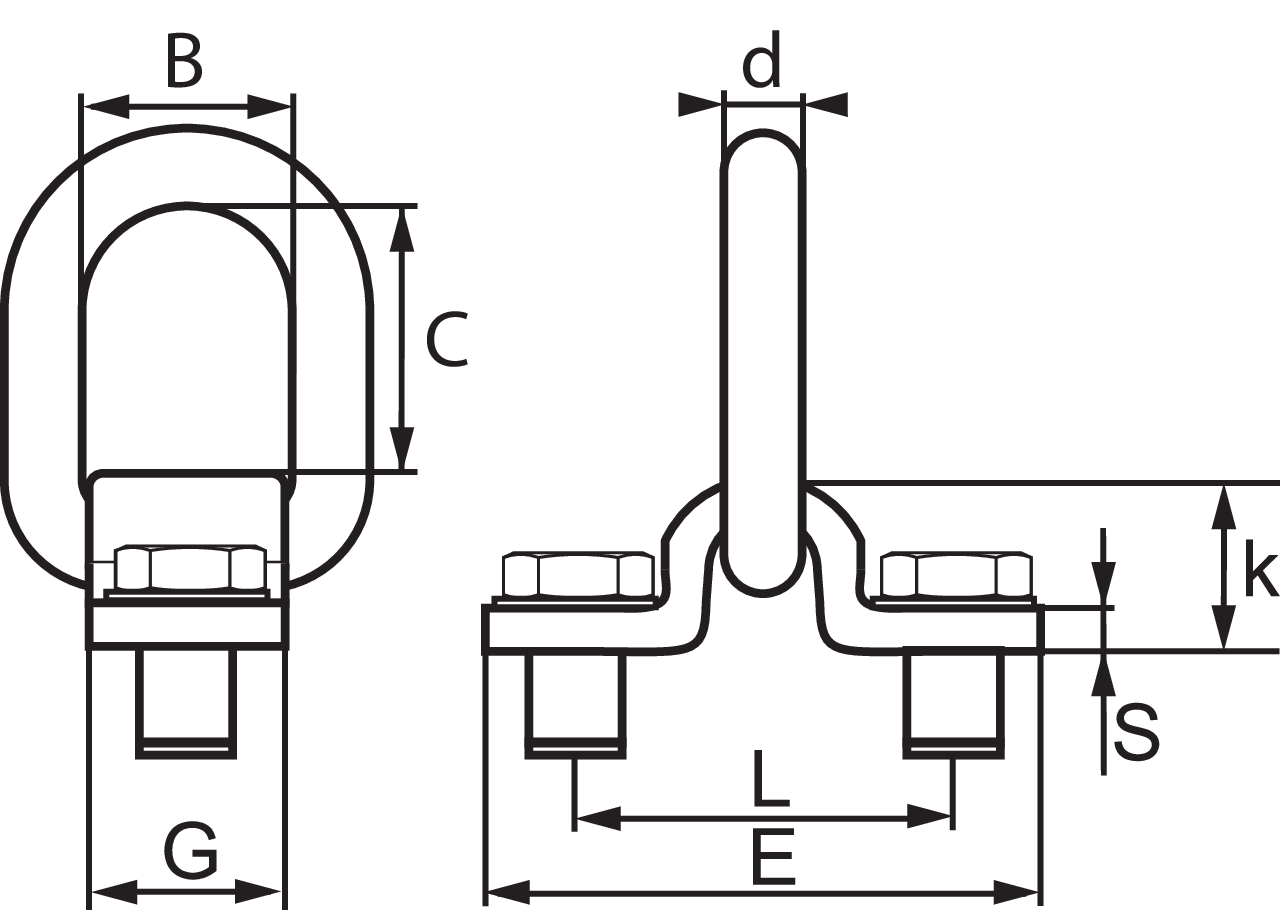

Thread* dim G (mm) L (mm) S (mm) k (mm) E (mm) Weight
kg
11.410380503200 TAPG-3 3 M20 50 90 12 34 130 1.1
11.410380505200 TAPG-5 5 M24 60 110 15 42 160 2
11.410380508200 TAPG-8 8 M27 70 130 20 55 190 3.6
*Bolt specification is grade 8.8.
WLL (ton)

3.15 4.75 4.25
5.3 8 7.1
8 12 11.2
