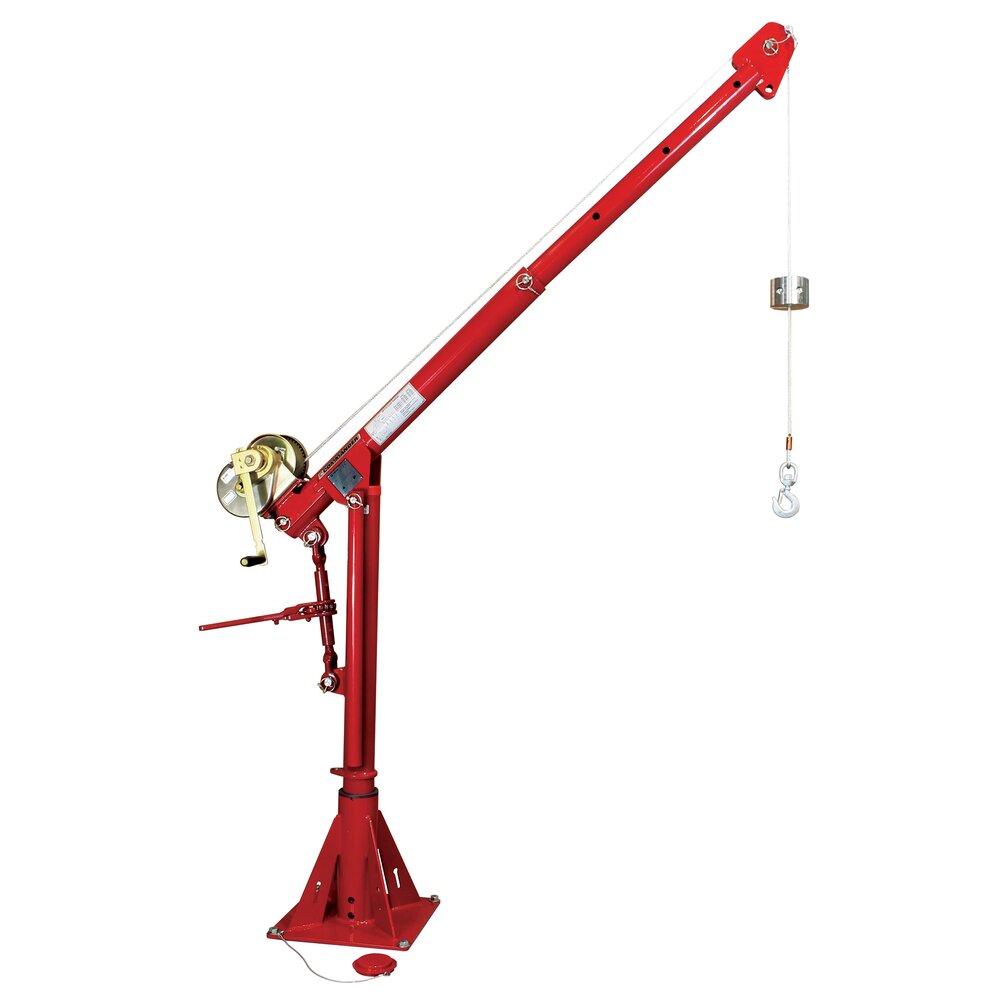

544 kg capacity portable Davit Crane

  • Load ratings up to 544 kg
  • Portable, heaviest component 16,3 kg
  • Rugged and affordable
  • Manual or power winch operation
  • 360° rotation
  • Boom adjustable to meet wide range of height and reach combinations
  • Easy, No-Tools Assembly/Disassembly (all individual components less than 16.5 kg)
  • Variety of bases
  • 2-Year warranty
  • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coat

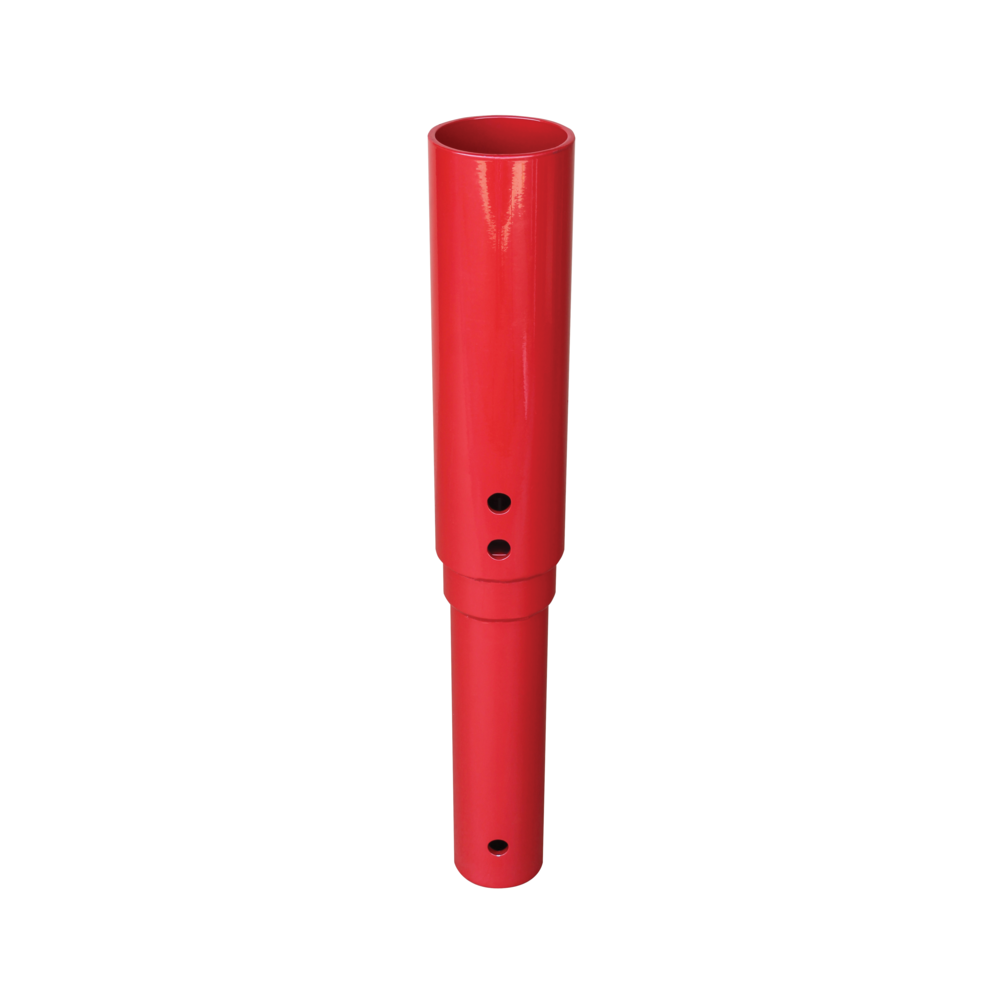

    Base extension for davit Crane 5PT10

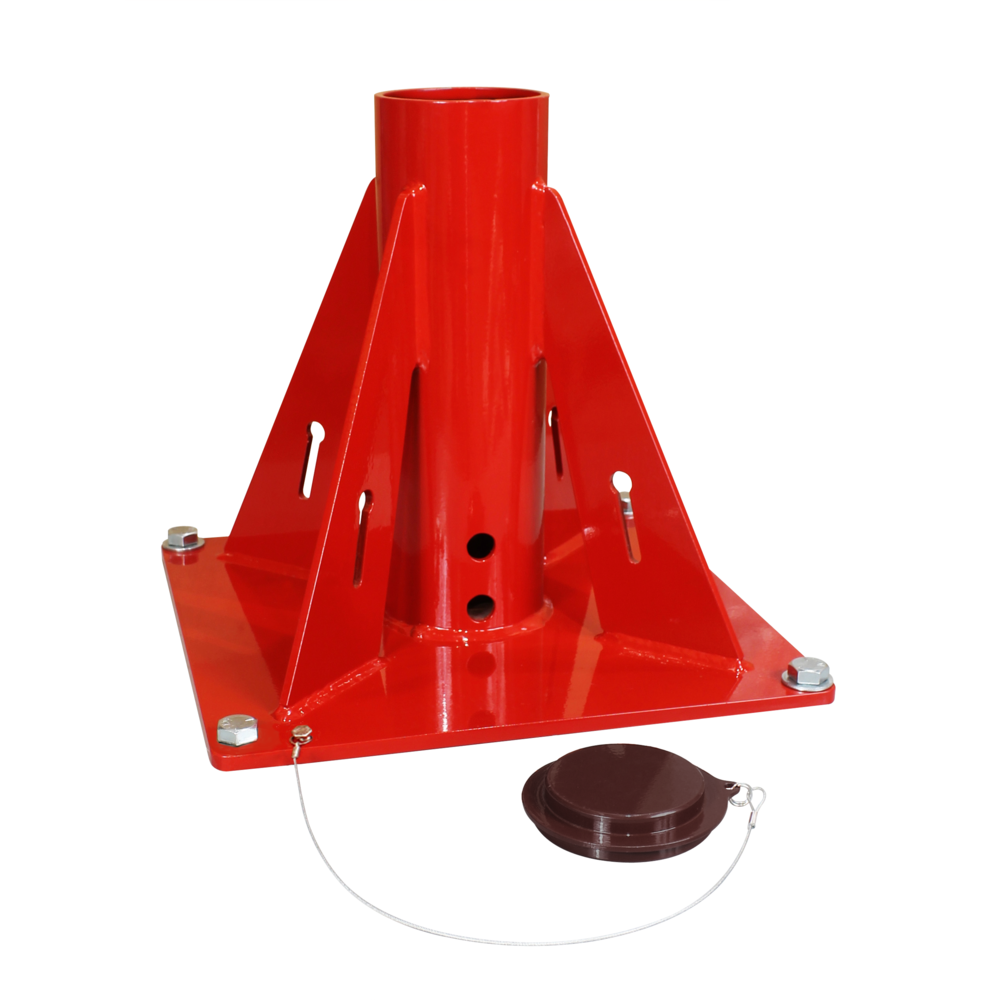

    Portable Davit Crane 5PT10 base

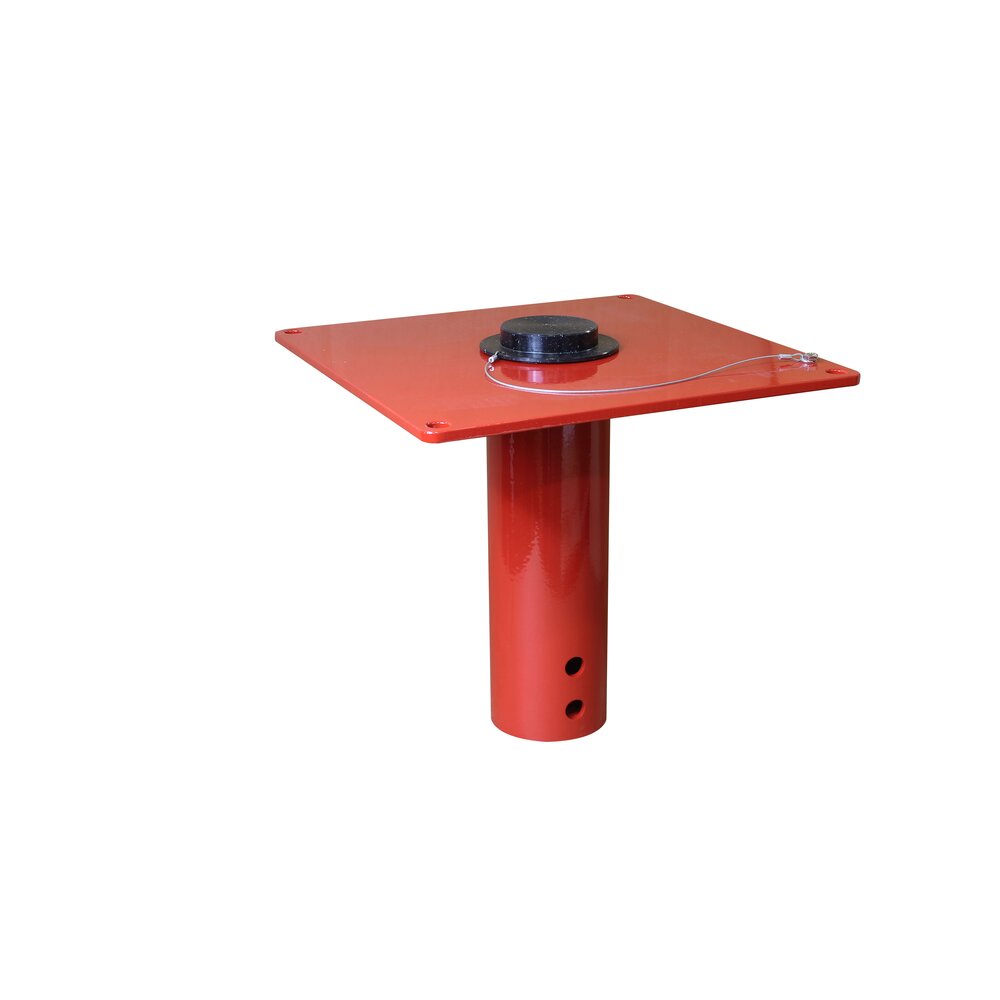

    Flush mount for davit Crane 5PT10

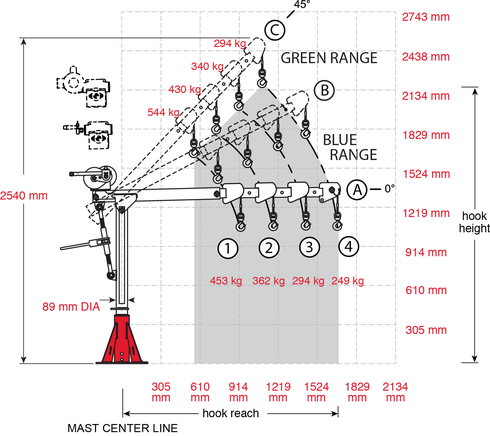

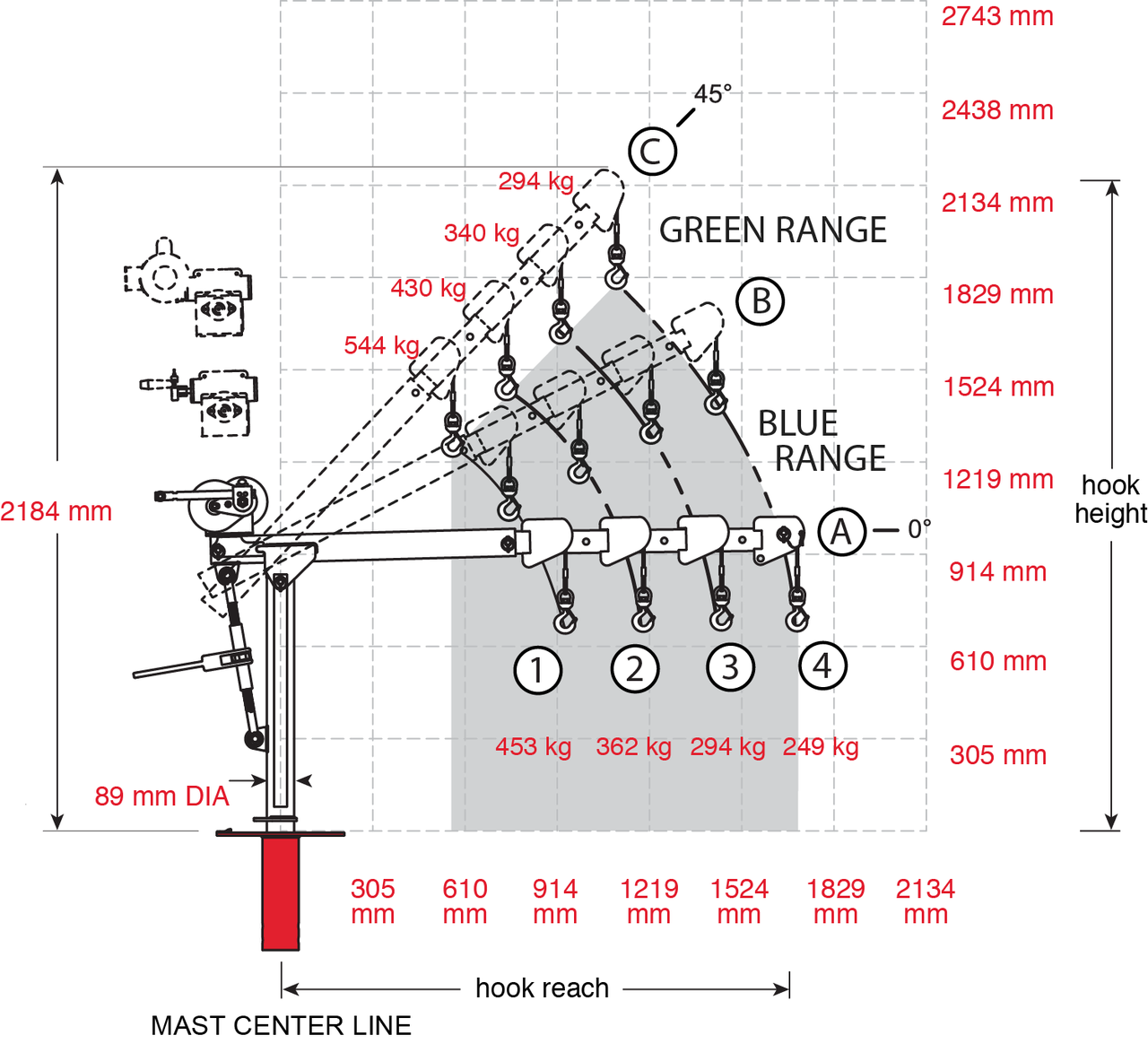

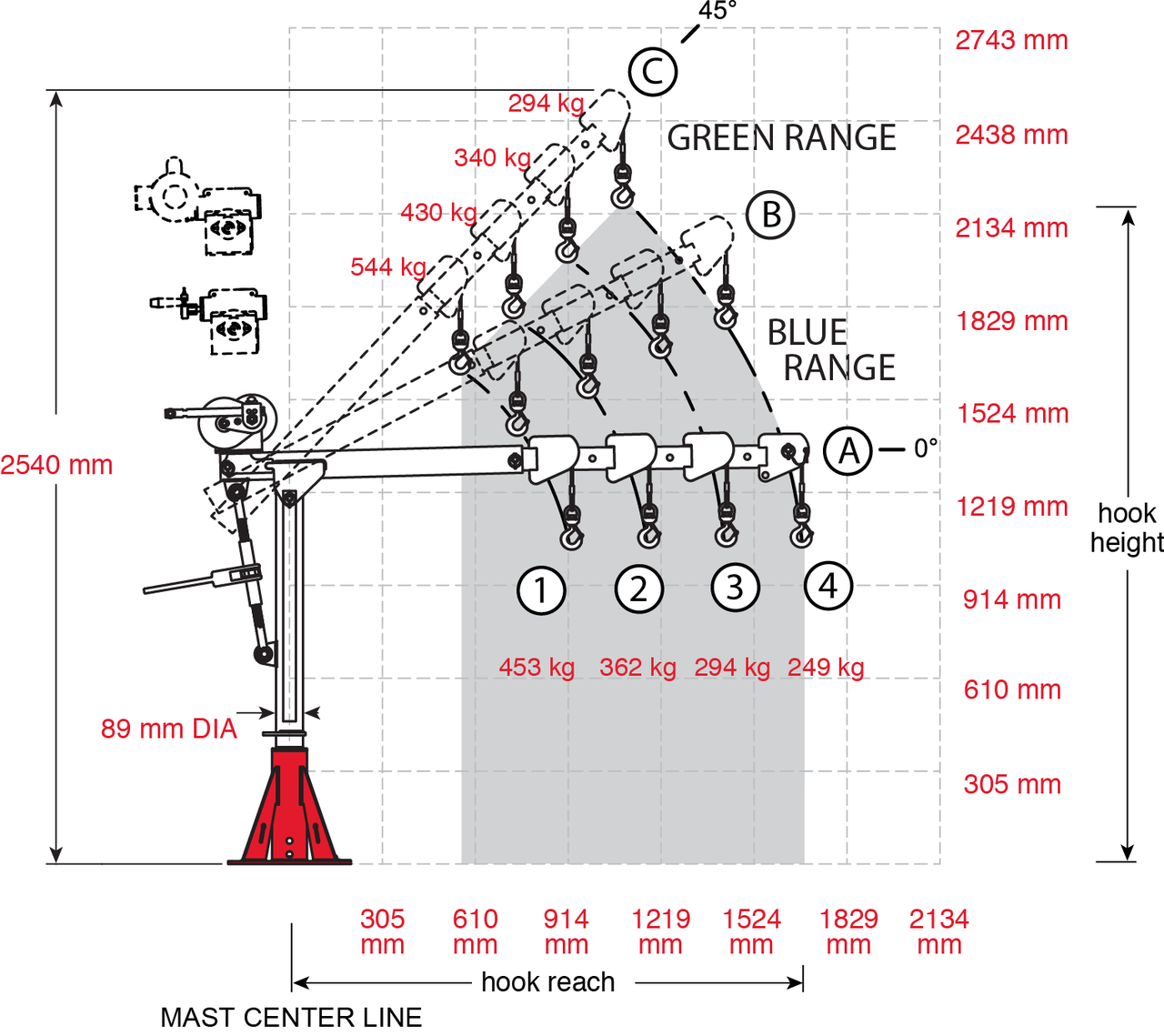

    Portable Davit Crane 5PT10 pedestal sweep Pedestal Sweep Portable Davit Crane 5PT10 load ratings Flush Sweep
    Select a row from the table, then click the add to cart button
    Part Code Code WLL
    ton
    Weight
    kg
    13.155PT10A2 5PT10 0,54 56

    Finish: galvanized, stainless 304 & 316 and three part epoxy can be ordered up on request

    Commander 2000, 5PT20 with Pedestal Base

    Boom Position A/B Range WLL (KG) Hook Reach (mm) Hook height (mm)* Lift below floor level** min-max in meters
    1st Layer Mid Drum Full Drum
    A1 907 680 544 1168 1092 0.0-19.2
    A2 725 680 544 1473 1092 0.0-19.2
    A3 589 589 544 1778 1092 0.0-19.2
    A4 498 498 498 2082 1092 0.0-19.2
    B1 907 680 544 711 1803 0.0-19.2
    B2 861 680 544 914 2032 0.0-19.2
    B3 680 680 544 1143 2235 0.0-19.2
    B4 589 589 544 1346 2463 0.0-19.2

    * Optional Base extension can provide 380mm more hook height

    Commander 2000, 5PT20 with Flush or Wall base

    Boom Position A/B Range WLL (KG) Hook Reach (mm) Hook height (mm)* Lift below floor level** min-max in meters
    1st Layer Mid Drum Full Drum
    A1 907 680 544 1168 736 0.0-19.2
    A2 725 680 544 1473 736 0.0-19.2
    A3 589 589 544 1778 736 0.0-19.2
    A4 498 498 498 2082 736 0.0-19.2
    B1 907 680 544 711 1447 0.0-19.2
    B2 861 680 544 914 1676 0.0-19.2
    B3 680 680 544 1143 1879 0.0-19.2
    B4 589 589 544 1346 2108 0.0-19.2

    * Optional Base extension can provide 380mm more hook height
