Aluminum Lever Hoist POWERTEX PALH-S1

View PDF

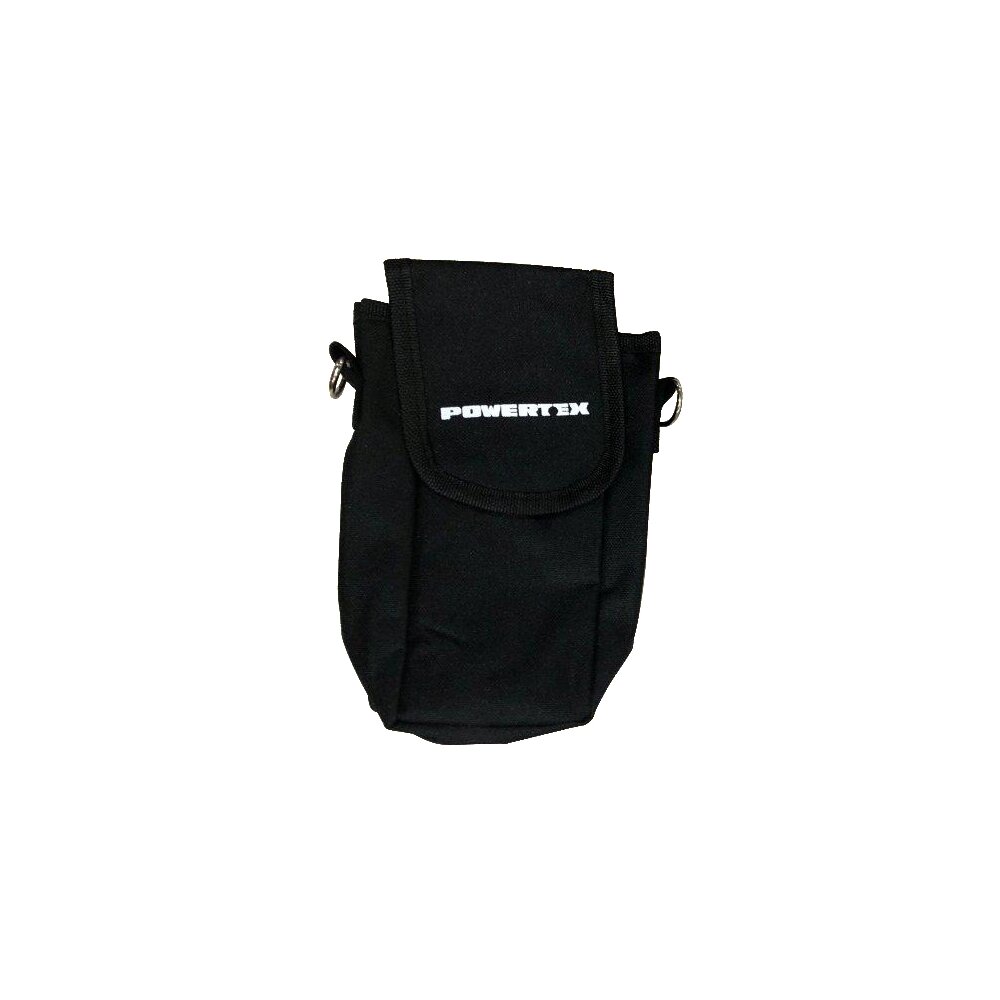

Extremely small and lightweight aluminum lever hoist. It weighs only approximately 50% of a similar standard lever hoist. The hoist can be used for lifting as well as pulling. 250 kg-750 kg hoists are delivered with a handy carrying/belt bag.

Features:

  • Safe - Each hoist is dynamic proof load t

Show more

€144.29
excl. VAT
0.25▾
  • 0.25
  • 0.5
  • 0.75
  • 1.5
  • 3
1.5▾
  • 1.5

Show all variants

In stock
Log in to webshop
Part code: 500500030150460

Filters & subcategories

Show results
Part codeWLL
ton		Lifting height
m		ModelLoad chain
mm		Stock

Price
exclude VAT

BlueprintCAD-fileNumber of fallsHand force max.
kg		Weight
kg		Delivery timeAdd to cartMore details
5005000301504600.251.5PALH-S1/250KG3 x 9
In stock
€144.29 / Piece1291.452
Part code500500030150460
WLL
ton		0.25
Lifting height
m		1.5
ModelPALH-S1/250KG
Load chain
mm		3 x 9
Stock
In stock

Price
exclude VAT

€144.29 / Piece
Blueprint
CAD-file
Number of falls1
Hand force max.
kg		29
Weight
kg		1.45
Delivery time2
5005000501504600.51.5PALH-S1/500KG4 x 12
In stock
€190.01 / Piece1272.52
Part code500500050150460
WLL
ton		0.5
Lifting height
m		1.5
ModelPALH-S1/500KG
Load chain
mm		4 x 12
Stock
In stock

Price
exclude VAT

€190.01 / Piece
Blueprint
CAD-file
Number of falls1
Hand force max.
kg		27
Weight
kg		2.5
Delivery time2
5005000503004600.53PALH-S1/500KG4 x 12
In stock
€205.41 / Piece1273.32
Part code500500050300460
WLL
ton		0.5
Lifting height
m		3
ModelPALH-S1/500KG
Load chain
mm		4 x 12
Stock
In stock

Price
exclude VAT

€205.41 / Piece
Blueprint
CAD-file
Number of falls1
Hand force max.
kg		27
Weight
kg		3.3
Delivery time2
5005000803004600.753PALH-S1/750KG5 x 15
10-20 days
€245.11 / Piece1334.320
Part code500500080300460
WLL
ton		0.75
Lifting height
m		3
ModelPALH-S1/750KG
Load chain
mm		5 x 15
Stock
10-20 days

Price
exclude VAT

€245.11 / Piece
Blueprint
CAD-file
Number of falls1
Hand force max.
kg		33
Weight
kg		4.3
Delivery time20
5005001503004601.53PALH-S1/1500KG7,1 x 20,1
10-20 days
€306.31 / Piece1428.220
Part code500500150300460
WLL
ton		1.5
Lifting height
m		3
ModelPALH-S1/1500KG
Load chain
mm		7,1 x 20,1
Stock
10-20 days

Price
exclude VAT

€306.31 / Piece
Blueprint
CAD-file
Number of falls1
Hand force max.
kg		42
Weight
kg		8.2
Delivery time20
50050030030046033PALH-S1/3000KG7,1 x 20,1
In stock
€456.63 / Piece24312.42
Part code500500300300460
WLL
ton		3
Lifting height
m		3
ModelPALH-S1/3000KG
Load chain
mm		7,1 x 20,1
Stock
In stock

Price
exclude VAT

€456.63 / Piece
Blueprint
CAD-file
Number of falls2
Hand force max.
kg		43
Weight
kg		12.4
Delivery time2
Powertex
  • The product is equipped with RFID chip

Extremely small and lightweight aluminum lever hoist. It weighs only approximately 50% of a similar standard lever hoist. The hoist can be used for lifting as well as pulling. 250 kg-750 kg hoists are delivered with a handy carrying/belt bag.

Features:

  • Safe - Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction with aluminum covers
  • Durable construction with powder coated finish and plated frame parts
  • Lever hoist is chromium 6 free
  • Sealed bearings inside maximize efficiency and serviceability.
  • Sprocket wheel surface treated against wear and corrosion
  • Safe and well covered automatic load reaction break
  • Equipped with double brake pawls
  • Fine calibrated Electro Galvanized (European made) load chain for smooth operation
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • 14 language User manual enclosed with each hoist
  • Spare parts available
  • Material: Durable aluminium/steel construction, rubber handle
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain type , Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: White powder coated body, side plate assembly and hooks black powder coated
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
