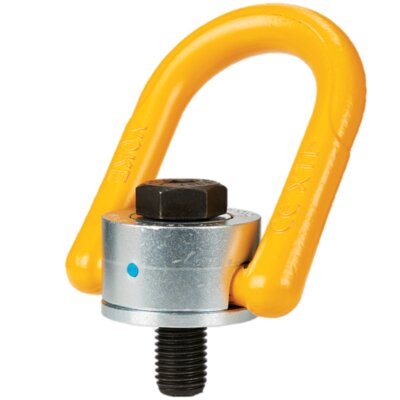

• The product is equipped with RFID chip
  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
  • Features: Built-in RFID/NFC chip
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Painted
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10

After click on the “Show table” button, you will see the table with all technical details about the product.

Filters

Show more filters

Select the variant of your choice. Add it in the cart for purchase or request quotation.
