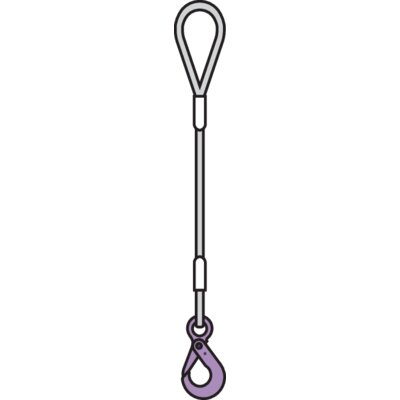

Wire Rope Lifting Sling WLS-116

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)

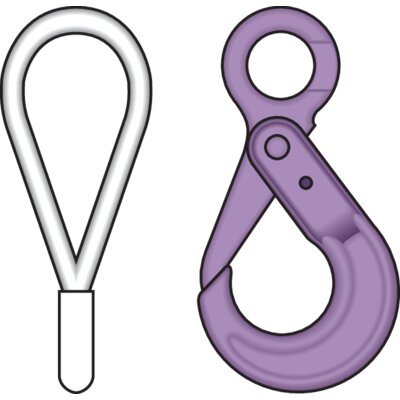

Design: Soft eye in one end and self-locking safety hook in other end, mechanical aluminium spliced.

Load table at Technical Data -> Show table

Please specify the needed

Show more

Show table

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)
Design: Soft eye in one end and self-locking safety hook in other end, mechanical aluminium spliced.

Load table at Technical Data -> Show table

Please specify the needed (working) length and eye length with your request.

Other rope construction and/or end-terminations such as master links, shackles, hooks, etc.. possible on request. In that case, please check our website for more standard wire rope slings. You can also contact us to discuss the possible options or specify it with your request.

Contact us




Steel Wire Rope Sling - Steel Core 2

ø 3 mm - 7 mm 6x19M WSC -1960N/mm2 / ø8 mm and up 6X36WS IWRC -1960N/mm2  - EN 13414-1

Safety Factor 5:1

Rope dia Ø 1-part 2-part 3-4-part Endless
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60 andlos-rakt andlos-snarat andlos-uform
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Working load limit (WLL) in tons
3 0,12 0.09 0.23 0,16 0,12 0,25 0,18 0,23 0,19 0,47
4 0,21 0,17 0,42 0,29 0,21 0,44 0,31 0,42 0,33 0,84
5 0,32 0,26 0,65 0,45 0,32 0,68 0,49 0,65 0,52 1,30
6 0,47 0,37 0,94 0,66 0,47 0,98 0,70 0,94 0,75 1,87
7 0,64 0,51 1,28 0,89 0,64 1,34 0,96 1,28 1,02 2,56
8 0,82 0,66 1,64 1,15 0,82 1,72 1,23 1,64 1,31 3,28
9 1,04 0,83 2,07 1,45 1,04 2,18 1,56 2,07 1,66 4,15
10 1,28 1,02 2,56 1,79 1,28 2,69 1,92 2,56 5,05 5,12
11 1,55 1,24 3,10 2,17 1,55 3,25 2,32 3,10 2,48 6,20
12 1,84 1,47 3,67 2,57 1,84 3,85 2,75 3,67 2,94 7,34
13 2,17 1,73 4,33 3,03 2,17 4,55 3,25 4,33 3,47 8,66
14 2,51 2,01 5,03 3,52 2,51 5,28 3,77 5,03 4,02 10,06
16 3,29 2,63 6,57 4,60 3,29 6,90 4,93 6,57 5,26 13,14
18 4,15 3.,32 8,30 5,81 4,15 8,71 6,22 8,30 6,64 16,59
20 5,12 4,10 10,24 7,17 5,12 10,75 7,68 10,24 8,19 20,48
22 6,20 4,96 12,41 8,69 6,20 13,03 9,31 12,41 9,93 24,82
24 7,38 5,90 14,76 10,33 7,38 15,5 11,07 14,76 11,81 29,51
26 8,66 6,93 17,33 12,13 8,66 18,19 13,00 17,33 13,86 34,65
28 10,04 8,03 20,08 14,06 10,04 21,08 15,06 20,08 16,06 40,16
32 13,12 10,50 26,25 18,37 13,12 27,56 19,69 26,25 21,00 52,49
36 16,59 13,67 33,19 23,23 16,59 34,84 24,89 33,19 26,55 66,37
40 20,56 16,45 41,11 28,78 20,56 43,17 30,84 41,11 32,89 82,23
44 24,78 19,82 49,56 34,69 24,78 52,04 37,17 49,56 39,65 99,12
48 29,55 36,64 59,10 41,37 29,55 62,06 44,33 59,10 47,28 118,21
52 34,69 27,75 69,38 48,57 34,69 72,85 52,04 69,38 55,51 138,76
Factor (KL) 2 0,8 2 1,4 1 2,1 1,5 2 1,6 4
