Terrier

Clamp for vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures, steel plates and structures. Also useful as a “big-jaw” opening clamp. Lifting of longer sections should be done with a spreader beam.
Model TSHP: Standard clamp
Model TSHP-A : Equiped with adjustable Jaw opening.

Features:

  • Standard with 3 pivots for extra powerful clamping force
  • Easy handling of workpieces in and out of lathe due to extra small W-dimensions
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Maintenance-friendly, easy to exchange parts which are available upon request



  • Marking: CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Note: Hardness level of the material surface may not exceed 37 HRC (345 HB, 1166 N/mm2).
  • Warning: Min. load is 10% of max. WLL.

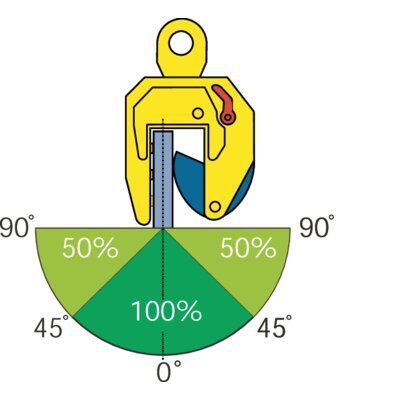

    TSHP_m2

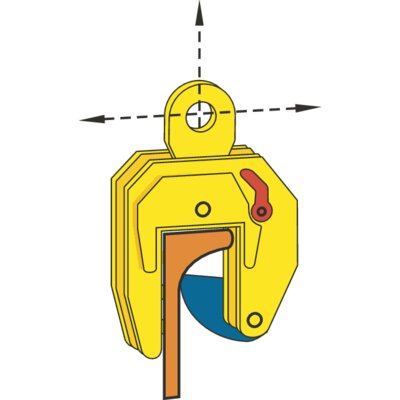

    TSHP_m3
    TSHP_m
    Select a row from the table, then click the add to cart button
    Part Code Code WLL
    ton
    Jaw width
    mm
    S
    mm
    T
    mm
    U
    mm
    V
    mm
    W
    mm
    X
    mm
    Y
    mm
    Weight
    kg
    16.01860110 1 TSHP 1 0-80 207 70 520 257 41 68 17 19
    16.01860155 1.5 TSHP-A 1,5 0-155 160 70 523 256-333 62 66 16 18
    16.01860111 1.5 TSHP 1,5 0-80 207 70 520 257 41 68 16 19
