Stainless steel lifting chain, electrically welded and stamped, guaranteed compatible with Connex CWI connectors.

Standard: Similar DIN 5687-1

The WOX chain is particularly suited for use in water and wastewater applications. It can also be used in connection with chemicals and food products; however, restrictions will apply.

  • Material: 1.4404 (AISI 316L).
  • Marking: According to standard
  • Finish: Brightly polished.
  • Standard: EN 818-2
  • Safety factor: 4:1
  • Grade: 6

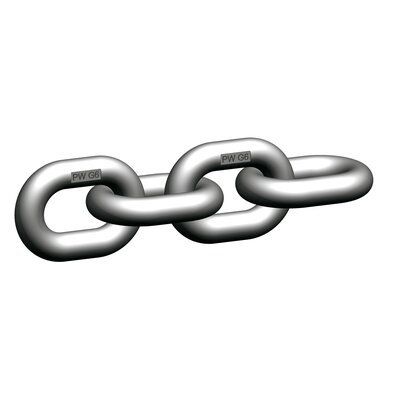

WOX Kette G6
Select a row from the table below, then click the add to cart button
Part Code Chain diameter
mm
WLL
ton
Min. breaking force
kN
Inside width b1 min
mm
Outside width b2 max.
mm
t
mm
Weight
kg/m
CAD
11.6337931 4 0,4 16 5,8 14,8 12 0,4
11.6338094 5 0,63 25 7,5 18,5 15,1 0,61
11.6338110 6 0,9 37,5 8 21,5 18 0,88
11.6338113 7 1,25 50 9,5 25,2 21 1,19
11.6338116 8 1,6 63 10,8 28,6 24 1,53
11.6339568 10 2,5 100 13,5 36,0 30 2,4
11.6339904 13 4,25 170 17,5 46,8 39 4,05
11.6340205 16 6,3 250 21,5 57,6 48 6
* WOX 20-5 is grade 5
** WOX 26-4+ is grade 4+
