Vertikaliam plieninių plokščių kėlimui ir sukimui.
Tinka standartinėms plieninėms medžiagoms, kurių paviršiaus kietumas yra iki 30 HRC.
- Medžiaga: Plienas
- Žymėjimas: Atitinka standartą, CE žymėjimas
- Padengimas: Dažyta, geltonai
- Standartas: EN 13155
- Pastaba: Keliamų detalių svoris turi būti ne mažesnis kaip 20 % maksimalios leistinos apkrovos!
- Dėmesio: Negalima termiškai apdoroti!
- Atsargos koeficientas: 4:1

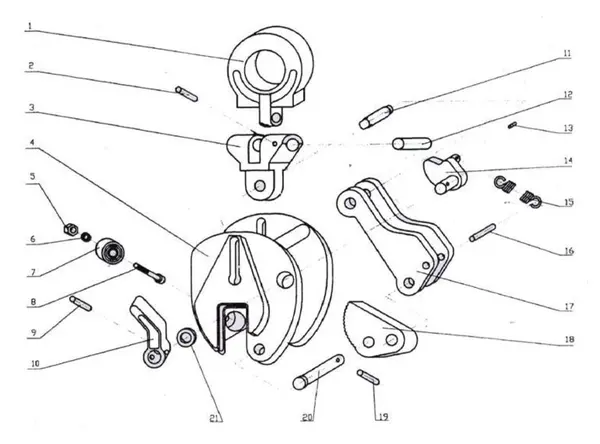

ATSARGINĖS DALYS
| LTABT05VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT08 |
| LTABT05VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT08 |
| LTABT05VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT08 |
| LTABT05VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT08 |
| LTABT05VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT08 |
| LTABT05VOS06 | Spare part set no. 6 | Function lever / Locking exxentric assy | Part nos. 9-10, 13-14, 21 | LTABT08 |
| LTABT05VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT08 |
| LTABT10VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT10 |
| LTABT10VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT10 |
| LTABT10VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT10 |
| LTABT10VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT10 |
| LTABT10VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT10 |
| LTABT10VOS06 | Spare part set no. 6 | Function lever / Locking exxentric assy | Part nos. 9-10, 13-14, 21 | LTABT10 |
| LTABT10VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT10 |
| LTABT20VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT20 |
| LTABT20VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT20 |
| LTABT20VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT20 |
| LTABT20VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT20 |
| LTABT20VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT20 |
| LTABT20VOS06 | Spare part set no. 6 | Function lever / Locking exxentric assy | Part nos. 9-10, 13-14, 21 | LTABT20 |
| LTABT20VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT20 |
| LTABT30VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT30 |
| LTABT30VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT30 |
| LTABT30VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT30 |
| LTABT30VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT30 |
| LTABT30VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT30 |
| LTABT30VOS06 | Spare part set no. 6 | Function lever / Locking exxentric assy | Part nos. 9-10, 13-14, 21 | LTABT30 |
| LTABT30VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT30 |
| LTABT45VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT45 |
| LTABT45VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT45 |
| LTABT45VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT45 |
| LTABT45VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT45 |
| LTABT45VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT45 |
| LTABT45VOS06 | Spare part set no. 6 | Function lever / Locking exxentric assy | Part nos. 9-10, 13-14, 21 | LTABT45 |
| LTABT45VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT45 |
| LTABT80VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT80 |
| LTABT80VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT80 |
| LTABT80VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT80 |
| LTABT80VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT80 |
| LTABT80VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT80 |
| LTABT80VOS06 | Spare part set no. 6 | Function lever / Locking exxentric assy | Part nos. 9-10, 13-14, 21 | LTABT80 |
| LTABT80VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT80 |
Pastaba: Tinka kėlimo griebtuvams, pagamintiems po 2017–2018 m.
Taip pat siūlomos kitos atsarginės dalys su pristatymo laiku, dėl išsamesnės informacijos kreipkitės į mūsų pardavimų skyrių.
