Crosby

General: Fits pin for open wire rope socket, boom pendant clevis and wedge socket.
Design: Cast ductile iron.

  • Finish: Painted.
6003_e_225mm_2
6003m_e_225mm
Select a row from the table below, then click the add to quote button

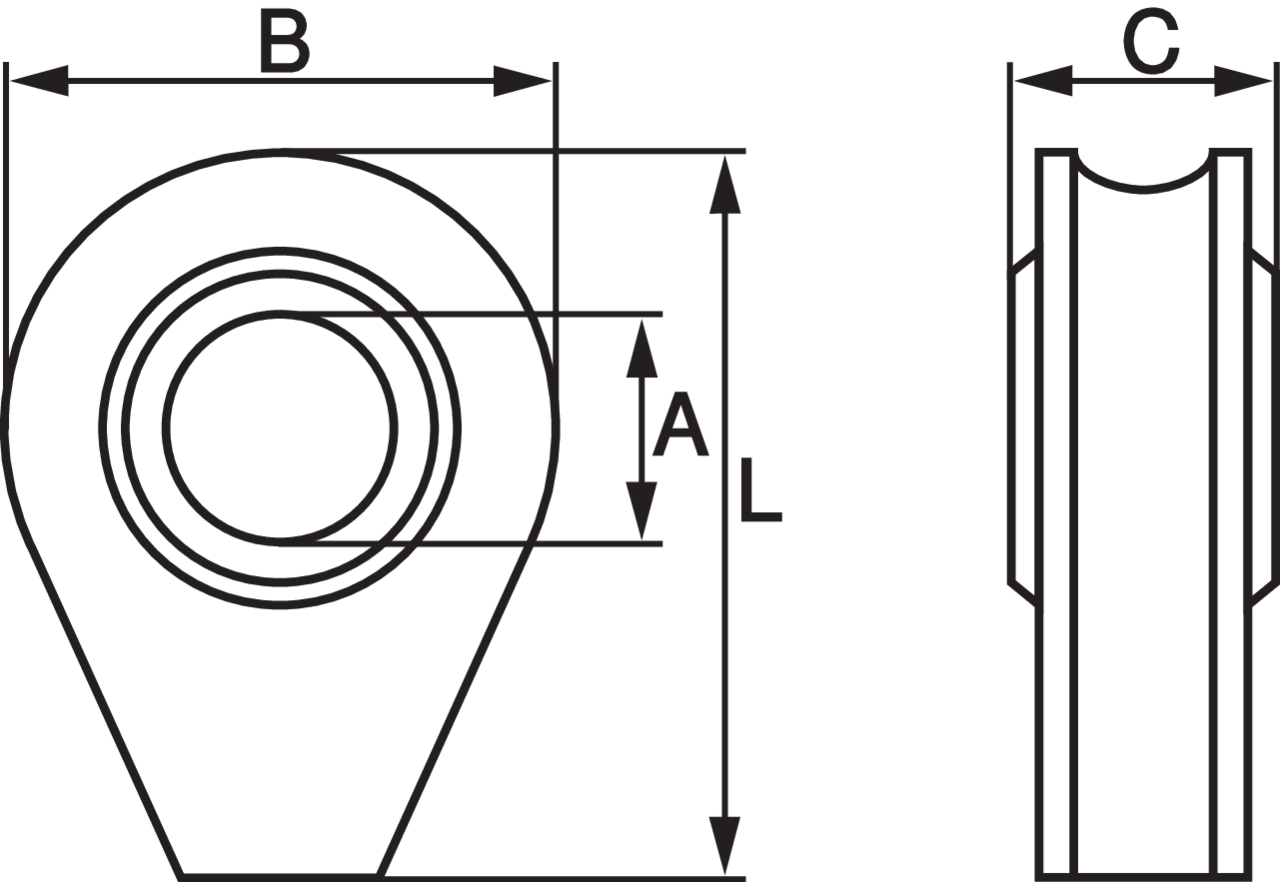

Art No Code Rope Ø (mm) A (mm) B (mm) C (mm) L (mm) A tolerance of approx Weight
kg
CAD
10.271037121 6002 13 26,9 54,0 22,4 71,5 ± 5 % 0.28
10.271037149 6003 16 33,3 86 28,7 119 ± 4 % 1
10.271037167 6004 18-20 38,1 86 35,1 119 ± 3 % 1.1
10.271037201 6006 24-26 54 114 46 154 ± 3 % 2.4
10.271037185 6005 22 44,5 114 41,4 154 ± 3 % 2.5
10.271037229 6007 28-30 60,5 137 52,5 184 ± 2 % 4.2
10.271037247 6008 32-35 67 137 58,5 184 ± 2 % 4.5
