• Not for lifting

General: Wire rope clips for steel wire rope for general applications.
Design: Forged U-bolt and casted bases.


  • Material: Bases AISI 316, u-bolt AISI 304.
  • Note: Follow the fitting instructions in the user manual before use.
kaus_ss
2001m_225mm
Select a row from the table below, then click the add to quote button

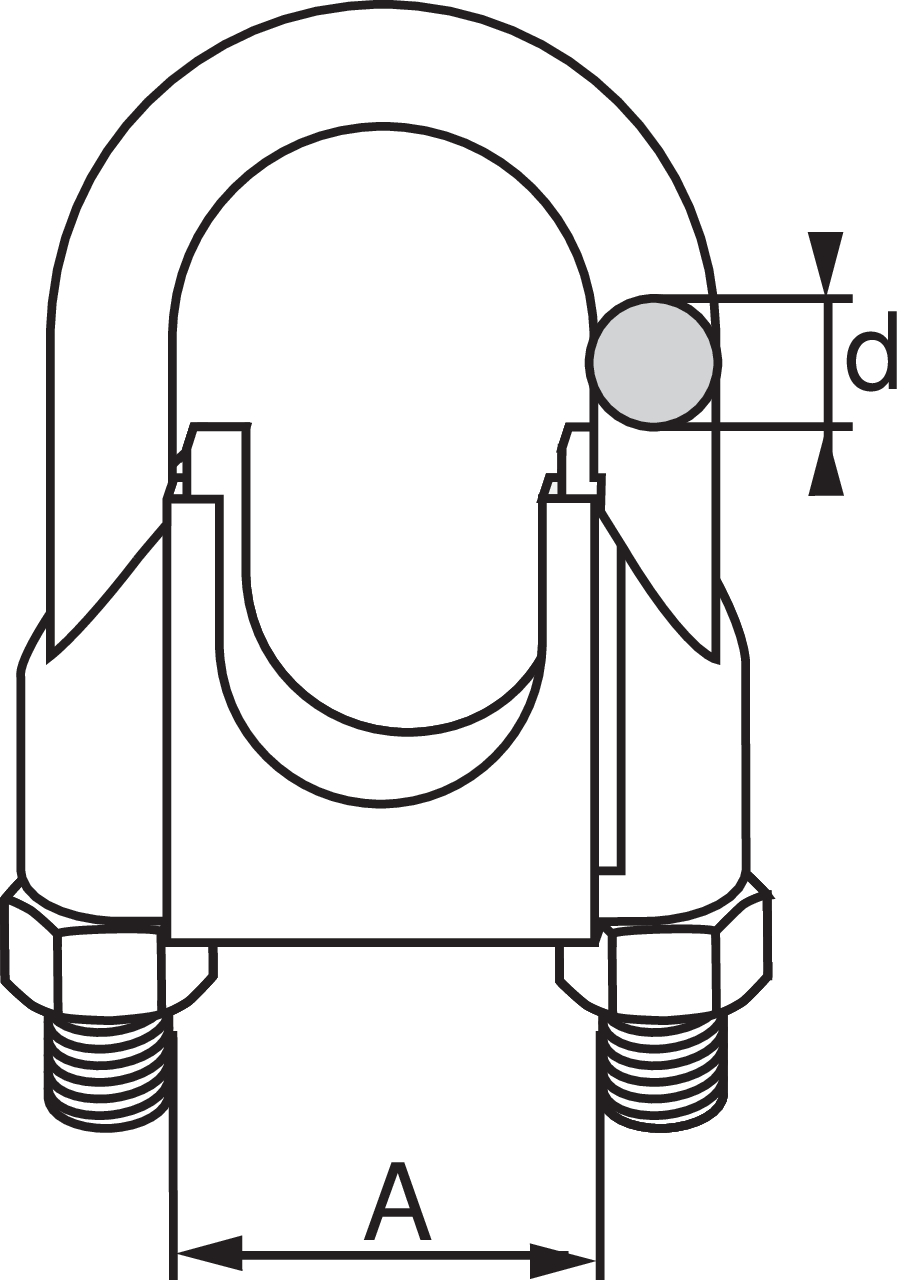

Part Code Diameter
mm
A
mm
D
mm
Weight
kg/100pc
CAD
10.1674103S 3 5 4 1.4
10.1674105S 5 6 5 1.5
10.1674106S 6 8 5 2.1
10.1674108S 8 10 6 4.1
10.1674110S 10 13 8 6.8
10.1674112S 12 14 10 13

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
