General: Intended for general lifting purposes.

Design: Snatch block type with covering side plates. Provided with shackel and pressure lube fittings. Furnished with bronze bushing.

  • Marking: Working load limit (WLL).
  • Finish: Painted.
  • Safety factor: 4:1.
Powertex snatch block 8 T LS type

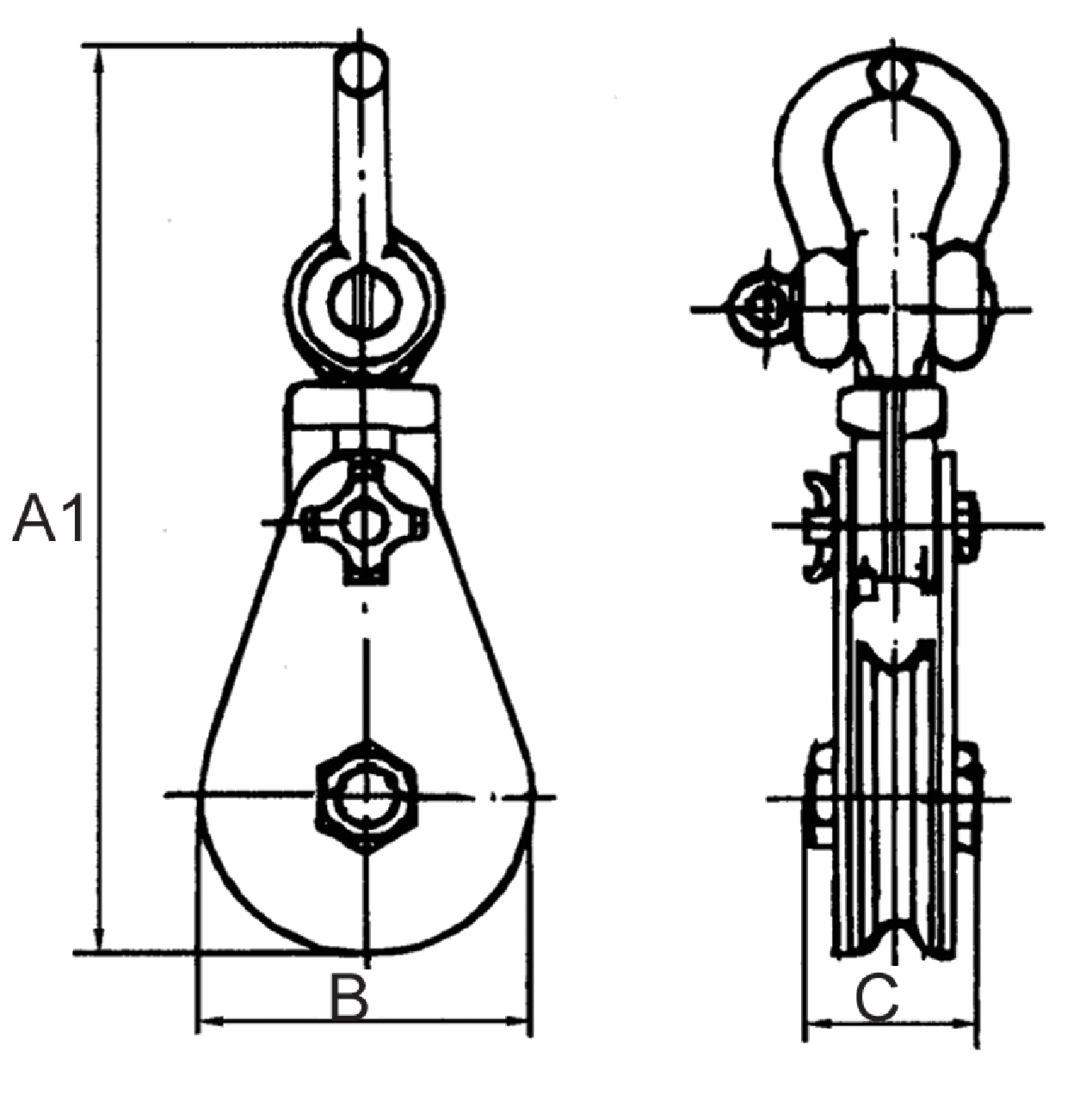

Powertes snatch block LS type drawing
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
A1 (mm) B (mm) C (mm) Rope Ø (mm) Sheave dia (mm) Weight
kg
16.15PSBS020075 2 286 82 70 7-9 75 4
16.15PSBS040115 4 345 120 70 10-12 115 6
16.15PSBS040150 4 399 160 70 16-19 150 14
16.15PSBS080200 8 528 210 93 19-22 200 16
16.15PSBS100250 10 679 260 115 24-26 250 38
16.15PSBS120300 12 767 310 133 24-26 300 56
16.15PSBS150200 15 663 210 102 22-24 200 24
16.15PSBS150300 15 884 310 133 24-26 300 65
16.15PSBS220365 22 952 365 140 28-32 365 90
16.15PSBS300300 30 1,023 310 193 28-30 300 125
16.15PSBS300400 30 1,126 415 155 32-35 400 135
16.15PSBS350350 35 1,058 365 193 32-35 350 130
16.15PSBS500600 50 1,525 625 275 46-50 600 418
16.20PSBS120250 12 702 260 125 20-22 250 39.5
