Powertex

Design: Flat woven, colour coded slings with folded soft eyes.
Stretch with working load: 2-3%.
Length tolerance: Nominal length ±3%.

  • Material: Polyester. Resistant to most acids but not to strong alkalis.
  • Marking: The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instructions.
  • Temperature range: Approx. -40°C - +100°C.
  • Standard: EN 1492-1
  • Safety factor: 7:1.
Strop_e_225mm_2

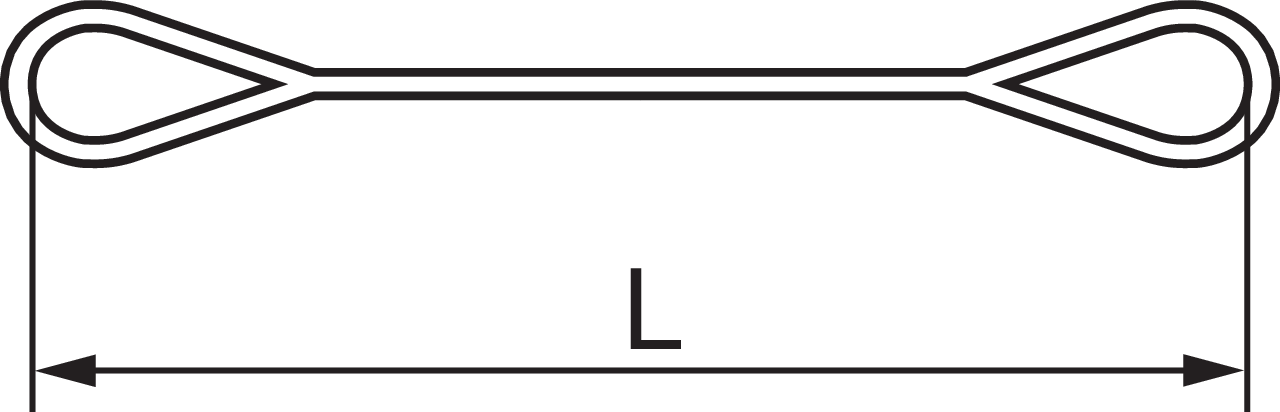

length_90_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL Type Length (m) Width (mm) Coleur CAD
12.30PWE010010 1 HB01010 1 50 Violet
12.30PWE010030 1 HB01030 3 50 Violet
12.30PWE010040 1 HB01040 4 50 Violet
12.30PWE010050 1 HB01050 5 50 Violet
12.30PWE010060 1 HB01060 6 50 Violet
12.30PWE010020 1 HB01020 2 50 Violet
12.30PWE020010 2 HB02010 1 60 Green
12.30PWE020020 2 HB02020 2 60 Green
12.30PWE020030 2 HB02030 3 60 Green
12.30PWE020040 2 HB02040 4 60 Green
12.30PWE020050 2 HB02050 5 60 Green
12.30PWE020060 2 HB02060 6 60 Green
12.30PWE020080 2 HB02080 8 60 Green
12.30PWE030050 3 HB03050 5 90 Yellow
12.30PWE030080 3 HB03080 8 90 Yellow
12.30PWE030060 3 HB03060 6 90 Yellow
12.30PWE030040 3 HB03040 4 90 Yellow
12.30PWE030020 3 HB03020 2 90 Yellow
12.30PWE030030 3 HB03030 3 90 Yellow
12.30PWE040030 4 HB04030 3 120 Grey
12.30PWE040040 4 HB04040 4 120 Grey
12.30PWE040050 4 HB04050 5 120 Grey
12.30PWE040060 4 HB04060 6 120 Grey
12.30PWE040080 4 HB04080 8 120 Grey
12.30PWE050060 5 HB05060 6 150 Red
12.30PWE050080 5 HB05080 8 150 Red
12.30PWE050040 5 HB05040 4 150 Red
12.30PWE050050 5 HB05050 5 150 Red
12.30PWE050030 5 HB05030 3 150 Red
12.30PWE060030 6 HB06030 3 180 Brown
12.30PWE060040 6 HB06040 4 180 Brown
12.30PWE060050 6 HB06050 5 180 Brown
12.30PWE060060 6 HB06060 6 180 Brown
12.30PWE060080 6 HB06080 8 180 Brown
XXX = EWL the length in three digits 1m = 010 / 1,5m = 015. Available with a capacity up to 40tons.
