General: Permanent lifting magnets are versatile, easy to use and with a good factor of safety. The magnets need limited maintenance and keep their magnetic power for a long lifetime. The magnets are very powerful compared to their dimensions and are light weight. Handle with positive locking device and double locking for extra safety.

  • Material: High quality magnetic material in strong and solid housing
  • Marking: According to standard, WLL, CE, individual serial number, manufacturer ID, manufacturing date and a warning tag.
  • Temperature range: -40°C - +80°C.
  • Finish: Powder painted
  • Standard: EN 13155
  • Note: Max. lifting capacity is based upon lifting clean, flat, low-carbon steel plate with the full area of the magnet’s pole area in contact with the load.
  • Safety factor: 3,5:1.
Magneticlifter
pml_m
Select a row from the table below, then click the add to quote button

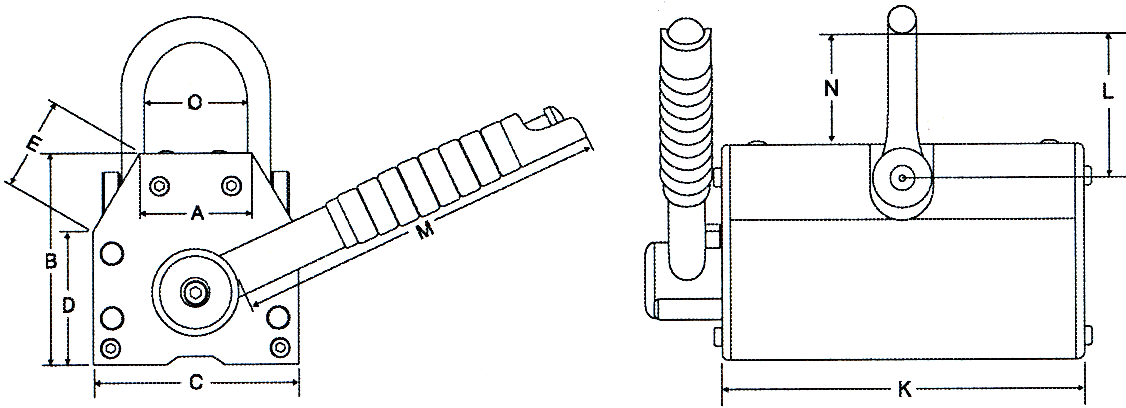

Part Code Code WLL
ton
Max. handle turning force kgf Max. handle turning force kN A
mm
B
mm
C
mm
D
mm
E
mm
K
mm
L
mm
M
mm
N
mm
O
mm
Weight
kg
CAD
16.45PLM001 PLM-1 0.1 < 4 0.039 29 71 64 47 29 92 54 130 45 31 3
16.45PLM003 PLM-3 0.3 < 8 0.078 39 96 88 63 41 165 78 158 63 45 10
16.45PLM006 PLM-6 0.6 < 8 0.078 51 118 118 74 57 216 114 199 94 57 20
16.45PLM010 PLM-10 1 < 16 0.157 64 140 148 90 66 286 126 246 106 73 40
16.45PLM020 PLM-20 2 < 16 0.157 92 188 188 122 82 397 150 375 120 100 95
