General: Lifting bucket for the safe handling of loose materials. The cylindrical design reduces the risk of the bucket being snagged during lifting.
Design: Robust welded design with drain holes in the bottom. The bucket is stackable and is supplied complete with beam and chain.


Proof: Batch proof 1,5 x max last.

  • Material: Basket and beam of high-strength structural steel.
  • Marking: Maximum load and CE-markning.
  • Finish: Yellow painted.
hinke_new_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

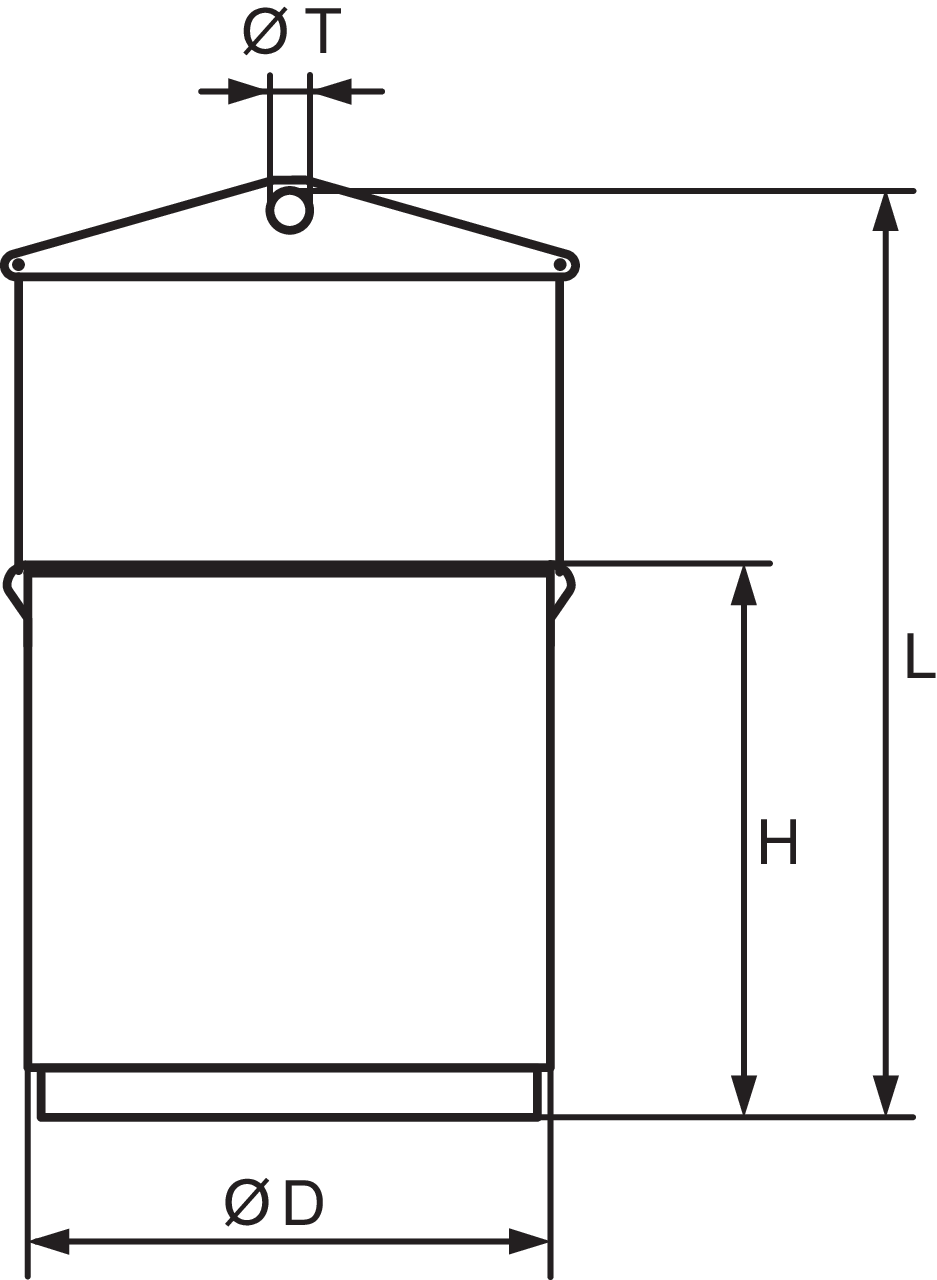

D (mm) H (mm) L (mm) T (mm) Volume liter Weight
kg
CAD
19.50HINKE05 HINKE-05 0.5 600 580 1,005 60 140 40

Download CAD
