Liftket

High duty rate.
Patented safety-brake-clutch system.
Modular hoist design.
Simply and cost effective maintenance and repair.
Different chain qualities available.
Quick and safe change between single and double fall of chain.
Low voltage control with changeable components – no printed circuit boards.

Technical data:

  • Power supply 400 V, 3 ph, 50 Hz
  • Different voltage and frequency options available on request
  • Protection class IP55
  • Insulation class F
  • 1.5 m standard control cable
  • 3 m standard lifting height
  • Different lifting height and control cable lengths available on request
  • For lifting heights of more than 20 m the safe working load will be reduced by the chain weight
  • STAR models 090/…, 091/…, 110/…
LIFTKET Electric chainhoist
Select a row from the table below, then click the add to quote button

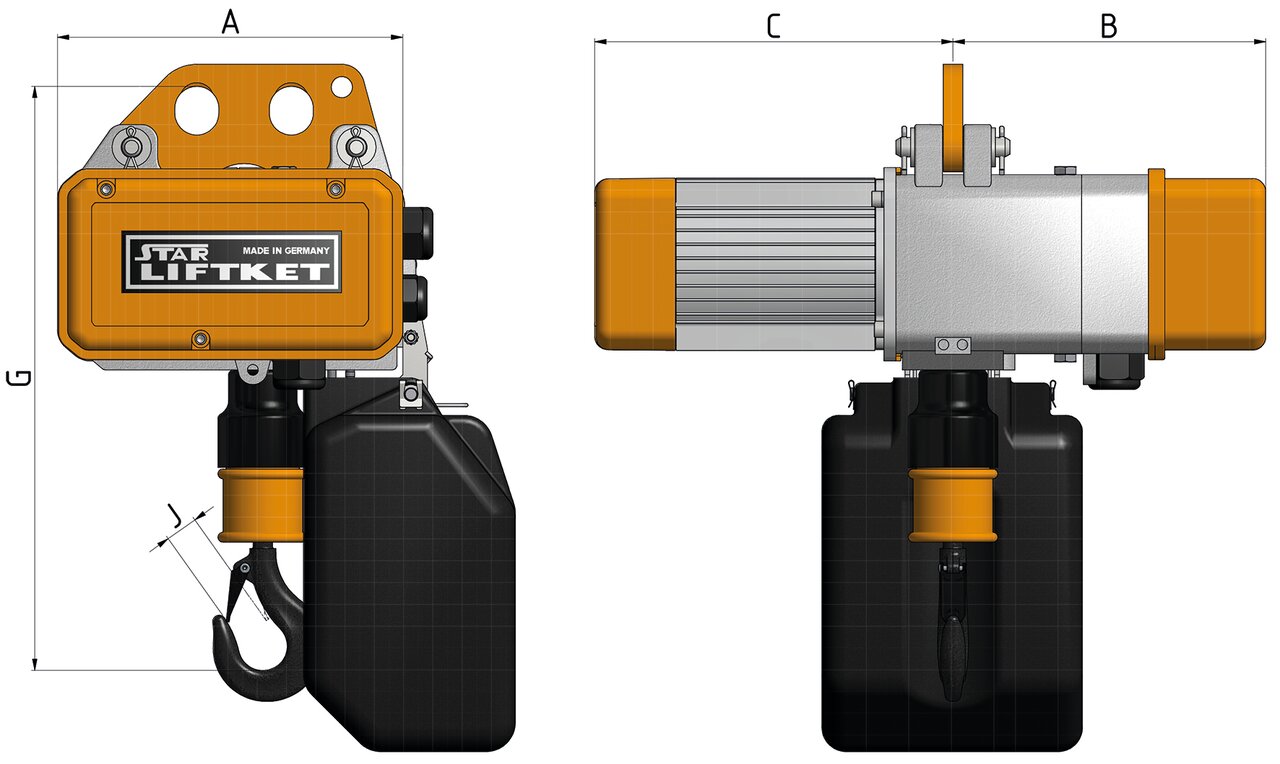

Part Code Load chain EN 818-7 (mm) Lifting speed at 50 Hz m/min Capacity double fall (kg) STAR Model Duty group of hoist FEM 9.511 Duty group of load chain EN 818-7 Duty rate [%] / Starts per hour S/h Power of lifting motor at 50 Hz kW Weight of basic version single fall (kg) Trolley type kg A
mm
B
mm
C
mm
G single fall G double fall G2 single fall G2 double fall J single fall J double fall Weight
kg
CAD
13.05 4x12 12 250 020/50 3m 1Bm 60/240 0.25 17 500 212 192 220 359 407 406 454 20 22 125
5.2x15 12/3 250 051/50 3m 2m 60/25/240 0.55/0.12 33 500 266 232 274 394 442 436 489 20 22 125
4x12 2/0.5 250 021/57 3m 2m 60/40/240 0.32/0.08 17 500 212 192 220 359 407 406 454 20 22 125
4x12 4/1 250 021/53 3m 3m 60/40/240 0.32/0.08 17 500 212 192 220 359 407 406 454 20 22 125
4x12 4 250 020/52 3m 2m 60/360 0.25 17 500 212 192 220 359 407 406 454 20 22 125
5.2x15 9/2.25 500 051/55 3m 2m 60/25/240 0.9/0.2 33 500 266 232 274 394 442 436 489 20 22 250
5.2x15 12 500 050/52 3m 1Bm 60/240 1.1 33 500 266 232 274 394 442 436 489 20 22 250
5.2x15 6/1.5 500 051/52 3m 2m 40/25/240 0.55/0.12 33 500 266 232 274 394 442 436 489 20 22 250
5.2x15 6 500 030/50 2m 2m 60/240 0.55 18 500 212 192 220 359 407 406 454 20 22 250
4x12 4/1 500 021/51 2m 2m 40/25/240 0.32/0.08 17 500 212 192 220 359 407 406 454 20 22 250
4x12 4 500 020/54 2m 1Bm 60/240 0.55 17 500 212 192 220 359 407 406 454 20 22 250
4x12 3 500 020/53 3m 2m 60/240 0.55 17 500 212 192 220 359 407 406 454 20 22 250
5.2x15 4 1 030/52 1Bm 1Bm 40/240 0.7 18 1 212 192 220 359 407 415 463 20 22 500
7.2x21 5 1 070/51 2m 2m 60/240 1.1 36 1 266 232 274 404 505 460 561 22 28 500
7.2x21 4/1 1 071/54 2m 2m 60/25/240 0.9/0.2 42 1 266 232 274 404 505 460 561 22 28 500
7.2x21 5/1.25 1 071/53 2m 2m 60/25/240 0.9/0.2 42 1 266 232 274 404 505 460 561 22 28 500
7.2x21 4 1.6 070/54 2m 2m 60/240 1.1 36 2 266 232 274 404 505 460 561 22 28 800
9x27 4 2 090/54 3m 3m 60/240 2.2 69 2 359 338 406 488 596 548 655 28 30 1,000
9x27 5/1.25 2 091/52 3m 3m 60/25/240 1.8/0.45 67 2 359 338 406 488 596 548 655 28 30 1,000
9x27 4/1 2 091/51 3m 3m 60/25/240 1.8/0.45 67 2 359 338 406 488 596 548 655 28 30 1,000
9x27 5 2 090/52 3m 3m 60/240 3 69 2 359 338 406 488 596 548 655 28 30 1,000
7.2x21 3 2 070/55 2m 2m 40/240 1.1 36 2 266 232 274 404 505 460 561 22 28 1,000
7.2x21 3/0.75 2 071/55 2m 2m 60/25/240 1.1/0.2 42 2 266 232 274 404 505 460 561 22 28 1,000
7.2x21 5 2 070/53 1Am 1Bm 60/240 1.7 42 2 266 232 274 404 505 460 561 22 28 1,000
7.2x21 4/1 2.5 071/56 1Bm 1Bm 40/25/150 2.1/0.5 48 3.2 266 232 354 420 521 478 579 22 28 1,250
7.2x21 4 2.5 070/56 1Bm 1Bm 60/240 1.7 42 3.2 266 232 274 420 521 478 279 22 28 1,250
9x27 4 3.2 090/55 2m 2m 60/240 2.2 69 3.2 359 338 406 488 596 548 655 28 30 1,600
9x27 4/1 3.2 091/55 2m 2m 60/25/240 3.0/0.75 88 3.2 359 338 406 488 596 548 655 28 30 1,600
9x27 5/1.25 3.2 091/56 2m 2m 60/25/240 3.0/0.75 88 3.2 359 338 406 488 596 548 655 28 30 1,600
9x27 6/1.5 3.2 091/58 2m 1Bm 40/25/240 4.4/1.1 103 3.2 359 338 406 488 596 548 655 28 30 1,600
9x27 8/2 3.2 091/57 1Am 1Bm 40/25/240 4.4/1.1 103 3.2 359 338 406 488 596 548 655 28 30 1,600
11.3x31 5 5 110/52 2m 2m 60/240 4 90 5 359 291 367 611 740 678 807 30 42 2,500
11.3x31 5/1.25 5 111/52 2m 2m 40/25/150 4,4/1.1 118 5 359 291 410 611 740 678 807 30 42 2,500
11.3x31 4 6.3 110/54 1Bm 1Bm 60/240 4 90 6.3 359 291 367 611 740 678 807 30 42 3,200
11.3x31 4/1 6.3 111/54 1Bm 1Bm 25/25/150 4,4/1.1 118 6.3 359 291 410 611 740 678 807 30 42 3,200

Part Code = last two digits indicates the lifting height: 06 = 6 m lifting height
* Weight with 3 m lift chain
