Elephant

YII Series lever hoists are extremely versatile, suitable for lifting and pulling in many applications.
A solid and compact design with special rust-resistant coating performs in extreme environments such as the offshore and mining industries. Extremely lightweight [9.5kg (1.6 Tonne)] The gears are completely enclosed and make the hoist highly reliable and durable meaning lower maintenance costs. One-touch change lever further improves work efficiency. Tough black body resists scratches and prevents rust. Waterproof, shock resistant gear and brake cover. The bolted rubber grip ensures safe operation of the lever hoist.

  • Material: Chain and hook, alloy steel grade 10.
  • Marking: WLL, code and CE marking.
  • Finish: Painted.
  • Safety factor: 5:1
Spak_svart_new_225mm
Select a row from the table below, then click the add to quote button

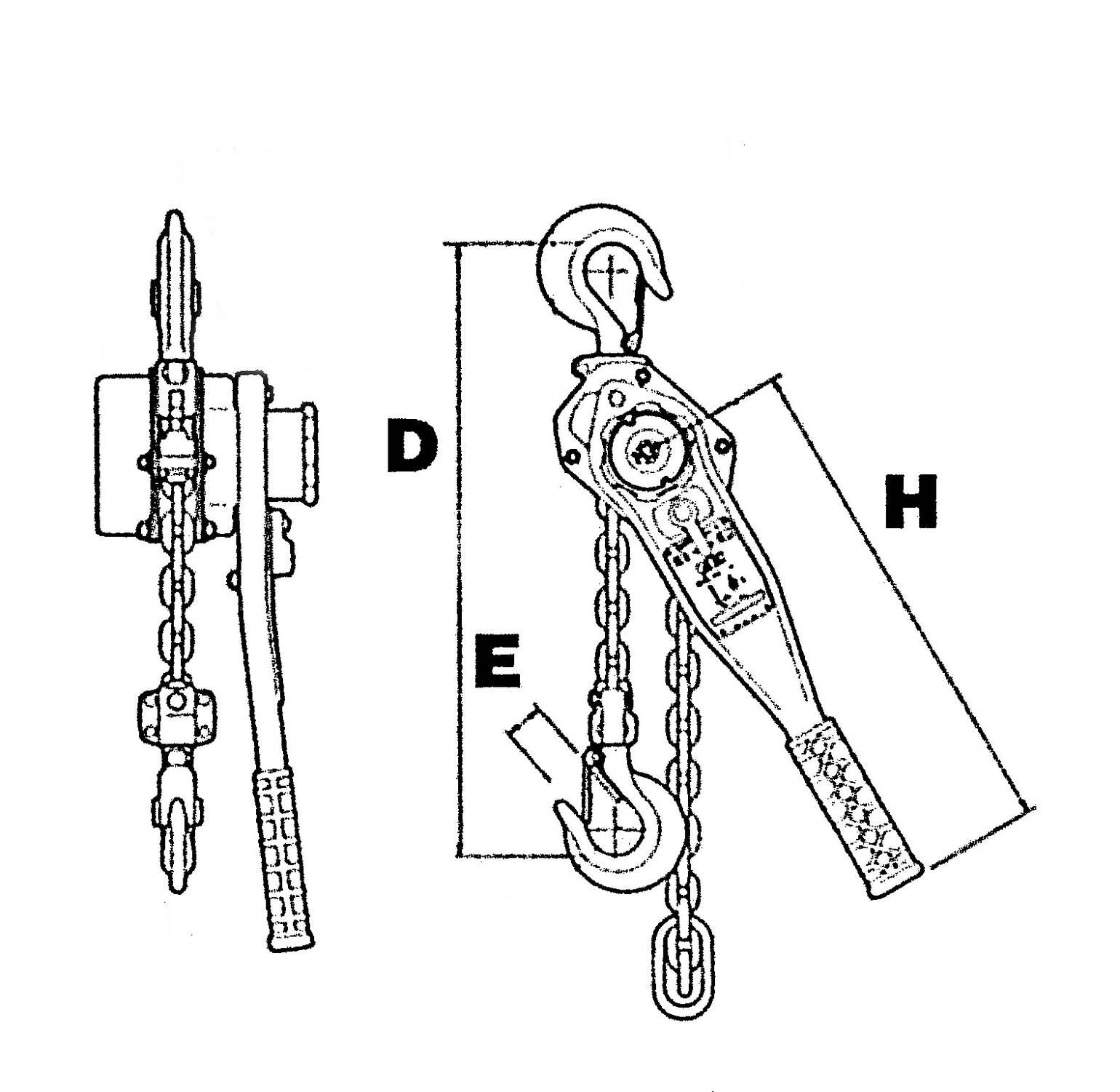

Part Code Code WLL
ton
Lifting height
m
Min Headroom
mm
Hook Opening
mm
Lever length
mm
Load chain Ø
mm
Number of falls Weight
kg
CAD
16.20YII0015030 YII-15 0.15 1 195 13 160 3 1 0.9
16.20YII0025030 YII-25 0.25 1.5 235 19 155 4,3 1 2
16.20YII0050030 YII-50 0.5 1.5 265 23 284 5 1 3.6
16.20YII0080030 YII-80 0.8 1.5 290 25 268 5,6 1 6.2
16.20YII0160030 YII-160 1.6 1.5 350 29 385 7,2 1 9.5
16.20YII0320030 YII-320 3.2 1.5 420 36 385 9,0 1 15.5
16.20YII0640030 YII-640 6.3 1.5 570 45 385 9,0 2 26.5
*Other range of lift-height available upon request.
