General: This safety hook with eye closes and locks automatically when placed under load, for greater safety.

  • Material: Alloy steel grade 12.
  • Marking: According to standard, Pewag or PW, winner pro or 12, H16, CE, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-3
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 12
SH_hook

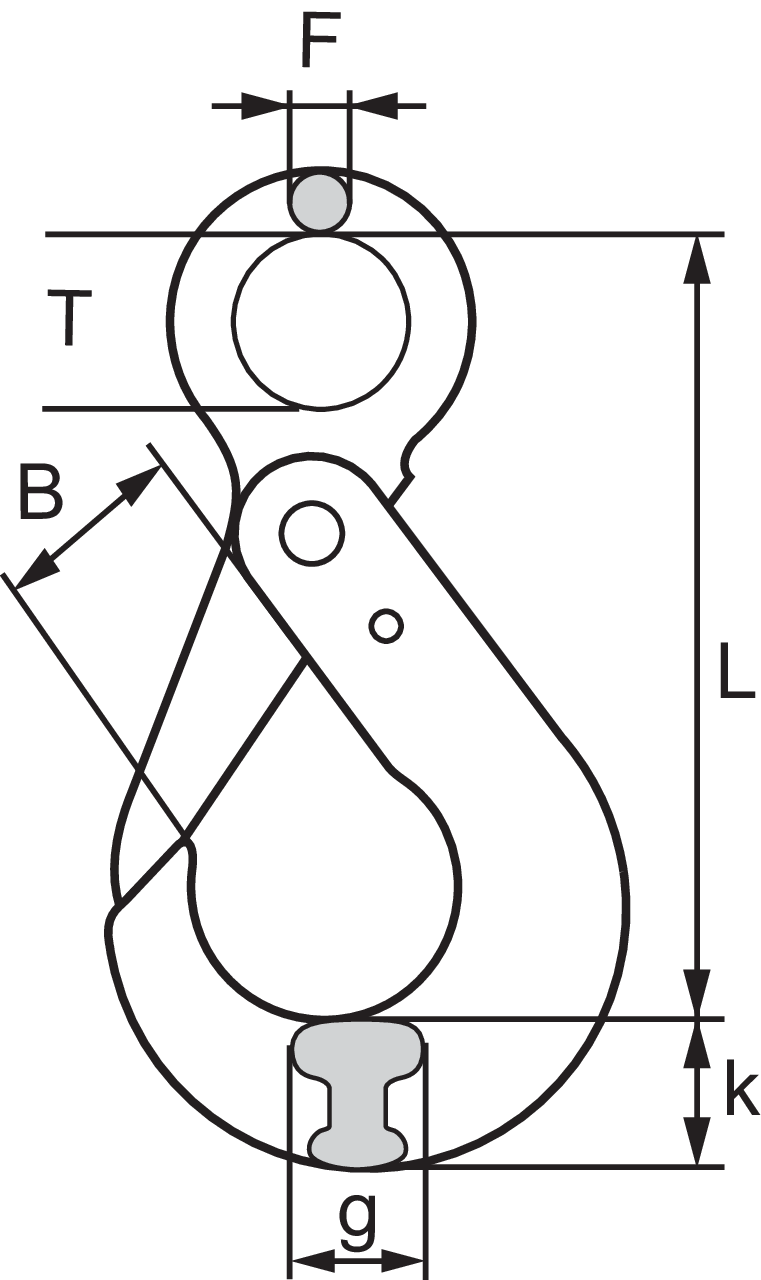

LHWP dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
L
mm
T
mm
g
mm
k
mm
F
mm
B
mm
Weight
kg
CAD
11.1787237 LHWP 7/8 3 126 25 25 25 14 89 0.9
11.1787238 LHWP 10 5 158 31 28 31 17 112 1.6
11.1787239 LHWP 13 8 205 41 34 40 22 145 3.5
