• Material: Alloy steel grade 8.
  • Marking: Working load limit, code and colour marking regarding suitable round sling.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 8
joker_e_2
Select a row from the table below, then click the add to quote button

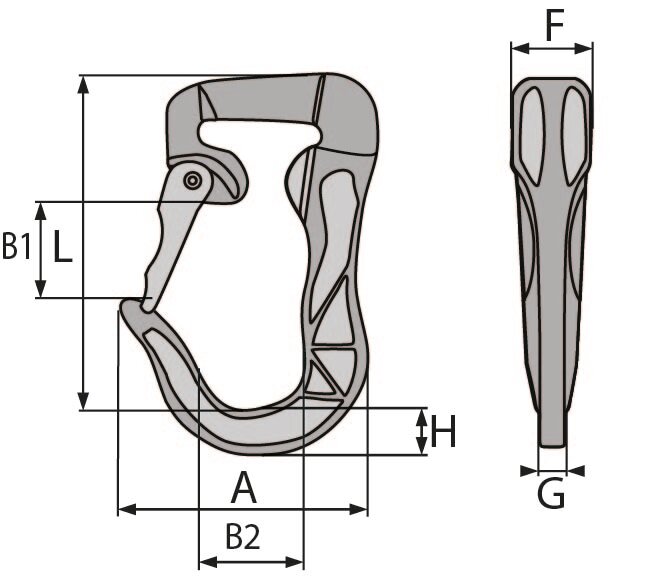

Part Code WLL
ton
Colour test2 A
mm
B1
mm
B2
mm
F
mm
G
mm
H
mm
L
mm
Weight
kg
CAD
11.10D049731 1 Violet 89 29 31 31 14 17 133 0.7
11.10D049732 2 Green 105 35 40 36 21 24 156 1.1
11.10D049733 3 Yellow 125 36 48 47 25 29 170 1.6
11.10D001240 6 Brown 155 48 60 60 35 35 215 4
11.10D062307 10 Orange 204 70 80 70 50 58 303 9.9

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
