Gunnebo Industries





  • Material: Alloy steel grade 8.
  • Marking: Code.
  • Finish: Painted.
  • Note: Not for toplift!
  • Safety factor: 4:1.
  • Grade: 8
CH_225mm_red
ch3m_micke2_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

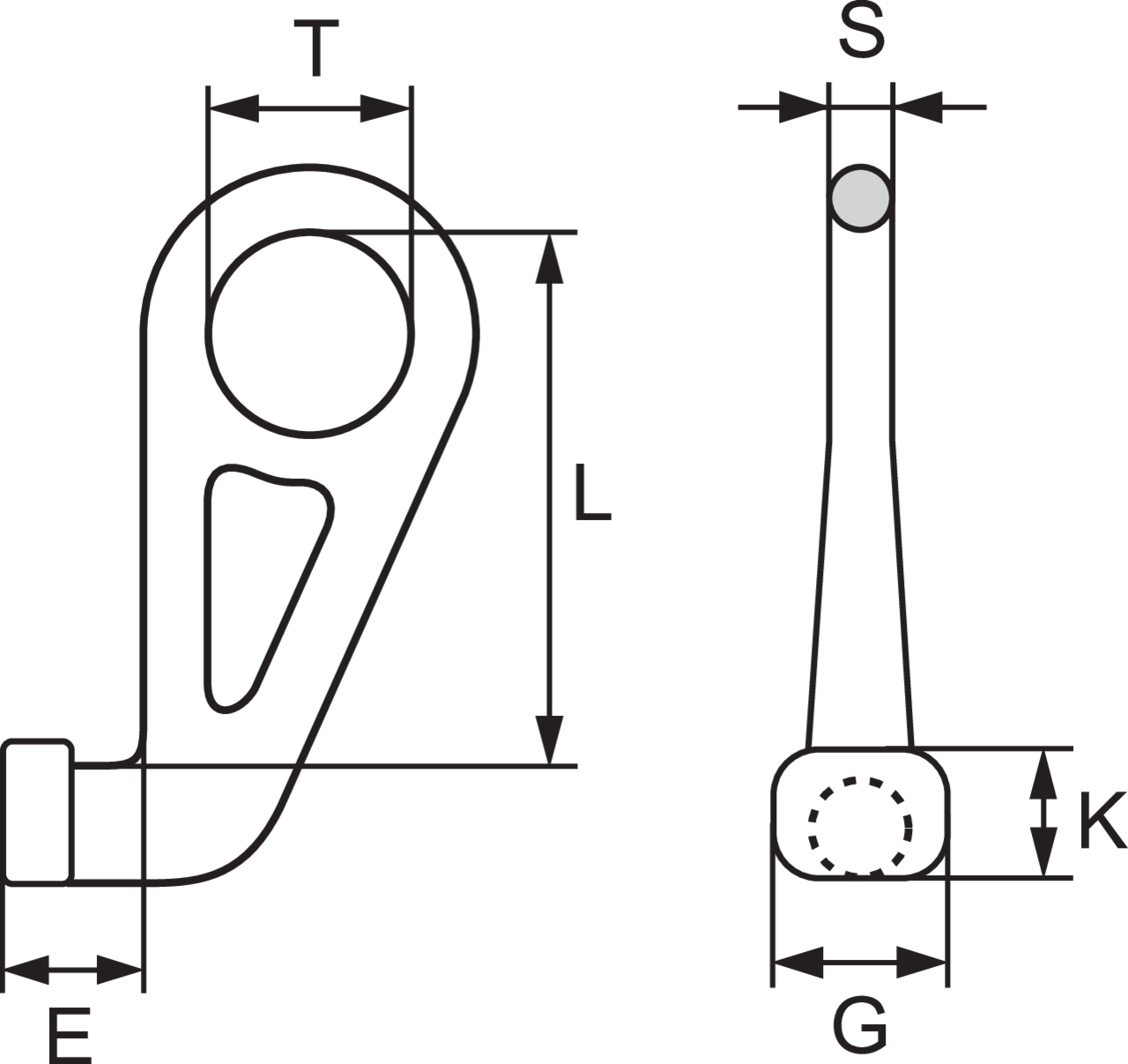

Model E (mm) G (mm) K (mm) L (mm) S (mm) T (mm) Weight
kg
CAD
11.2709050003 CH-3L 12.5 45° left 46 75 47 187 25 70 3.8
11.2709050004 CH-3 12.5 Straight 46 75 47 187 25 70 3.8
11.2709050005 CH-3R 12.5 45° right 46 75 47 187 25 70 3.8

Download CAD
