General: The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not used.

  • Material: Eye of alloy steel grade 8. Welding attatchment of steel St 52.
  • Marking: WLL.
  • Finish: Painted.
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1.
teile_aps_lom2_225mm
aps_2m_micke_lom_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

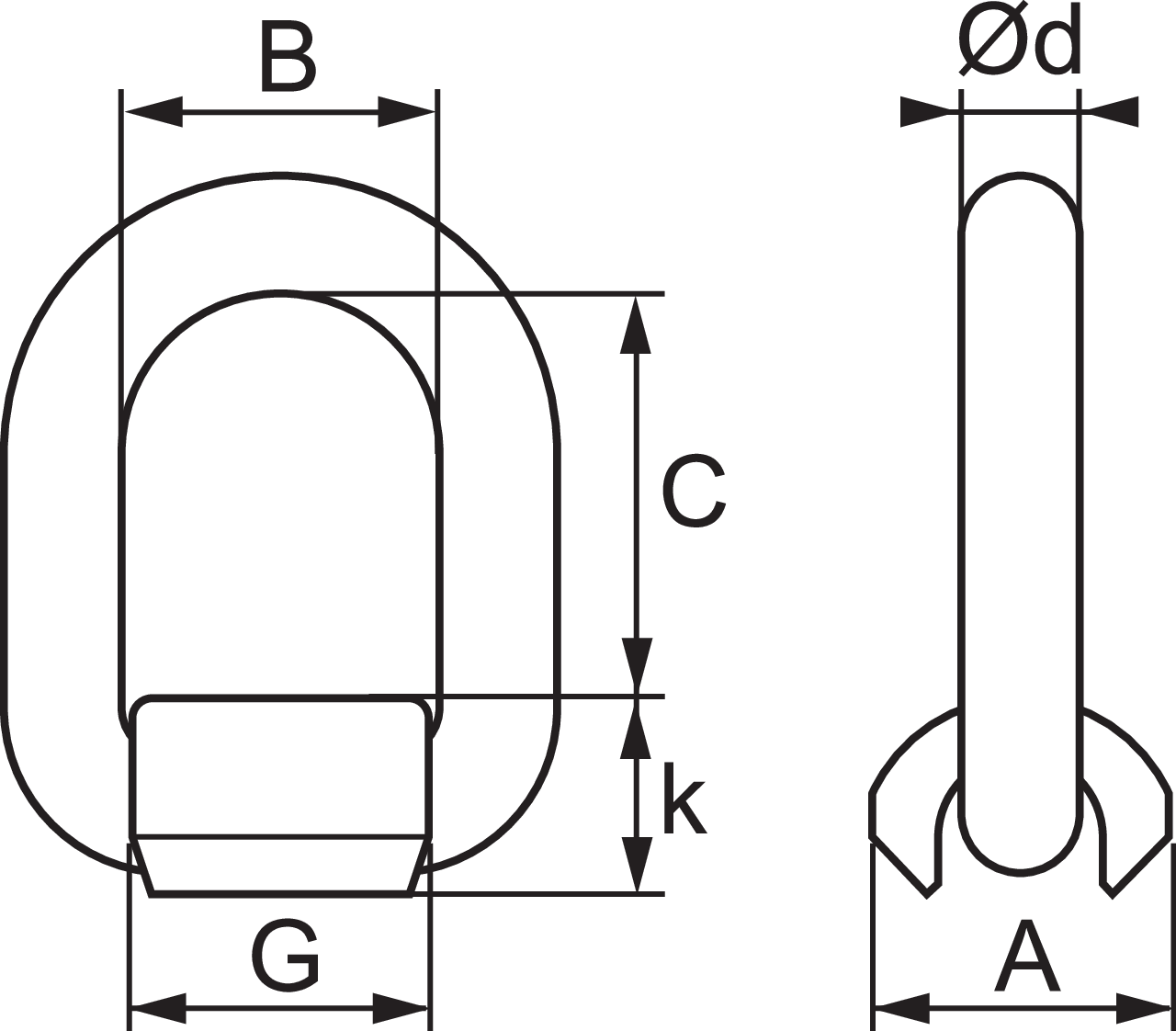

A (mm) B (mm) C (mm) G (mm) d (mm) k (mm) Weight
kg
CAD
11.410381701000 TAPS-1 1 35 38 42 32 13 25 0.32
11.410381702000 TAPS-2 2 37 40 42 34 13 26 0.33
11.410381703000 TAPS-3 3 49 56 54 50 18 36 0.84
11.410381705000 TAPS-5 5 60 67 63 60 22 46 1.6
11.410381708000 TAPS-8 8 75 80 68 68 26 54 2.6
11.410380415000 TAPS-15 15 90 125 120 100 30 60 5.4

Download CAD

Description

Get CAD
Download
  WLL (ton)

TAPS-1 1.12 1.6 1.5
TAPS-2 2 3 2.8
TAPS-3 3.15 4.75 4.25
TAPS-5 5.3 8 7.1
TAPS-8 8 11.8 11.2
TAPS-15 15 22.4 21.2
