Crosby

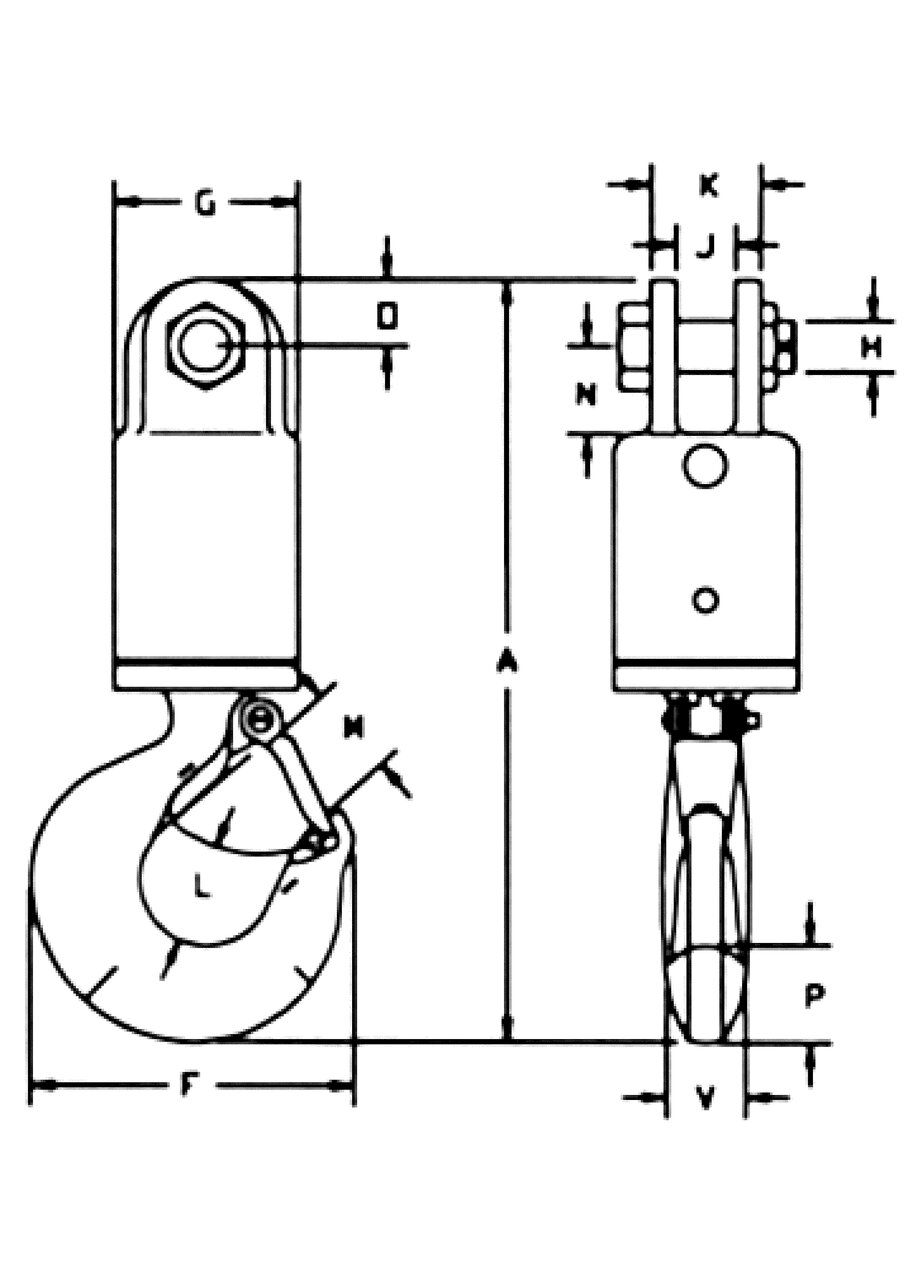

Design: Jaw and hook swivel with tapered roller thrust bearing.
Suitable for frequent rotation under load.

Proof load: 2 x WLL.

  • Marking: WLL.
  • Finish: Painted.
  • Note: Crosby swivels should only be used with the recommended wire rope.
  • Safety factor: 5:1.
Crosby S1_J&H
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Rope Ø (mm) Swivel No A (mm) F (mm) G (mm) H (mm) J (mm) K (mm) L (mm) M (mm) N (mm) O (mm) P (mm) V (mm) Weight
kg
CAD
11.46297011 3 13 3-S-1 291 123 70,0 19,1 22,4 41,1 38,9 35,8 33,3 25,4 36,6 28,4 4.45
11.46297217 5 16 5-S-1 339 160 76,0 22,4 25,4 57,0 49,3 42,9 41,1 28,4 46,0 36,6 7.04
11.46297413 8.5 19 8-S-1 418 192 102 25,4 39,5 71,5 62,5 56,5 54,0 35,1 57,0 41,1 13.3
11.46297618 10 22 10-S-1 502 212 114 38,1 44,5 86,0 66,0 61,0 89,0 44,5 66,0 49,3 21.2
11.46297814 15 26 15-S-1 565 263 127 38,1 44,5 86,0 71,5 81,0 89,0 44,5 76,0 60,5 33.5
11.46298118 25 25-S-1 680 346 152 51,0 51,0 117 87,5 92,0 93,5 60,5 93,0 76,0 64
11.46298216 35 35-S-1 760 357 165 51,0 51,0 117 98,5 95,5 93,5 60,5 116 81,0 100
11.46298314 45 45-S-1 891 392 178 57,0 63,5 127 121 108 102 76,0 129 82,5 114
