WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 8
LHCL_225mm
LHCL_m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
Ton

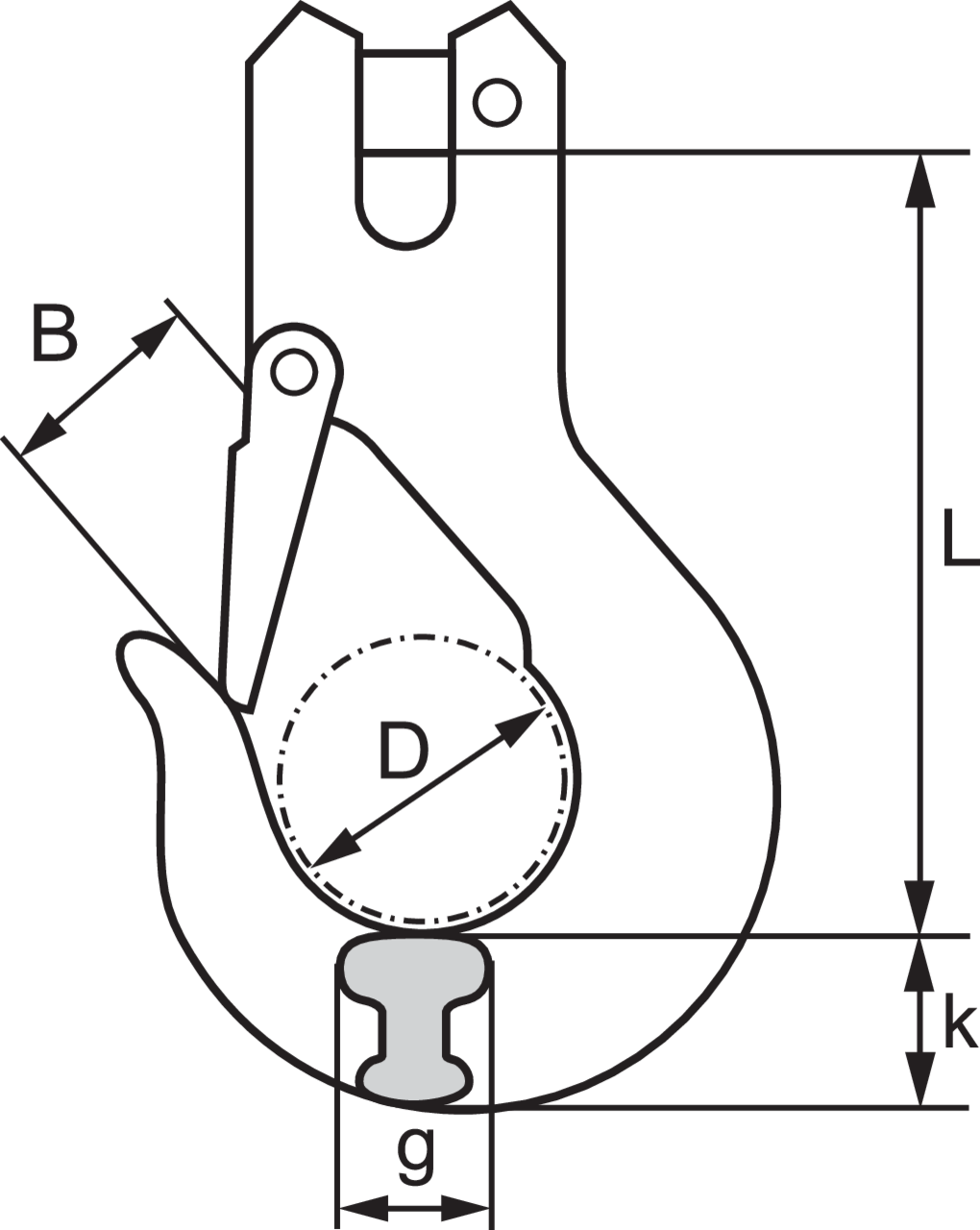

G (mm) For chain gr 8 Ø (mm) B (mm) D (mm) L (mm) k (mm) Weight
kg
CAD
11.108SLR012-06 LHCL-5/6-8 1.12 15 5-6 18 34 74 19 0.28
11.108SLR012-7/8 LHCL-7/8-8 2 20 7-8 29 40 99 21 0.55
11.108SLR012-10 LHCL-10-8 3.15 27 10 32 46 120 25 1.1
11.108SLR012-13 LHCL-13-8 5.3 30 13 42 52 136 35 1.9
11.108SLR012-16 LHCL-16-8 8 36 16 48 68 168 46 3.8
11.108SLR012-20 LHCL-18/20-8 12.5 50 18-20 54 78 195 51 6.2
