General: Stainless steel master link for 3- and 4-leg chainslings.
Standard: DIN 5688-1.

  • Material: AISI 316 TI.
  • Finish: Pickled and blasted.
  • Safety factor: 4:1.
  • Grade: 6
Pewag_VWI_Master_link_assembly
kwb_GT_S_m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
WLL
ton
Usable with sling hooks
up to DIN 15401 No.

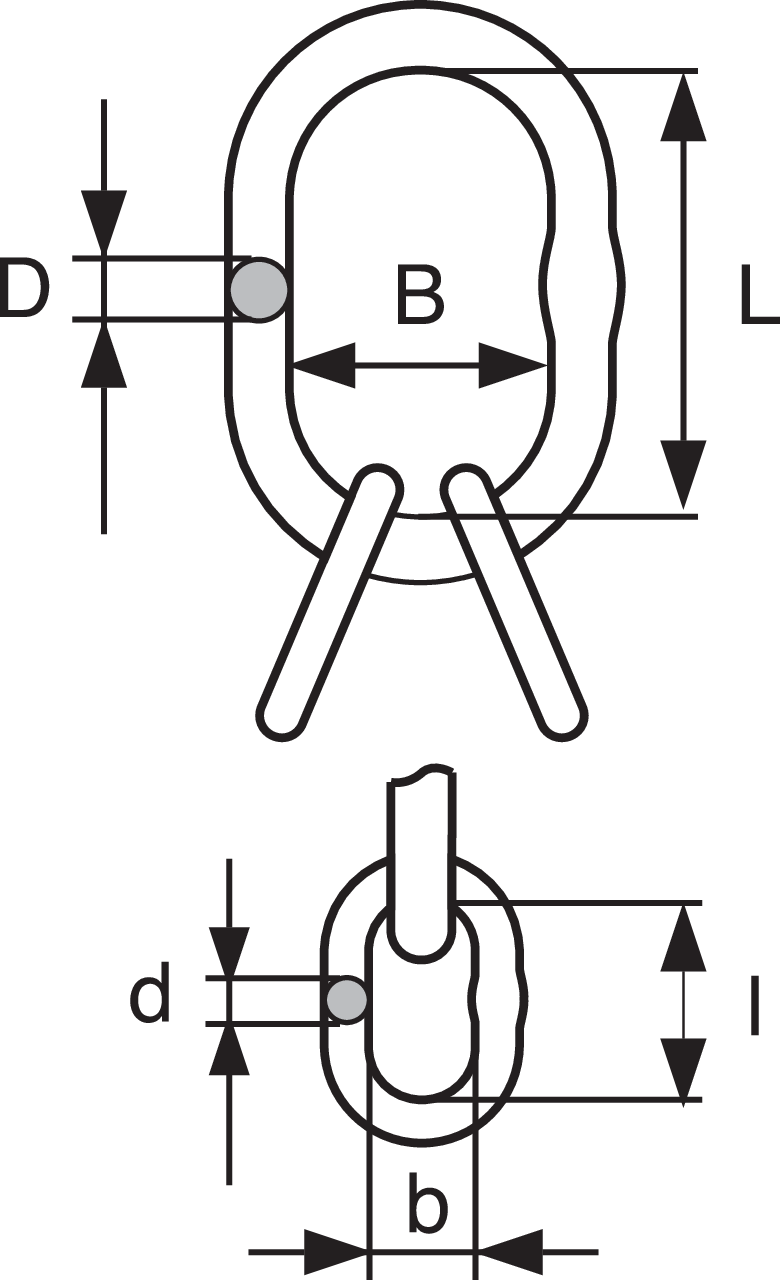

Consisting of D
mm
L
mm
B
mm
d
mm
l
mm
b
mm
Weight
kg
CAD
11.0492128 VWI 4 10 0.84 1,6 AWI 10 + 2 BWI 9 10 80 50 9 44 20 0.28
11.0492129 VWI 5 13 1.3 2,5 AWI 13 + 2 BWI 10 13 110 60 10 44 20 0.52
11.0492130 VWI 6/7 19 2.6 5 AWI 16 + 2 BWI 13 16 110 60 13 54 25 0.91
11.0492131 VWI 8 23 3.35 6 AWI 18 + 2 BWI 16 18 135 75 16 70 34 1.64
11.0492132 VWI 10 27 5.25 8 AWI 22 + 2 BWI 20 23 160 90 20 85 40 3.02
11.0492133 VWI 13 33 8.9 10 AWI 26 + 2 BWI 22 27 180 100 23 115 50 4.78
11.0492134 VWI 16 36 13.2 16 AWI 32 + 2 BWI 26 32 200 110 27 140 65 7.98

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
