Codipro

General: - Designed for loads in rotation
- Axial shackle position
- Double way of screwing
- Available in stainless steel and female versions
- Spring holding shackle in option

  • Safety factor: 4:1.
  • Grade: 8
Product Picture 1
Product Picture 3
Product Picture 4
Select a row from the table below, then click the add to quote button

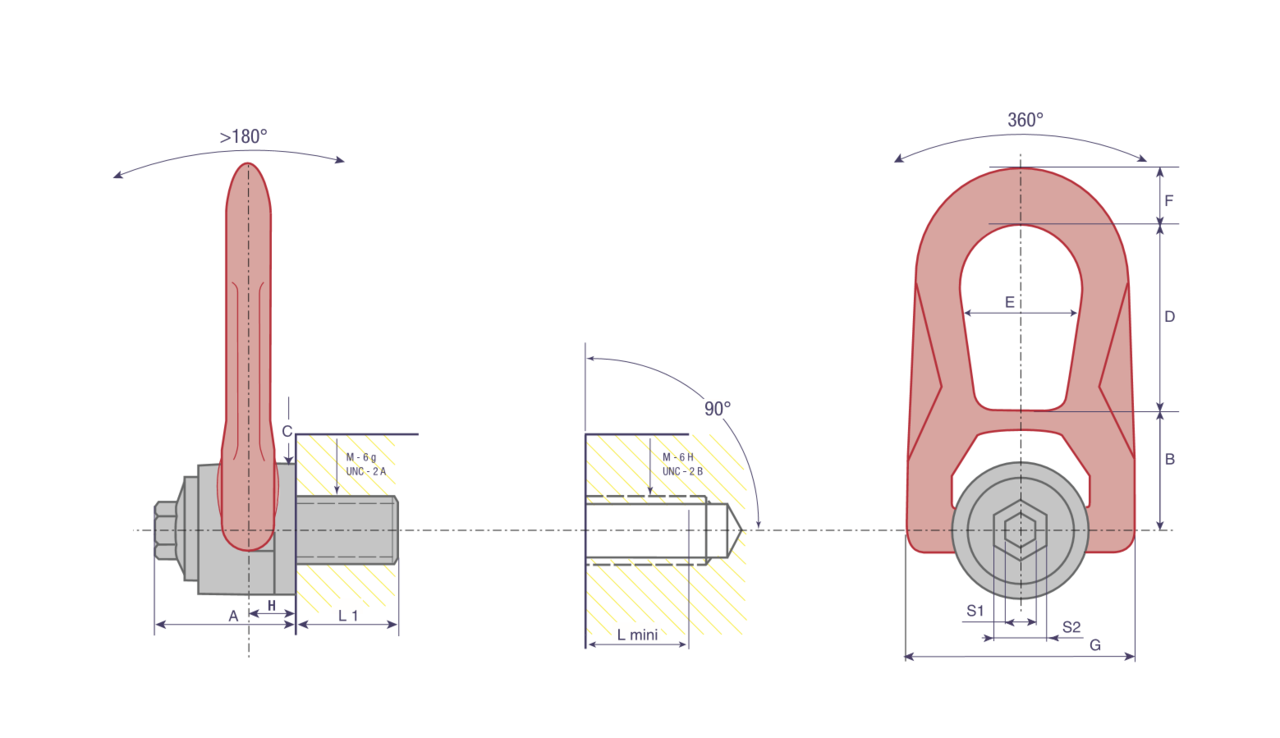

Part Code WLL Thread WLL
t
X
mm
Torque
Nm
L1 standard S
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
11.42DSR M 12 1 M 12 (x1.75) 8 15 21 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 18 2 M 18 (x2.5) 8 70 27 20 45 42 45 54 38 17 76 13 0.9
11.42DSR M 22 3 M 22 (x2.5) 14 120 33 24 62 55 60 83 55 25 117 19 2.6
11.42DSR M 24 4 M 24 (x3) 14 160 36 24 62 55 60 83 55 25 117 19 2.6
11.42DSR M 27 5 M 27 (x3) 14 200 40 24 62 55 60 83 55 25 117 19 2.7
11.42DSR M 10 M 10 (x1.50) 0,6 8 10 17 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 6 M 6 (x1) 0,1 5 4 15 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 8 M 8 (x1.25) 0,3 8 6 14 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 14 M 14 (x2) 1,3 8 30 23 20 45 42 45 54 38 17 76 13 0.9
11.42DSR M 16 M 16 (x2) 1,6 8 50 27 20 45 42 45 54 38 17 76 13 0.9
11.42DSR M 20 M 20 (x2.5) 2,5 8 100 30 20 45 42 45 54 38 17 76 13 0.9
11.42DSR M 30 M 30 (x3.5) 6,3 14 250 45 24 62 55 60 83 55 25 117 19 2.7
Other variants of the fixing axis available upon request. Also available in UNC-thread

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
