• Not for lifting
  • Material: Mild steel, grade 3
  • Finish: Galvanized.
  • Warning: Not for lifting.

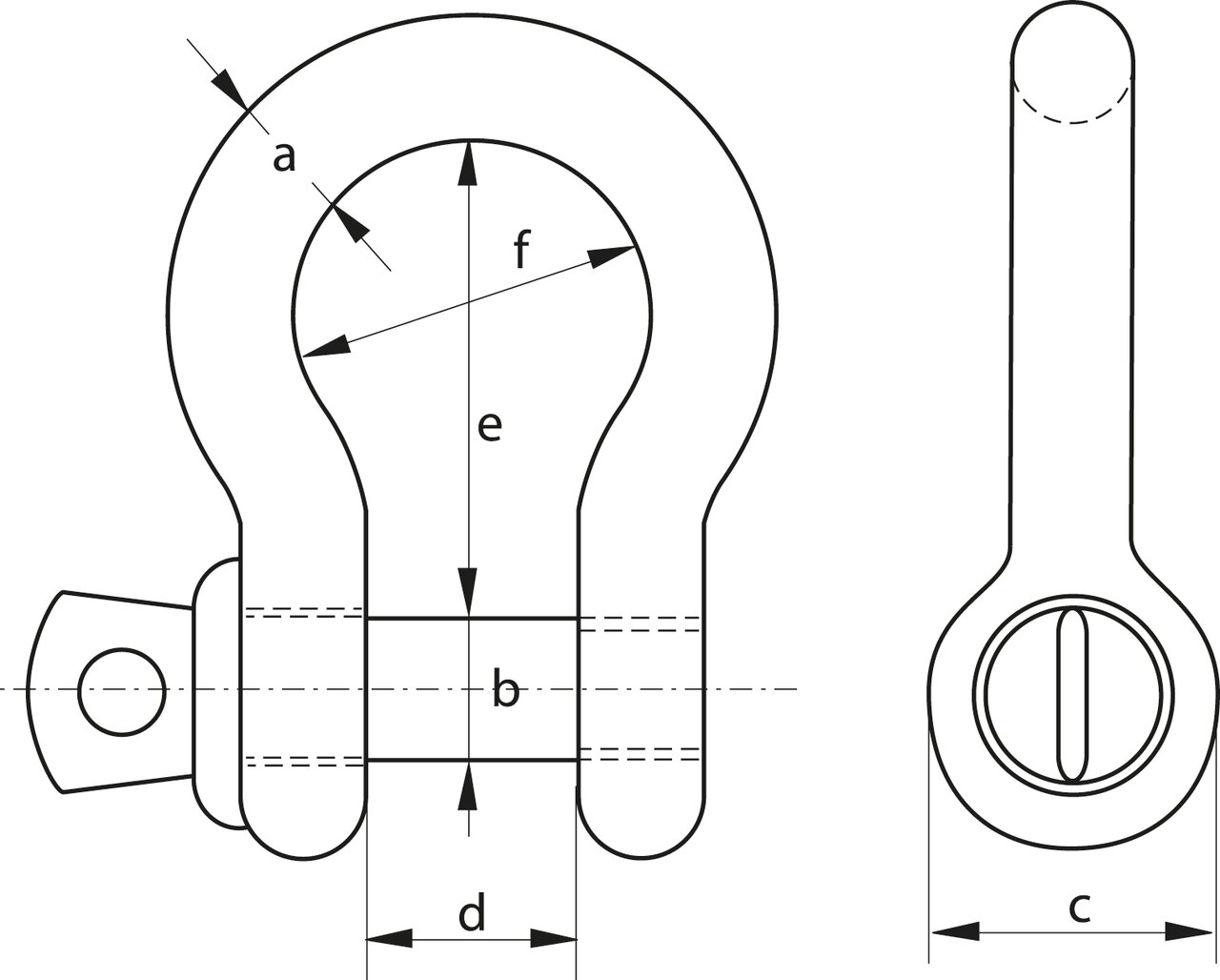

Select a row from the table below, then click the add to quote button
Part Code a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
Weight
kg/100pc
CAD
11.55MH010205 5 5 10 10 20 15 1.4
11.55MH010206 6 6 12 12 20 18 2.4
11.55MH010208 8 8 16 16 32 24 5.4
11.55MH010210 10 10 20 20 40 30 10.6
11.55MH010212 11 11 22 22 44 33 16.4
11.55MH010216 12 12 24 24 48 36 19.4
11.55MH010219 14 14 28 28 56 42 44



Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
