• Not for lifting

General: Sheave block, single-spindled

  • Material: Spindle made from nylon. Frame cast alloy.
Sheave_single

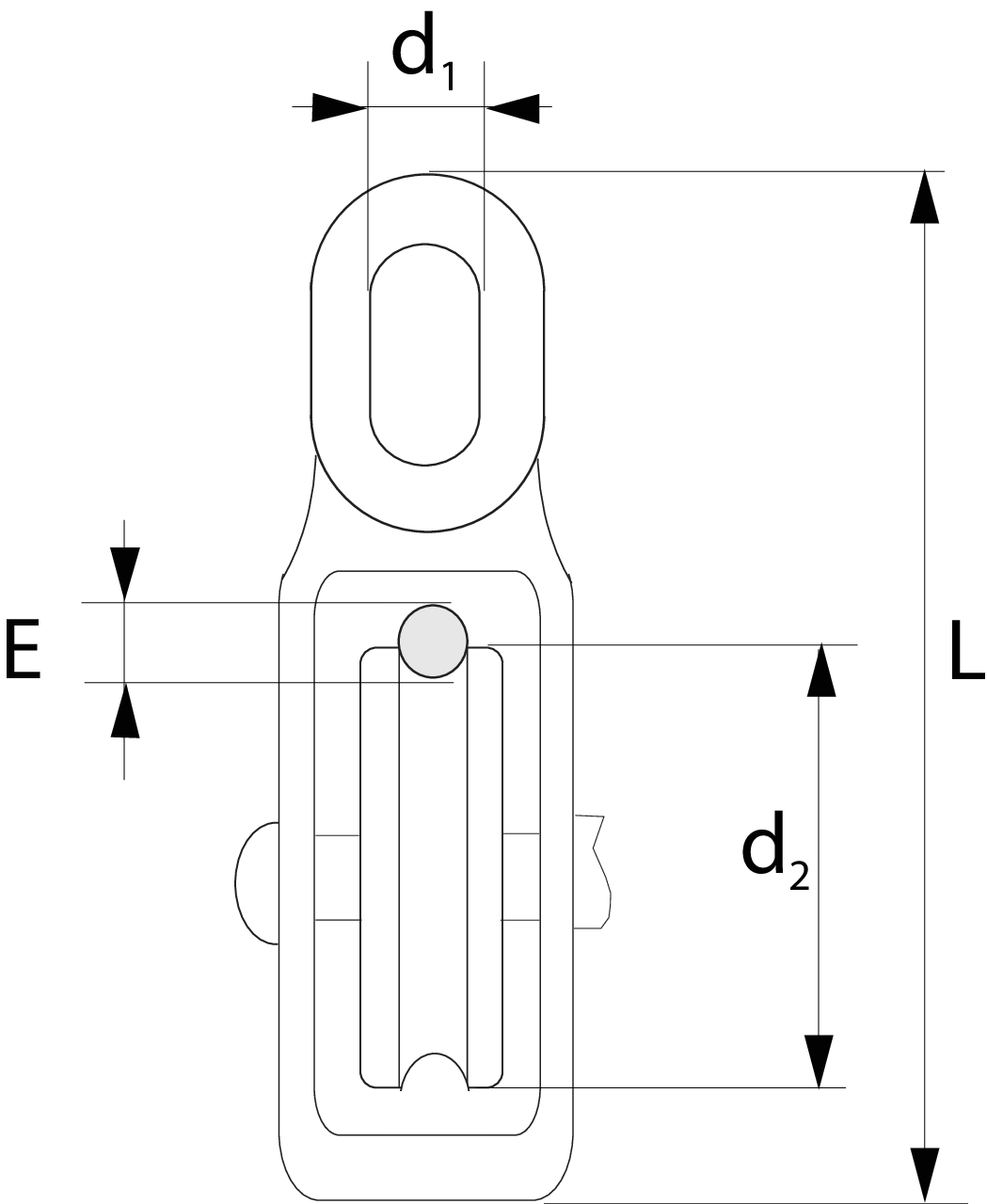

Sheave_single_measure
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
D2 (mm) d1 (mm) L (mm) CAD
10.99MH070715 5 15 10 50
10.99MH070720 6 20 11 60
10.99MH070725 7 25 12 70
10.99MH070730 8 30 13 80
10.99MH070740 9 40 14 93
10.99MH070750 12 50 16 115
