General: Chain for lifting and lashing.

  • Material: Alloy steel grade 8.
  • Marking: According to standard, One link per m chain is marked with grade.
  • Finish: Painted.
  • Standard: EN 818-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 8
Kl_black_new_225mm
KLM_e_225mm
Select a row from the table below, then click the add to quote button

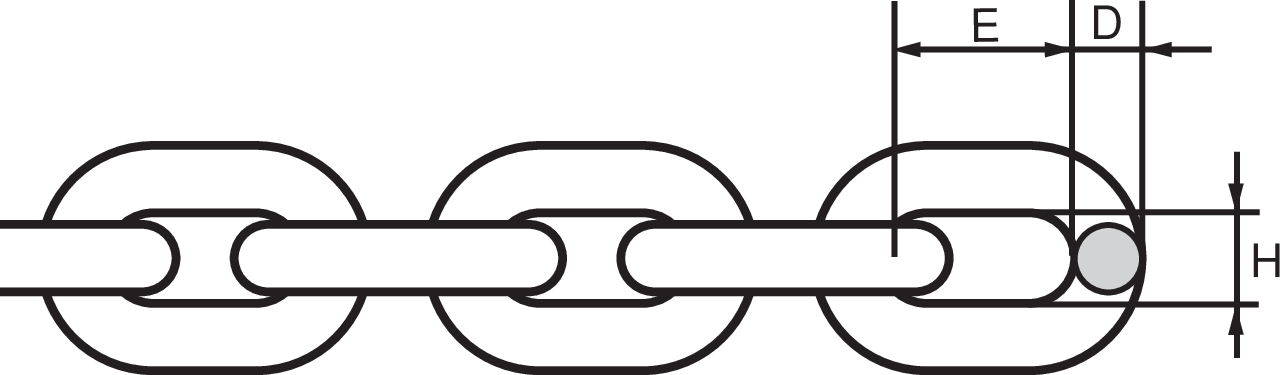

Part Code Code Diameter
mm
WLL
ton
LC
kN
Min. breakingforce
kN
E
mm
H
mm
Weight
kg/m
CAD
11.648182060P KL-6-8 6 1.12 22 45.2 18 7,8 0.8
11.648182080P KL-8-8 8 2 40 80.4 24 10,4 1.4
11.648182100P KL-10-8 10 3.15 63 126 30 13 2.2
11.648182130P KL-13-8 13 5.3 100 212 39 16,9 3.8
11.648182160P KL-16-8 16 8 160 322 48 20,8 5.7
11.648182200P KL-20-8 20 12.5 250 503 60 26 9
11.648182220P KL-22-8 22 15 300 608 66 28,6 11
11.648182260P KL-26-8 26 21.2 849 78 33,8 15
* Lifting applications for safety factor 4:1
** load lashing capacity (LC).
